54749247 Ingersoll Rand Screw Air Compressor Genuine Parts UP-5-15-22 Oil Separator

No.54749247

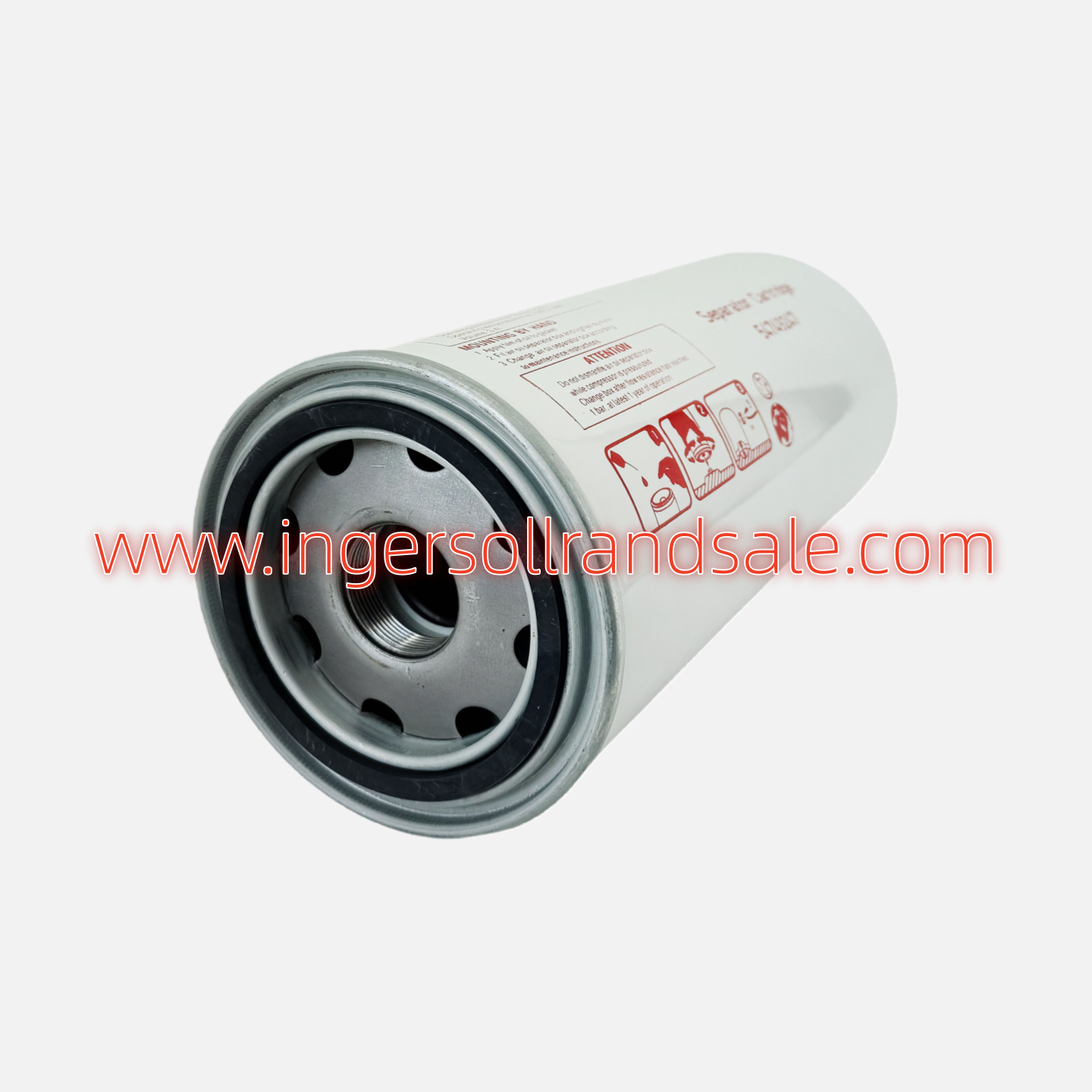

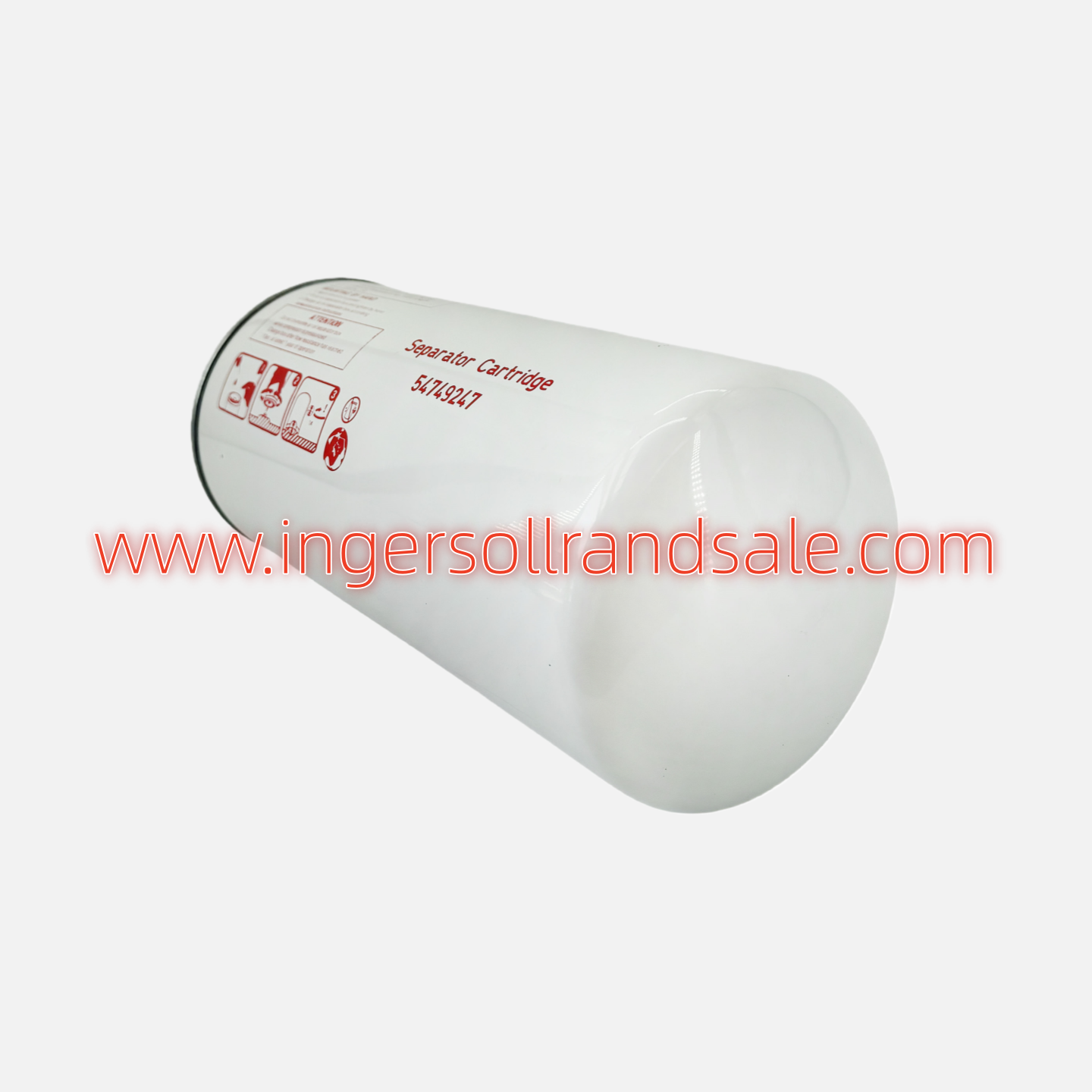

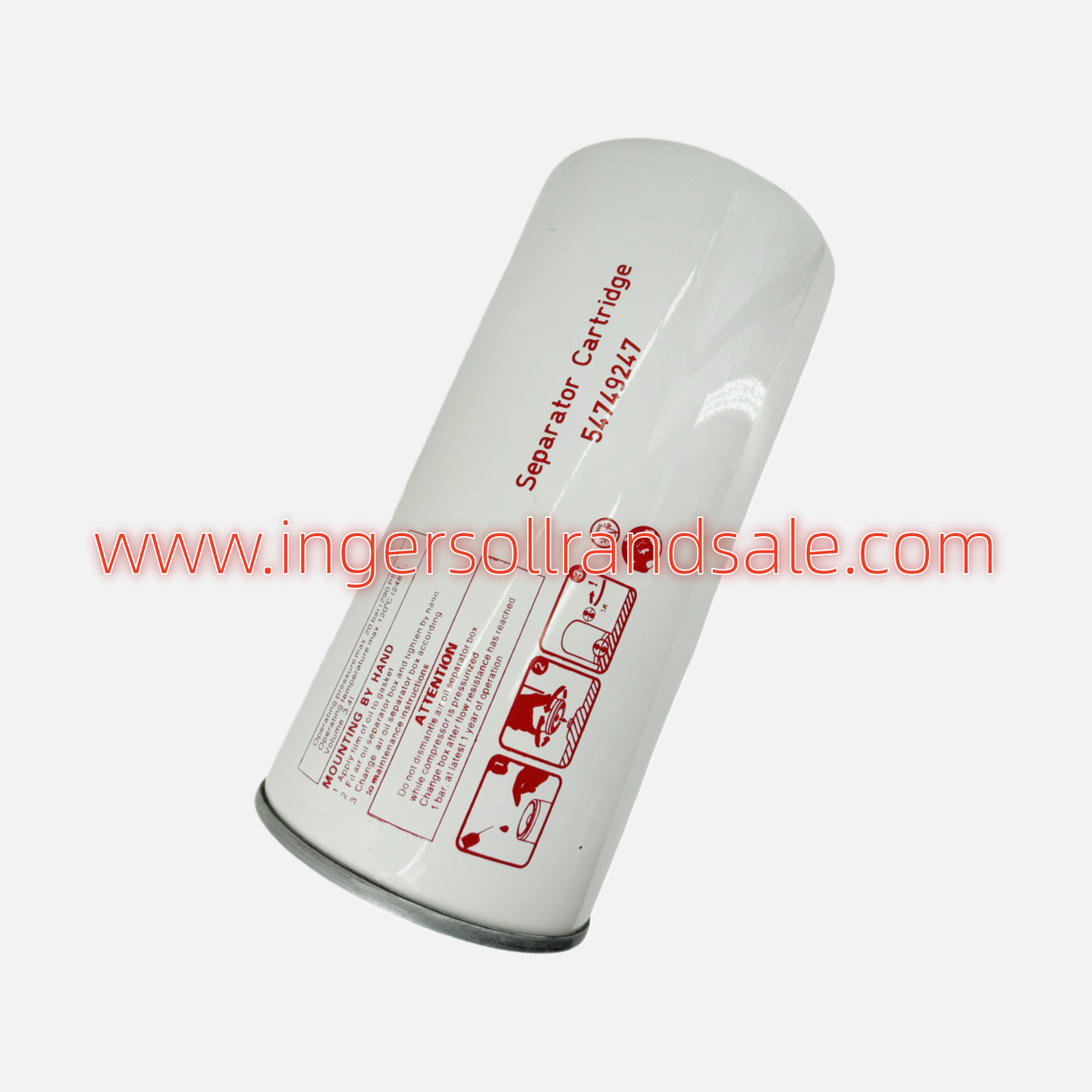

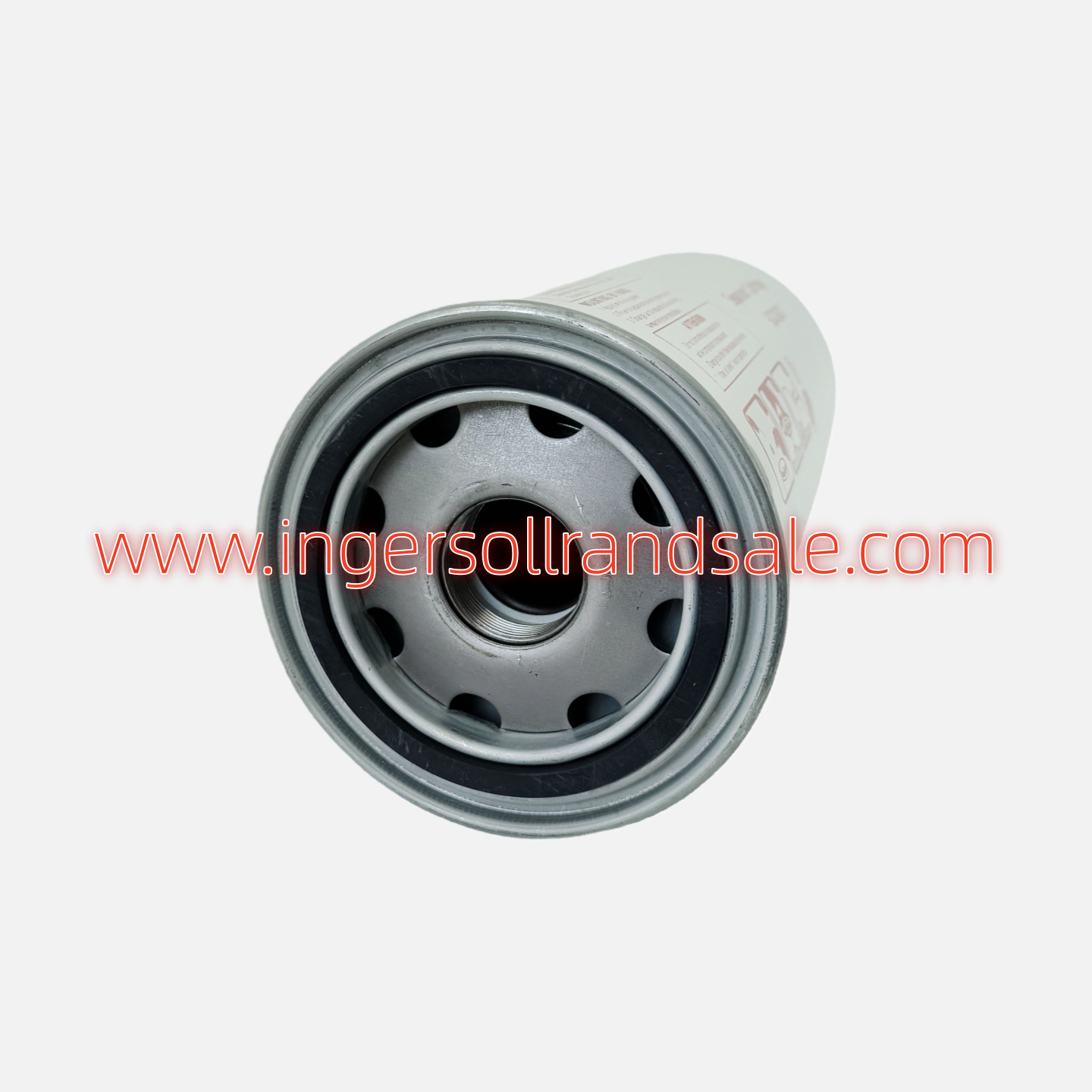

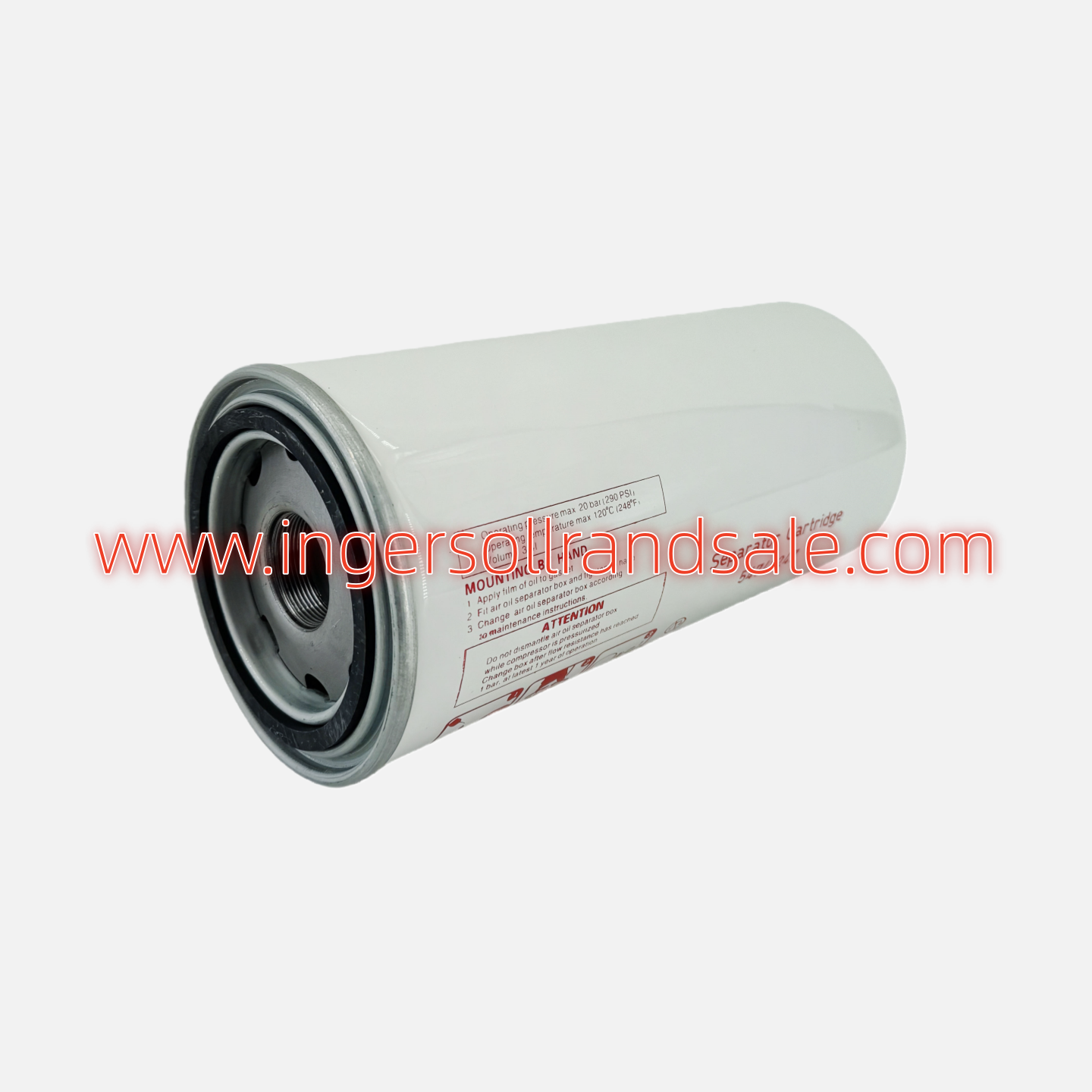

Oil separator element for Ingersoll Rand air compressors (UP-5-15-22). Coalescing separation of oil from compressed air. Part number 54749247.
$270.00
  • 54749247 Ingersoll Rand Screw Air Compressor Genuine Parts UP-5-15-22 Oil Separator
  • 54749247 Ingersoll Rand Screw Air Compressor Genuine Parts UP-5-15-22 Oil Separator
  • 54749247 Ingersoll Rand Screw Air Compressor Genuine Parts UP-5-15-22 Oil Separator
  • 54749247 Ingersoll Rand Screw Air Compressor Genuine Parts UP-5-15-22 Oil Separator
  • 54749247 Ingersoll Rand Screw Air Compressor Genuine Parts UP-5-15-22 Oil Separator

Description

What it does

The oil separator is where the compressor stops being an oil pump. Air leaving the airend carries oil as an aerosol; the element coalesces those droplets on glass-fibre media and lets them drain back to the sump through the scavenge line. Carryover after the element is measured in parts per million, so a failing element shows up as oil in the line rather than as a visible leak.

Signs it needs replacing

  • Pressure differential across the separator climbing, or tank pressure slow to build.
  • Oil pushed out through the air line - wet spots at the first trap or filter.
  • The element collapsed inward or its end caps separated, which usually points to a stuck minimum pressure valve.

Fitment and specifications

  • Part number: 54749247
  • Type: Oil separator element
  • Fitment reference: UP-5-15-22
  • Service life: 3,000-4,000 running hours, changed together with the air filter, oil filter and oil charge
  • Application: Ingersoll Rand air compressor
  • HS code: 8414909090

Before you order

Check the minimum pressure valve and the scavenge line orifice before blaming the element: a blocked return line produces exactly the same oil-carryover symptom, and a new element will not fix it. Match the element by part number and by height, since two elements can share a diameter.
