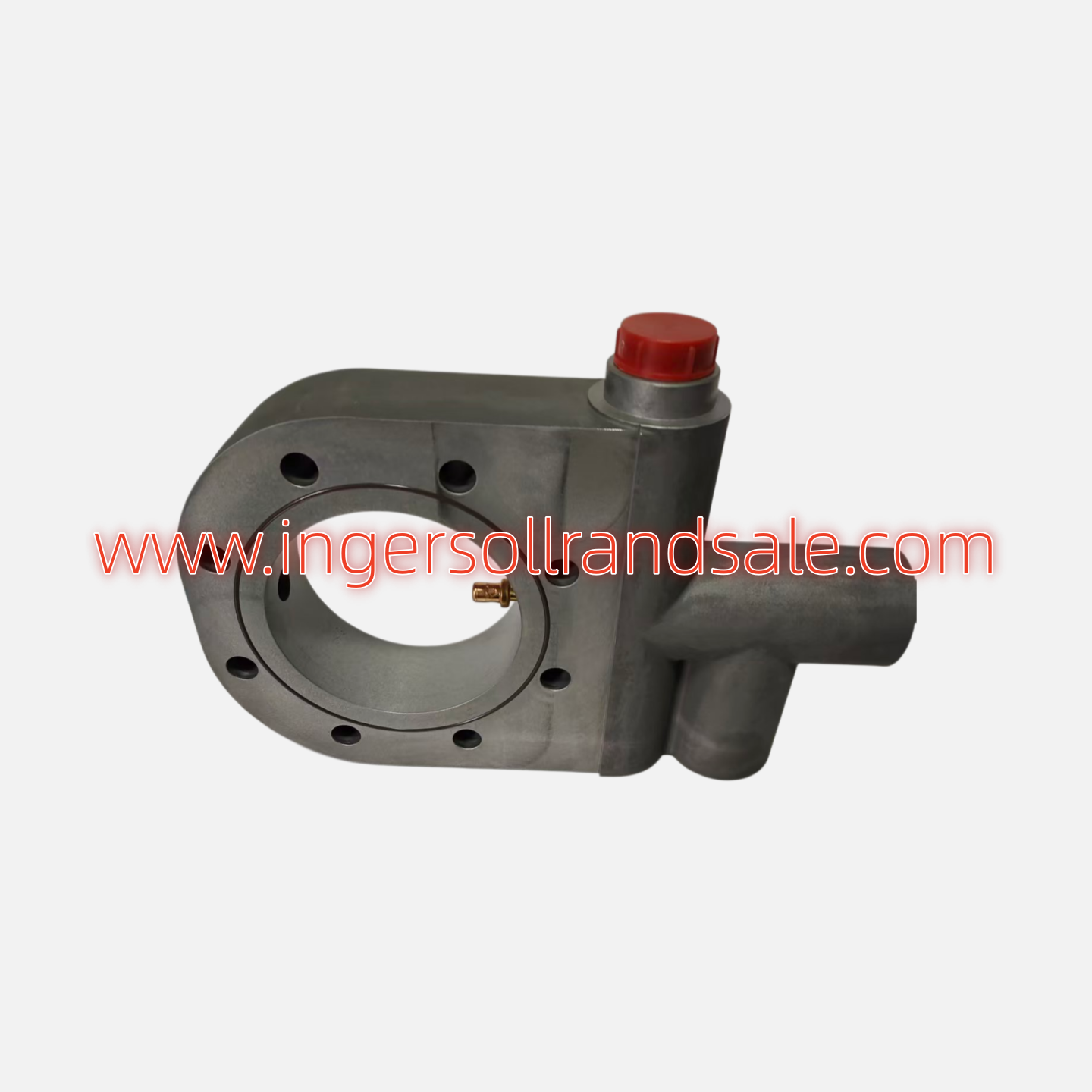

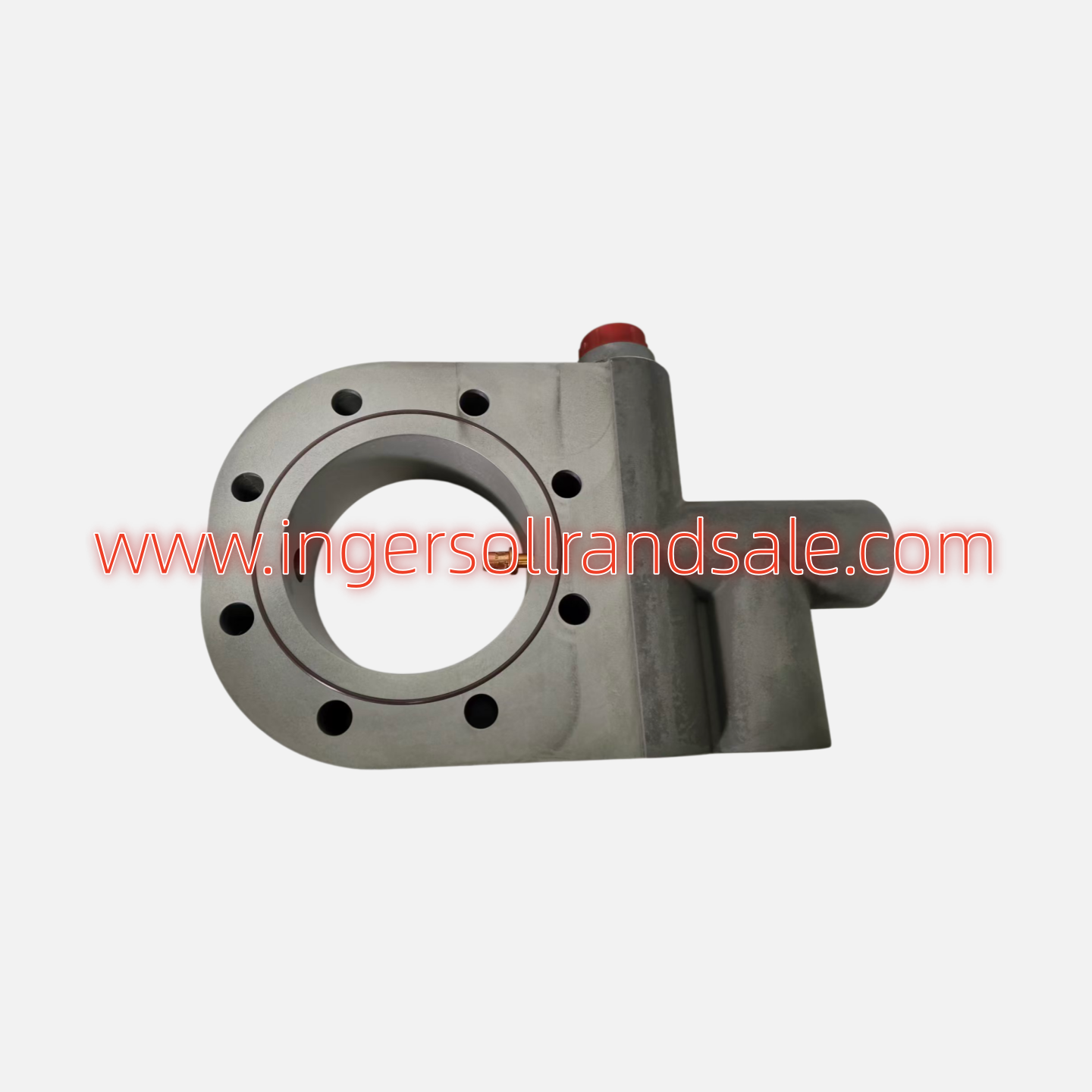

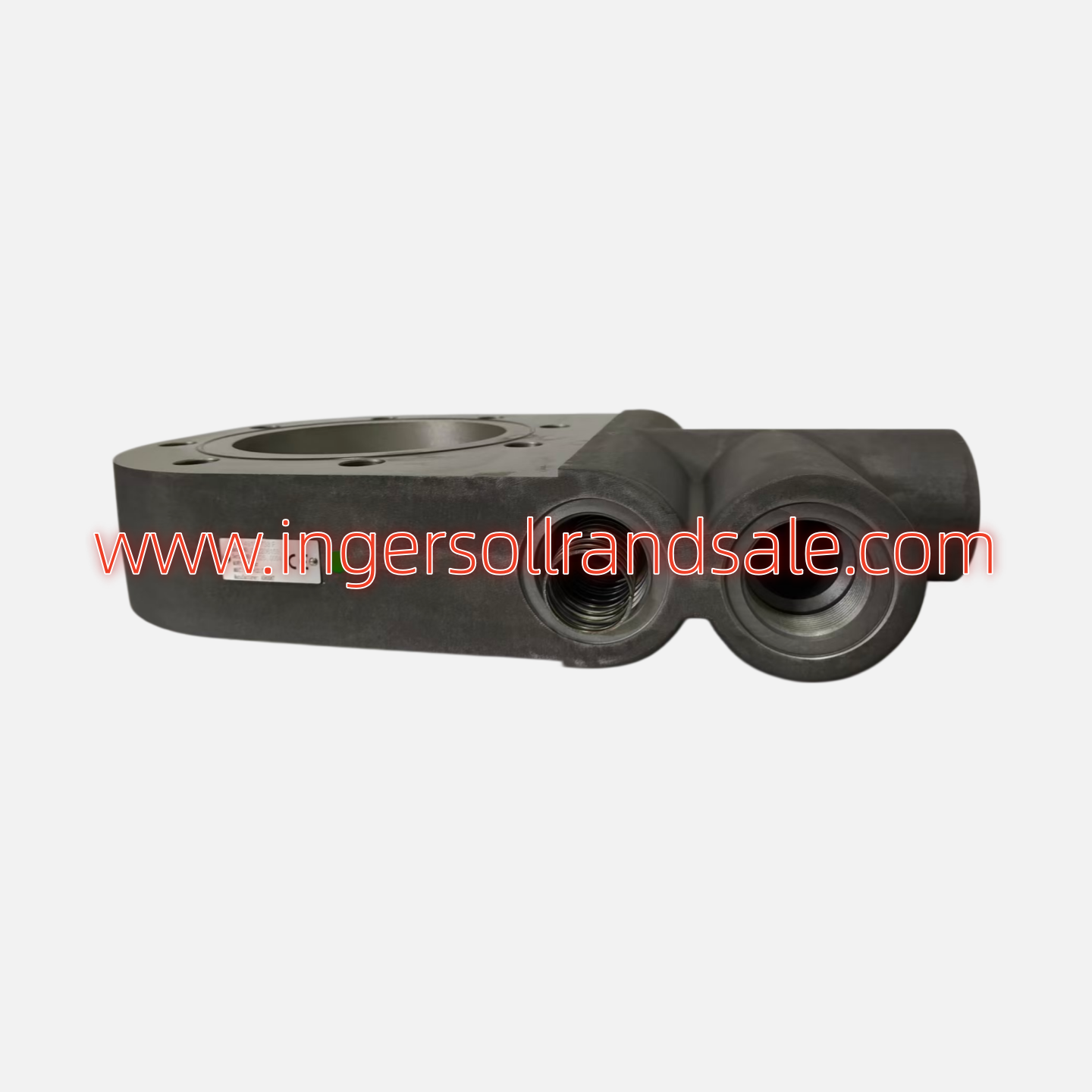

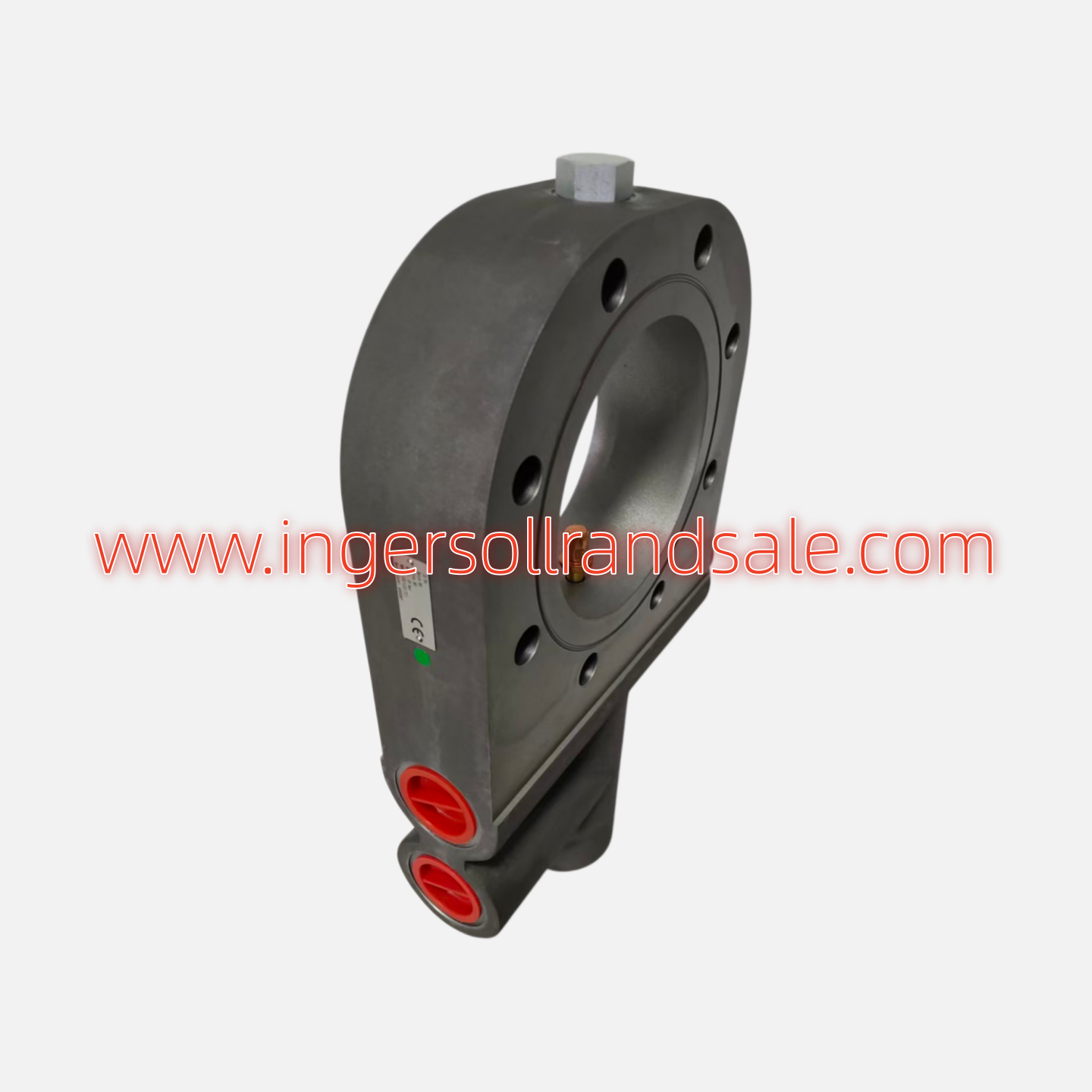

49119738 Ingersoll Rand Screw Air Compressor Genuine Parts RS200 Thermal Valve

No.49119738
49119738 Ingersoll Rand Screw Air Compressor Genuine Parts RS200 Thermal Valve
$750.00
  • 49119738 Ingersoll Rand Screw Air Compressor Genuine Parts RS200 Thermal Valve
  • 49119738 Ingersoll Rand Screw Air Compressor Genuine Parts RS200 Thermal Valve
  • 49119738 Ingersoll Rand Screw Air Compressor Genuine Parts RS200 Thermal Valve
  • 49119738 Ingersoll Rand Screw Air Compressor Genuine Parts RS200 Thermal Valve
  • 49119738 Ingersoll Rand Screw Air Compressor Genuine Parts RS200 Thermal Valve

Description

① Part information

Part No: 49119738
Brand: Ingersoll Rand (genuine)
Origin: China
Weight: 18 kg
Dimensions: 45 x 36 x 12 cm
HS Code: 8414909090
Fits: Ingersoll Rand RS200 / RS200i screw compressors
Lead time: 7 working days (in stock)

② What it does

The thermal valve decides where the lube oil goes. On a cold start the oil is thick and cannot pass the cooler efficiently, so the valve sends it straight back to the airend and lets it warm up quickly. As oil temperature rises, the thermostatic element inside the valve expands and progressively diverts oil through the oil cooler. At normal operating temperature the valve is fully diverted and the cooler carries the whole flow. This is why a healthy thermal valve keeps discharge temperature stable at both cold start and full load, without any electronic control.

③ Signs it needs replacing

The failure is almost always in the element, not the body, and it goes one of two ways. Stuck in bypass: oil never reaches the cooler, discharge temperature climbs under load until the unit trips on high temperature. Stuck open: oil passes through the cooler all the time, the unit runs cold, condensate collects in the sump and the oil turns milky. A third pattern is drift — the valve still moves but opens late or early, so temperature swings between hot and cold across the working day.

④ Replacement interval

Replace on condition, not on a fixed schedule. Check the valve at 8,000 hours, and again any time the symptoms above appear.

⑤ How to replace

  • Isolate the machine and let the oil cool before opening the valve. Oil at discharge temperature will scald.
  • Note the port positions and flow direction before removal. Reinstalling reversed stops oil reaching the cooler.
  • Fit a new gasket and O-rings. Do not reuse old seals, and do not substitute sealant for a gasket.
  • Clean both sealing faces. Grit left on the face causes a leak that looks like a failed valve.
  • After restart, run unloaded for a few minutes and watch the oil temperature rise steadily. A valve fitted backwards shows up immediately as temperature running away.

⑥ Genuine vs alternative

Genuine only. No aftermarket equivalent is offered for this part.

⑦ Ordering notes

Don't want to replace the whole assembly? Two lower-cost routes. If the body and spring are sound, the cartridge 23752447 (0.2 kg, 15 working days) does the same job at a fraction of the freight. If the seals are leaking as well, the service kit 47610367001 (cartridge plus seals, 60 working days) covers the full repair.

49119738 itself is the complete assembly — body, cartridge, spring and seals — at 18 kg, in stock and shipping in 7 working days. Order it when the body is scored, cracked, or the spring has lost its tension; a new cartridge will not hold in a worn body.
