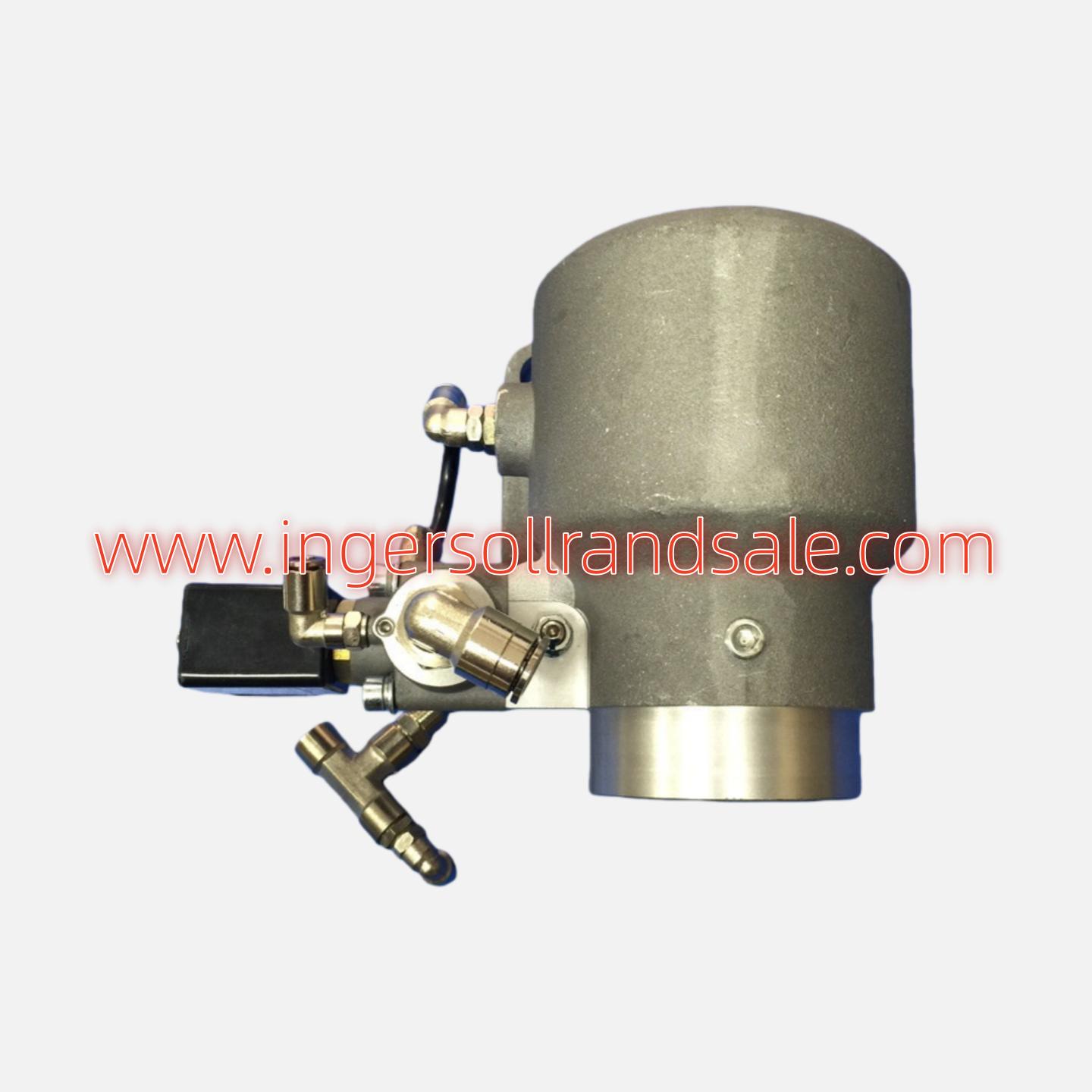

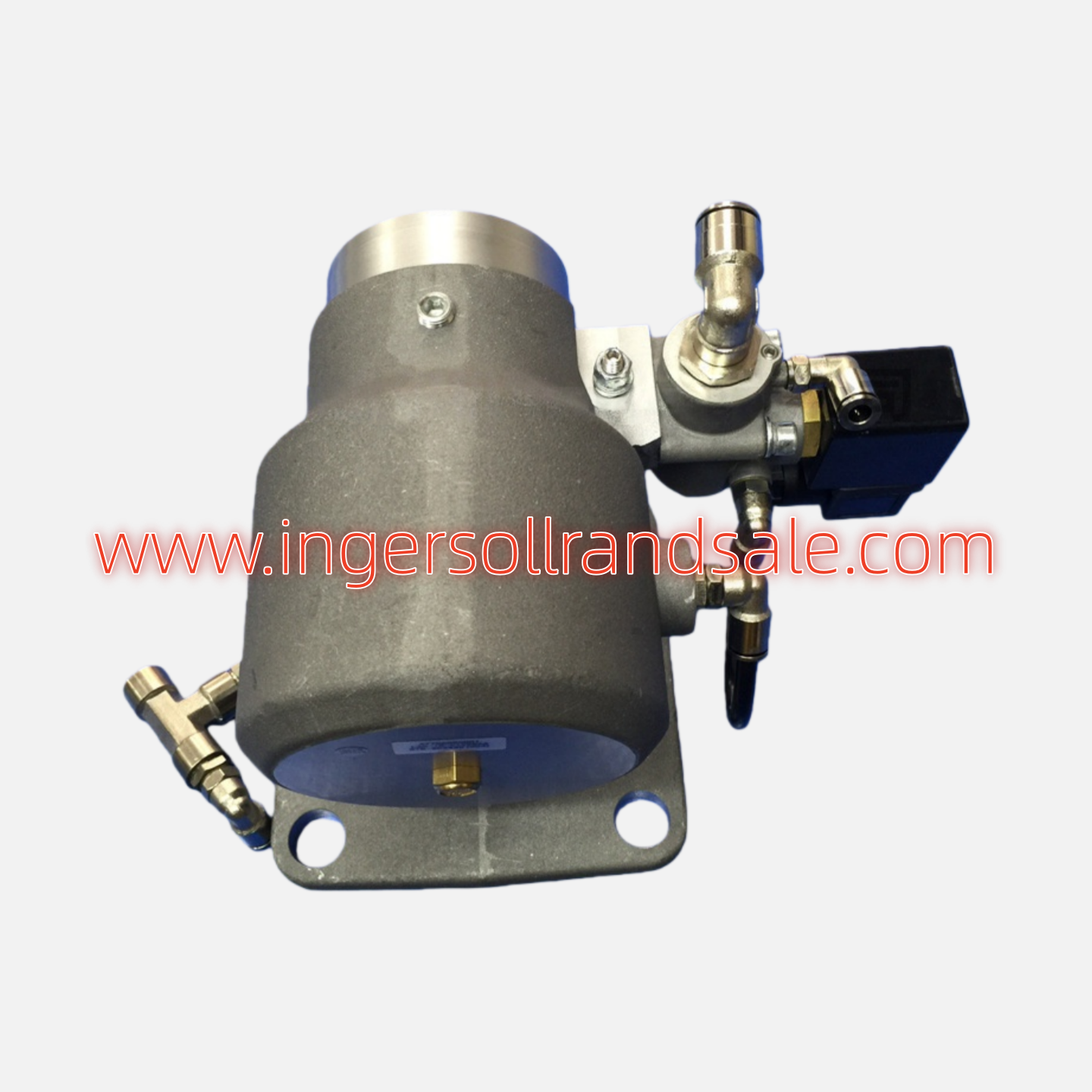

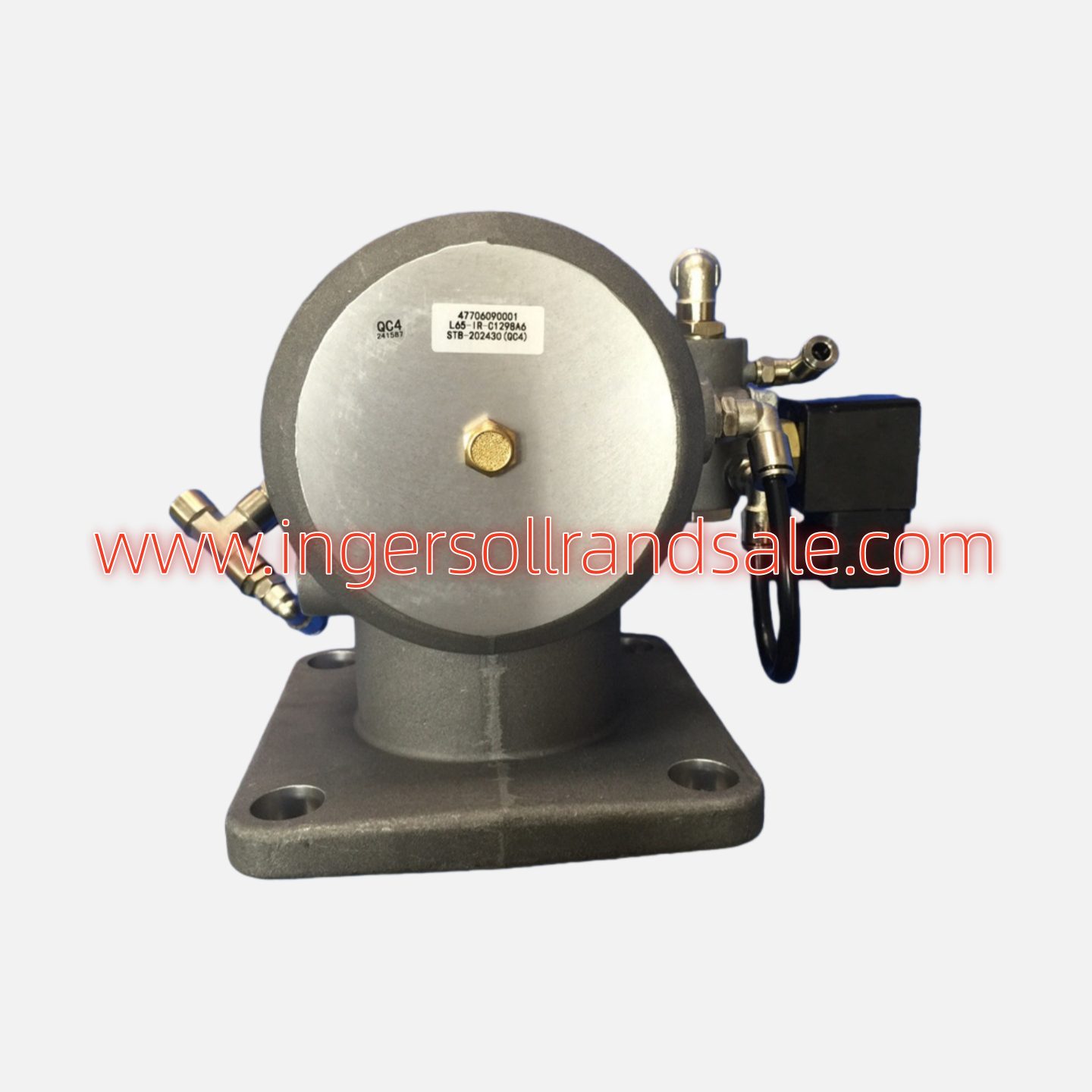

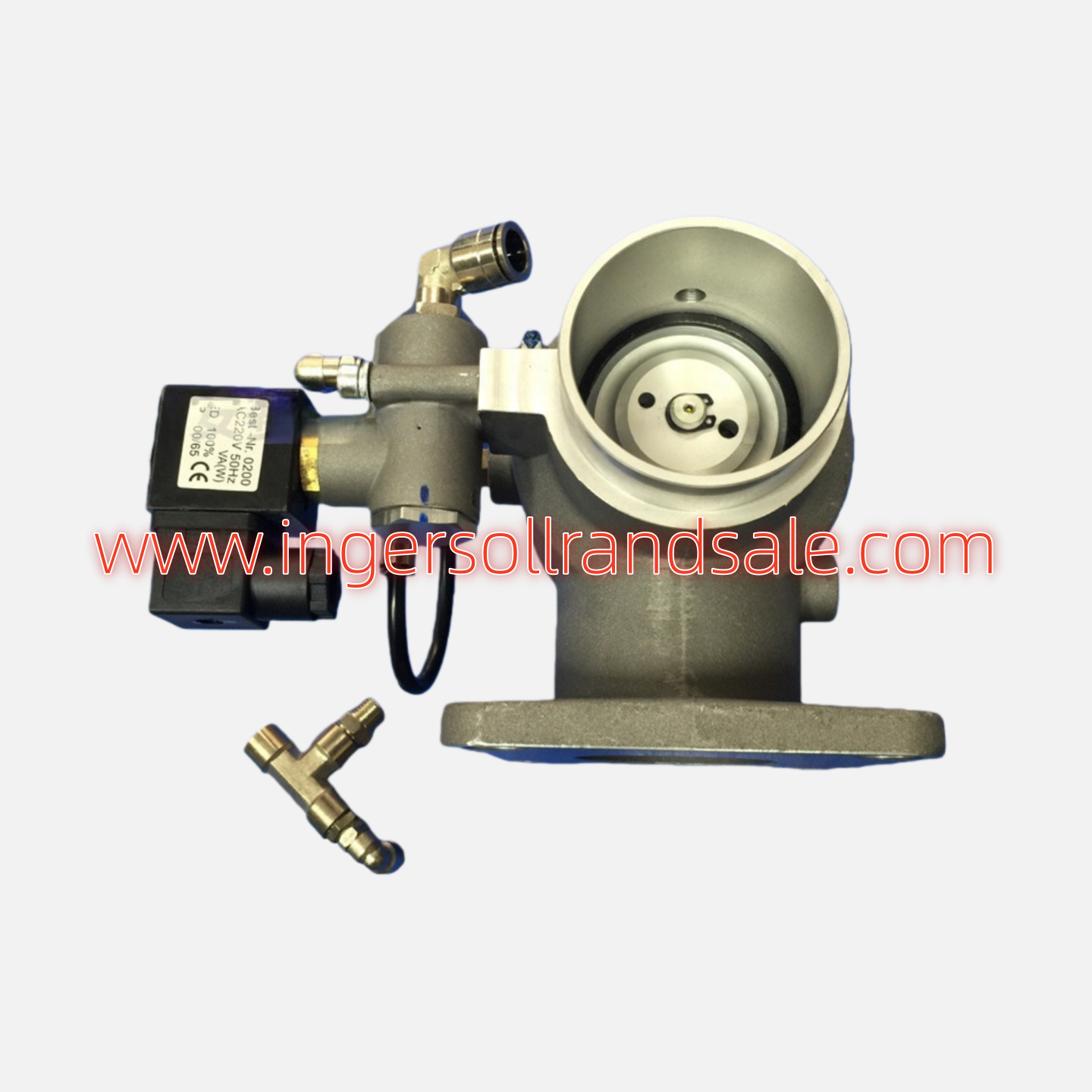

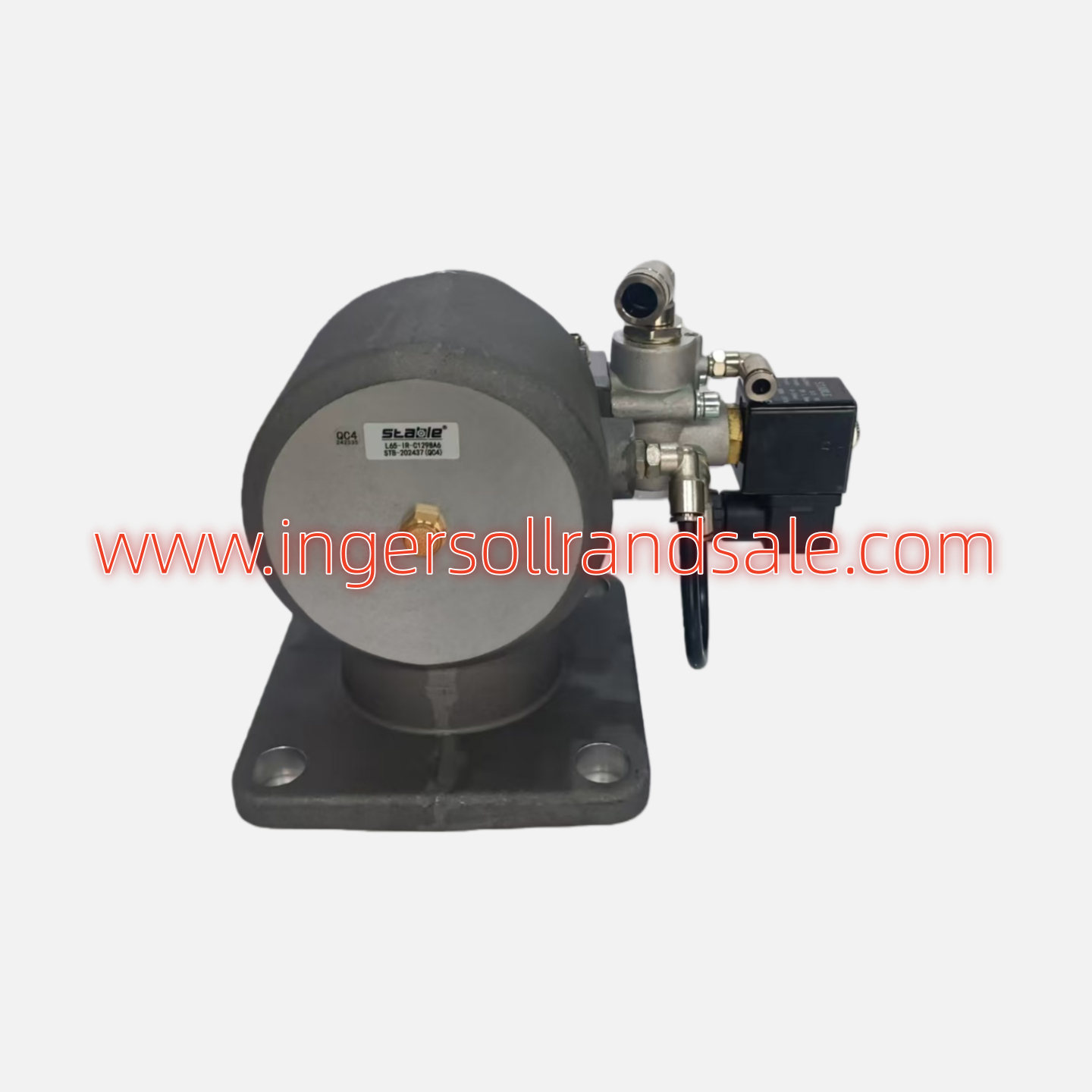

47706090001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve

No.47706090001
Ingersoll Rand inlet valve 47706090001 for GDK 15-22 kW screw compressors. 3.5 kg, in stock at USD 139. Repair kit 47723683001 available.
$139.00
  • 47706090001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve
  • 47706090001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve
  • 47706090001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve
  • 47706090001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve
  • 47706090001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve

Description

Part No 47706090001
Brand Ingersoll Rand
Origin China
Weight 3.5 kg
Dimensions 25 × 20 × 18 cm
HS Code 8414909090
Fits GDK 15-22 kW
Lead time In stock

What it does

The inlet valve is the throttle on the intake side of the airend. The controller reads discharge pressure and strokes this valve to hold a band rather than let the machine run flat out. It also closes on shutdown, which is what lets the machine start without load.

On a 15-22 kW machine the valve is compact — 3.5 kg — so it is practical to replace the whole unit rather than rebuild it on site.

Signs it needs replacing

  • Pressure will not reach the set point, or takes much longer to get there
  • Rapid load and unload cycling with steady air demand
  • The valve stays open at shutdown, so the machine restarts loaded
  • Air audible at the shaft seal with the machine running unloaded
  • Oil mist at the intake after shutdown, a sign the valve is not seating

Replacement interval

Replace on condition. Seat and seal wear follow the number of cycles rather than the hour meter, so a machine on variable demand wears the valve faster than one running flat out. Inspect at 8,000 hours.

How to replace

  • Isolate and lock off, depressurise the sump, and vent the control air.
  • Mark the control air lines before removal. Two lines crossed gives a valve that moves the wrong way.
  • Clean the mounting face and fit a new gasket. A reused gasket leaks past the seat and the fault returns.
  • Check the servo cylinder and its seal while the valve is off — a tired cylinder mimics a worn valve.
  • Cycle through load and unload, then confirm full closure on stop.

Genuine vs alternative

Genuine Ingersoll Rand valve. On a 15-22 kW machine the labour to change the valve is a significant share of the cost, so a rebuild kit is worth considering where the body and seat are still sound.

Genuine Ingersoll Rand: USD 139

Repair kit: 47723683001

Ordering notes

Fits GDK 15-22 kW screw compressors. Send the machine model and serial before ordering so we can confirm the port arrangement on your build.

Weight 3.5 kg, packed 25 × 20 × 18 cm. In stock.
