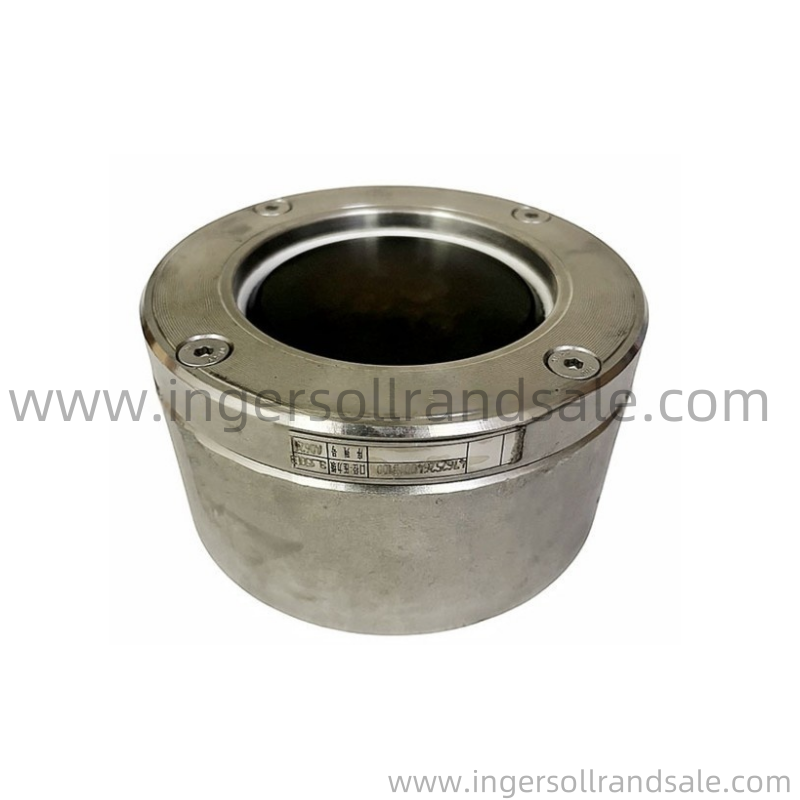

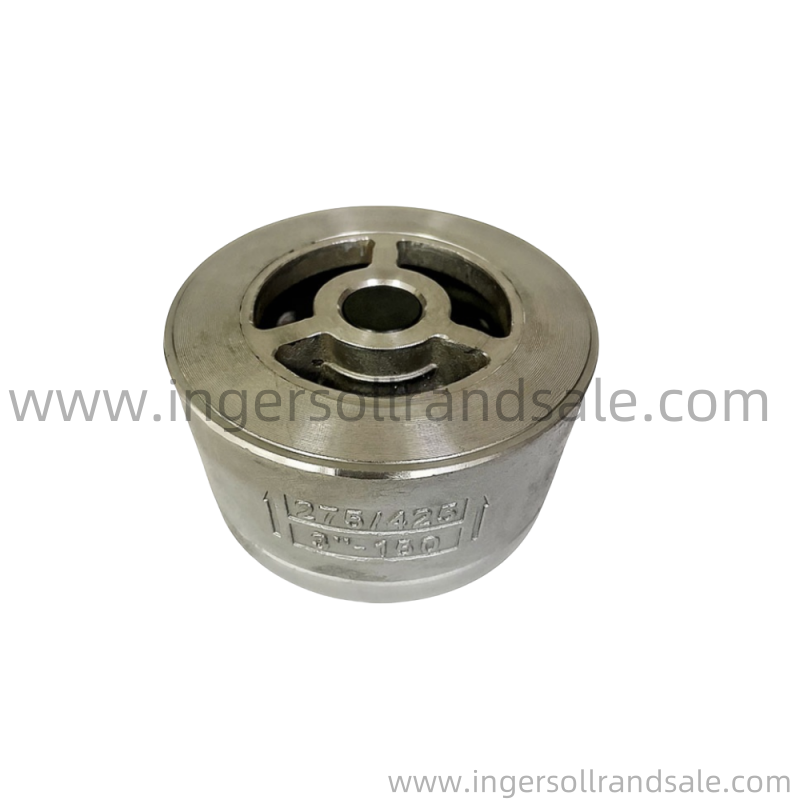

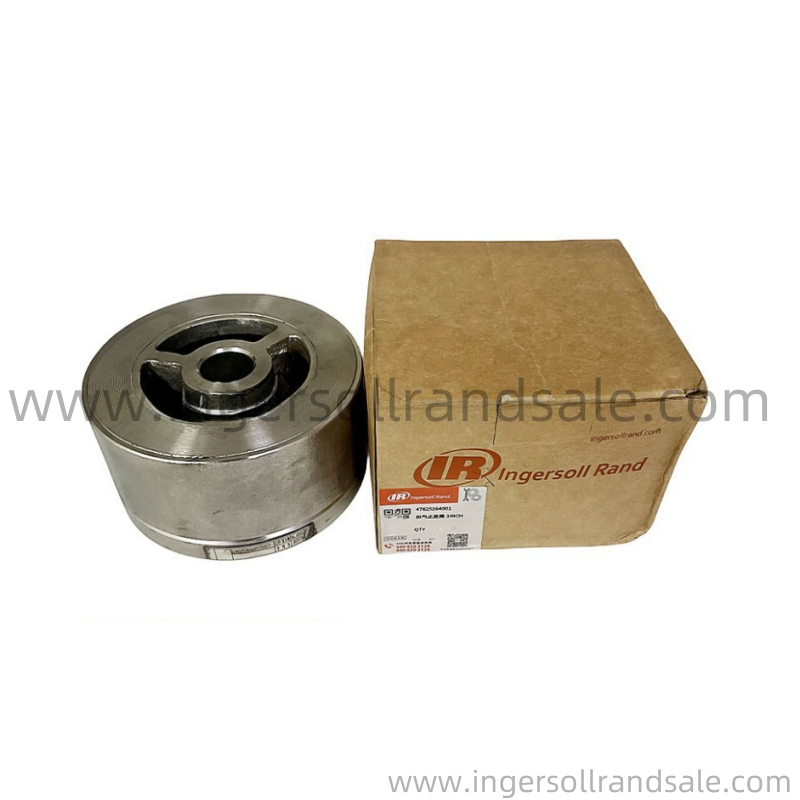

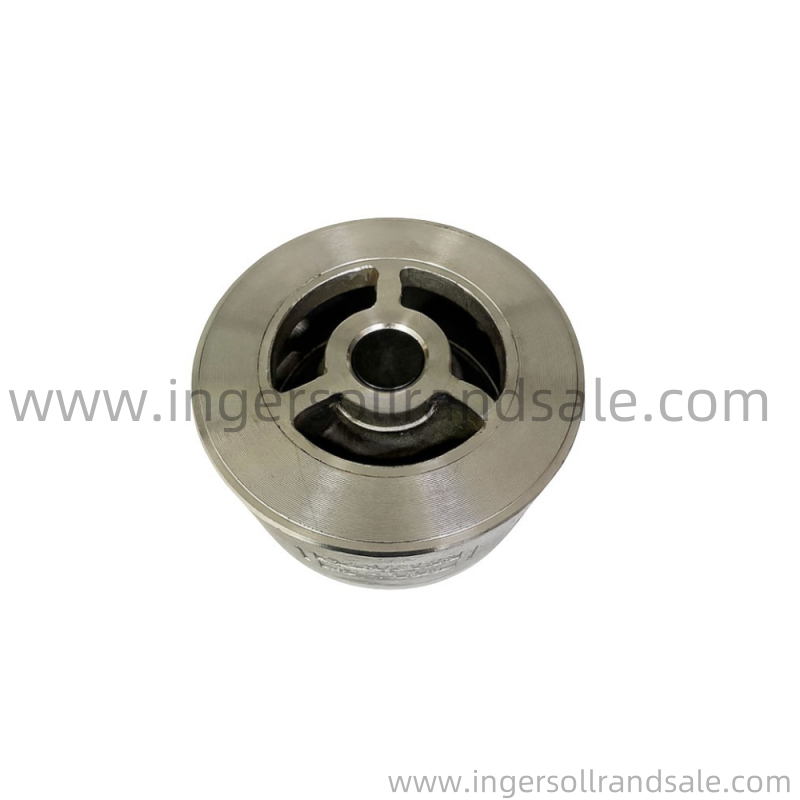

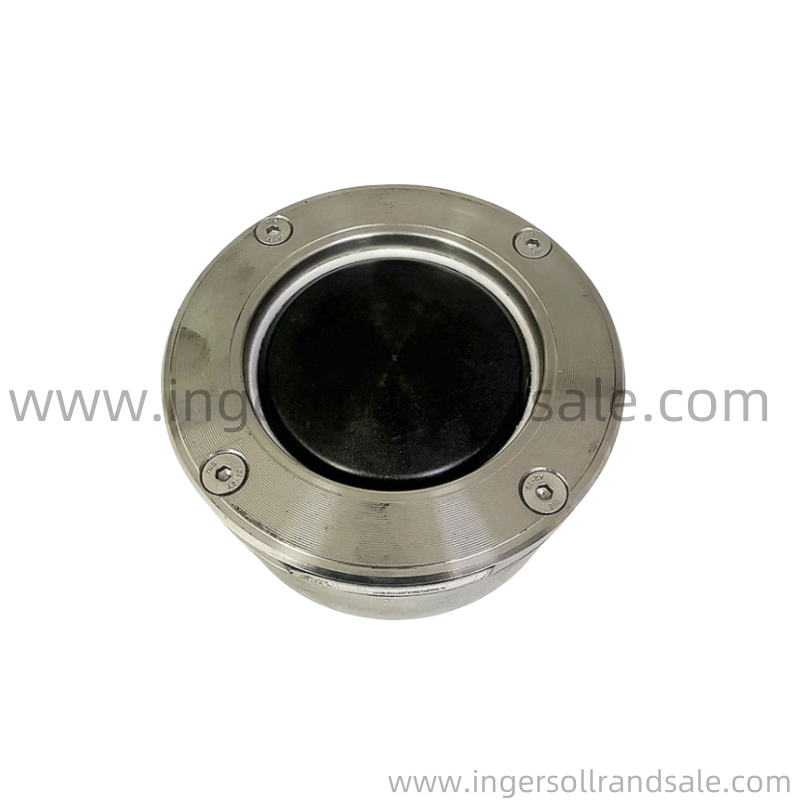

This check valve is a one-way element: it lets compressed air leave the airend or the separator and blocks it from coming back. On shutdown it closes within a fraction of a second, so tank pressure cannot drive the airend backwards and oil cannot be pushed into the inlet tract.
Listed under part number 47625264001. Compare the seat face and the connection style with the old valve. A check valve that seals in the wrong direction will hold pressure on the wrong side of the machine.
