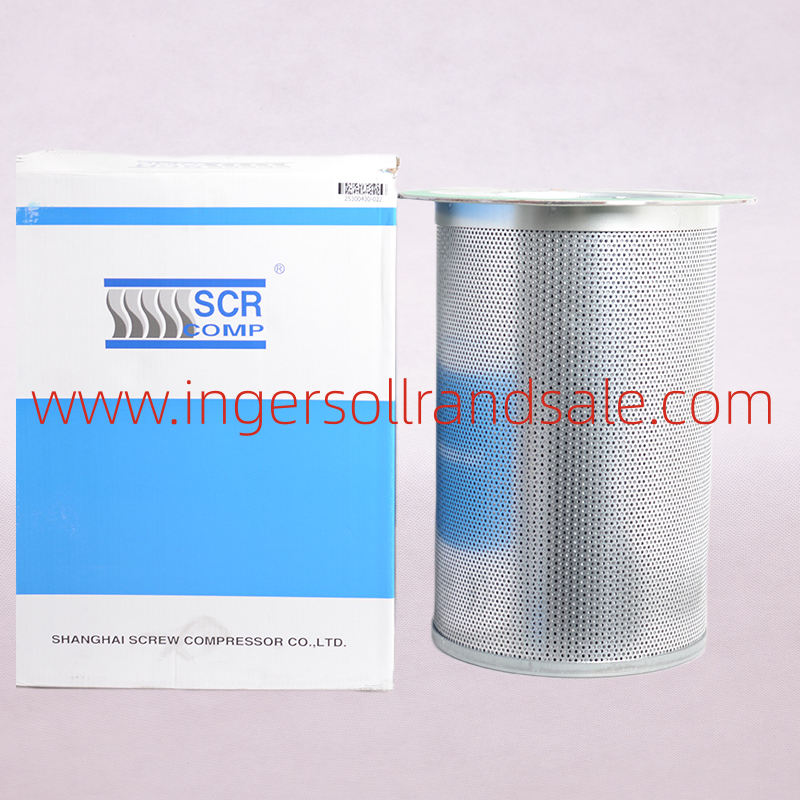

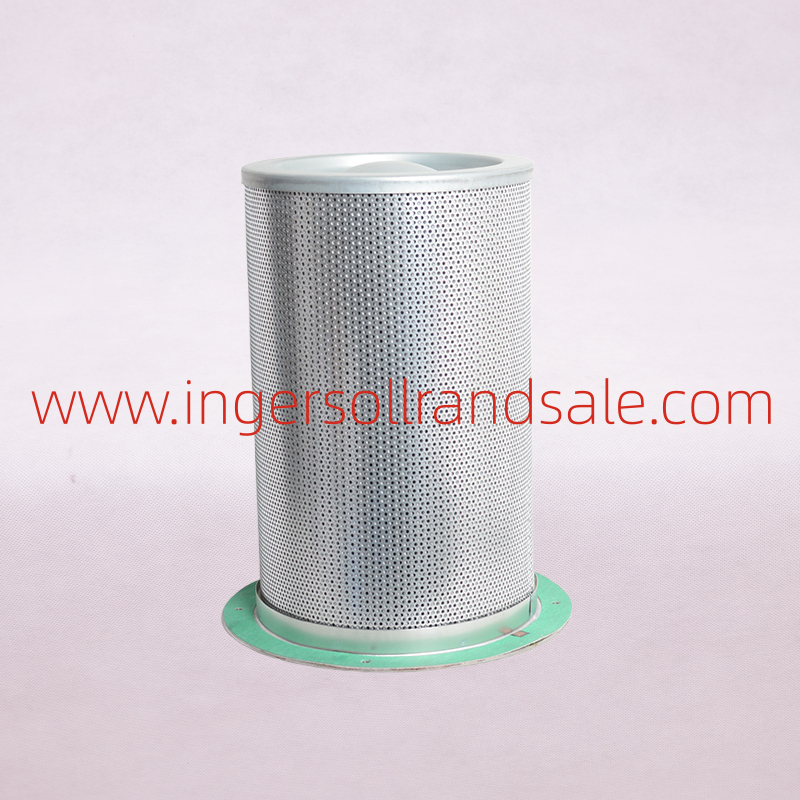

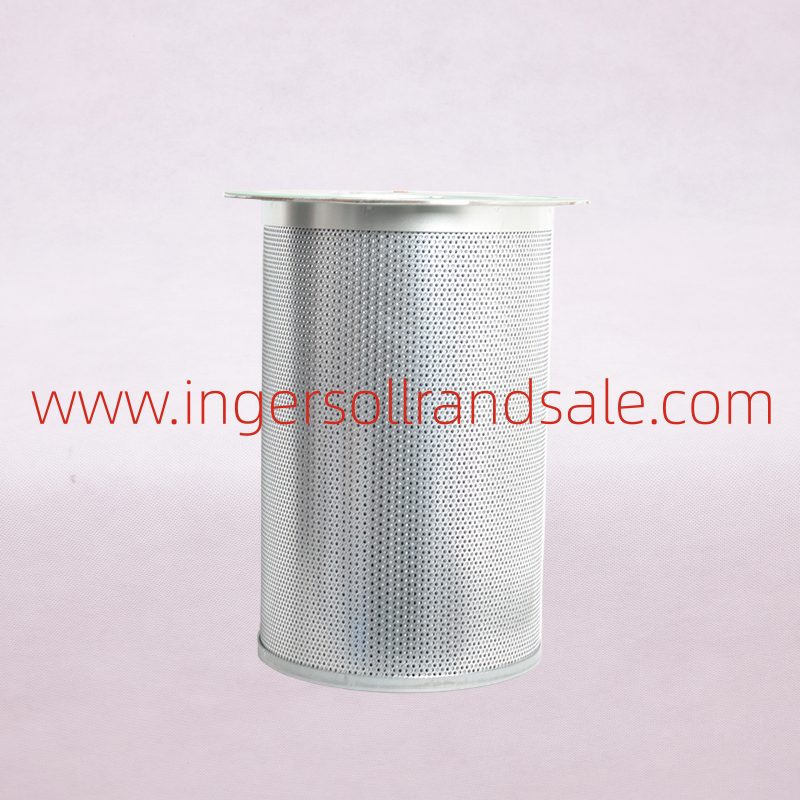

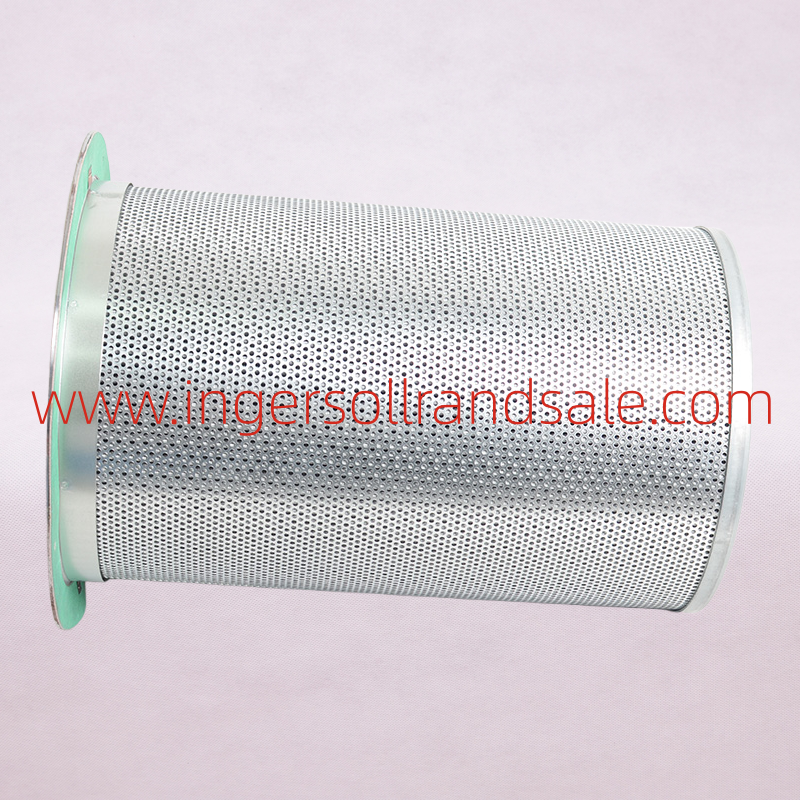

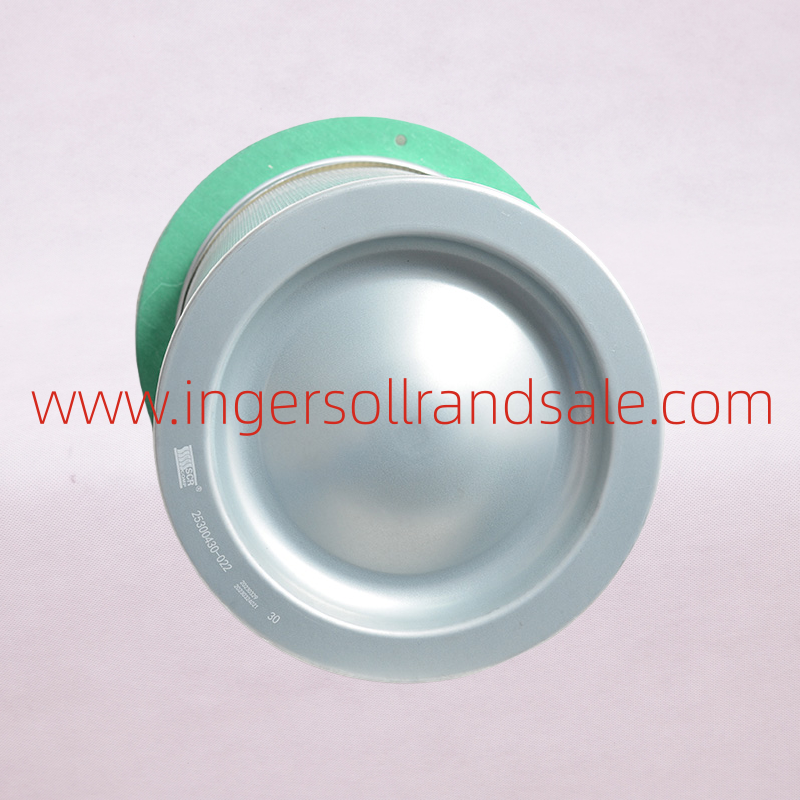

25300430-022 SCR Screw Air Compressor Genuine Parts SCR270HV-8 Oil Separator

No.25300430-022
Oil separator element for SCR air compressors (SCR270HV-8). Coalescing separation of oil from compressed air. Part number 25300430-022.
$910.00
  • 25300430-022 SCR Screw Air Compressor Genuine Parts SCR270HV-8 Oil Separator
  • 25300430-022 SCR Screw Air Compressor Genuine Parts SCR270HV-8 Oil Separator
  • 25300430-022 SCR Screw Air Compressor Genuine Parts SCR270HV-8 Oil Separator
  • 25300430-022 SCR Screw Air Compressor Genuine Parts SCR270HV-8 Oil Separator
  • 25300430-022 SCR Screw Air Compressor Genuine Parts SCR270HV-8 Oil Separator

Description

What it does

This is the coalescing element that separates oil from compressed air before the air leaves the tank. Gravity handles the large droplets; the media handle the mist that would otherwise travel into the aftercooler, the dryer and the plant. Because it degrades gradually, the first sign is usually oil consumption, not a pressure problem.

Signs it needs replacing

  • Coalescing filters downstream loading far faster than their normal interval.
  • Pressure differential across the separator climbing, or tank pressure slow to build.
  • Oil pushed out through the air line - wet spots at the first trap or filter.

Fitment and specifications

  • Part number: 25300430-022
  • Type: Oil separator element
  • Fitment reference: SCR270HV-8
  • Service life: 3,000-4,000 running hours, changed together with the air filter, oil filter and oil charge
  • Application: SCR air compressor
  • HS code: 8414909090

Before you order

Check the minimum pressure valve and the scavenge line orifice before blaming the element: a blocked return line produces exactly the same oil-carryover symptom, and a new element will not fix it. Match the element by part number and by height, since two elements can share a diameter.
