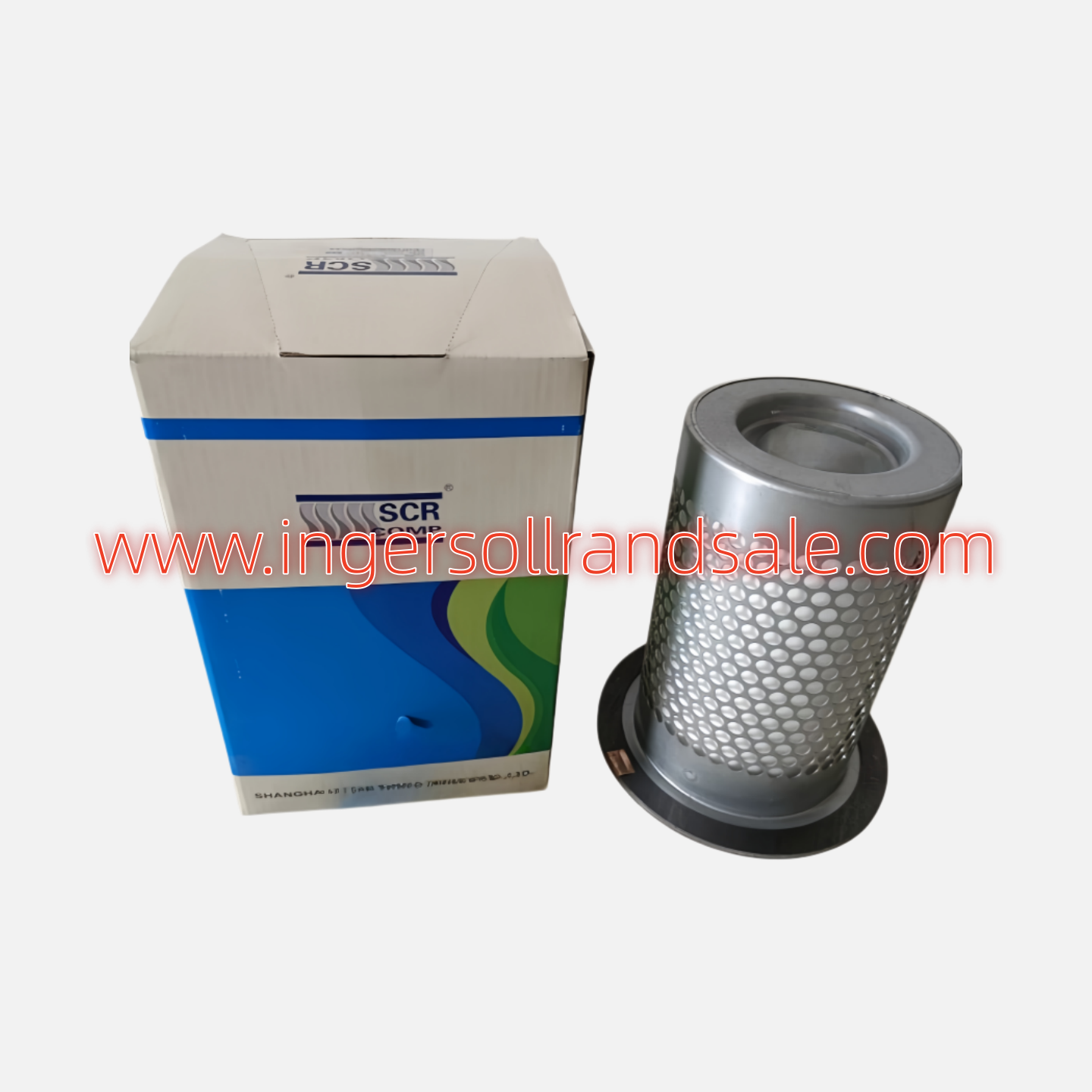

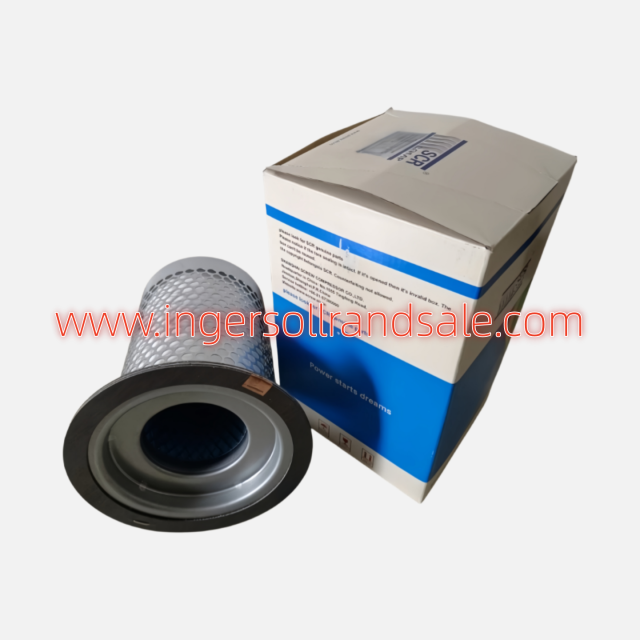

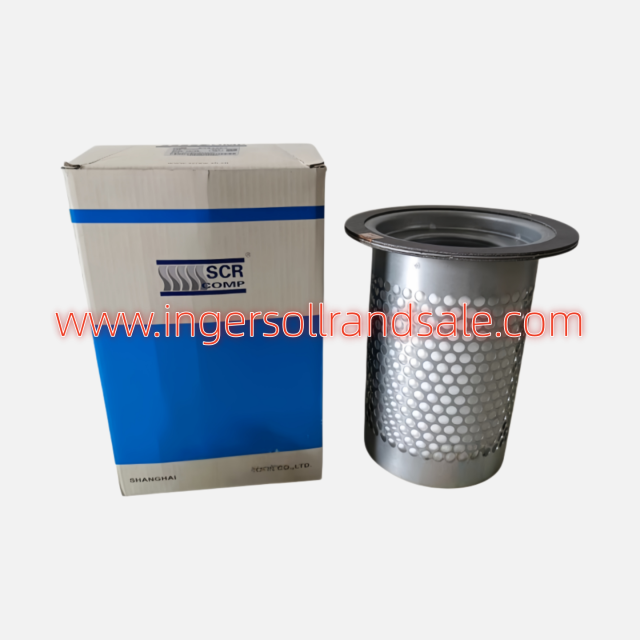

25300045-024 SCR Screw Air Compressor Genuine Parts Oil Separator

No.25300045-024
Oil separator element for SCR screw compressors, coalescing type. Separates oil aerosol from discharge air so the cooler and dryer stay free of oil.
$85.00
  • 25300045-024 SCR Screw Air Compressor Genuine Parts Oil Separator
  • 25300045-024 SCR Screw Air Compressor Genuine Parts Oil Separator
  • 25300045-024 SCR Screw Air Compressor Genuine Parts Oil Separator
  • 25300045-024 SCR Screw Air Compressor Genuine Parts Oil Separator
  • 25300045-024 SCR Screw Air Compressor Genuine Parts Oil Separator

Description

Part information

Part No

25300045-024

Brand

SCR

Origin

China

HS Code

8414909090

Lead time

1-2weeks

What it does

The element works by coalescence rather than filtration: aerosol droplets merge on the pleated media until they are heavy enough to drain back to the sump. Once the media is saturated or compressed, oil travels with the air instead.

Signs it needs replacing

  • Oil appearing in the receiver drain or the dryer condensate.
  • Oil consumption increasing on a machine with no external leak.
  • Separator differential above 1 bar, often followed by rising oil temperature.

Replacement interval

2,000-3,000 running hours in standard conditions, or at 1 bar differential. Use the differential if the site is dusty; the hour count alone will overrun.

How to replace

  • Bleed the tank to zero and confirm on the gauge; the cover is under pressure until then.
  • Handle by the top flange and check the element sits square on its spigot.
  • New cover seals, and change the oil filter in the same service.

Replaced together

Plan the air filter and oil filter for the same service. A new separator behind a loaded air filter simply loads faster.

Genuine vs alternative

Genuine elements use the correct coalescing grade for the SCR tank and a bonded end cap. Low-cost alternatives look identical from outside and start passing oil at around 1,000 hours.

Ordering notes

Confirm the machine model when ordering; several separator sizes are used across the SCR range. Lead time is 1-2 weeks.
