25150150-005P1/25150150-005P2 SCR Screw Air Compressor Genuine Parts Air Filter

No.25150150-005P1

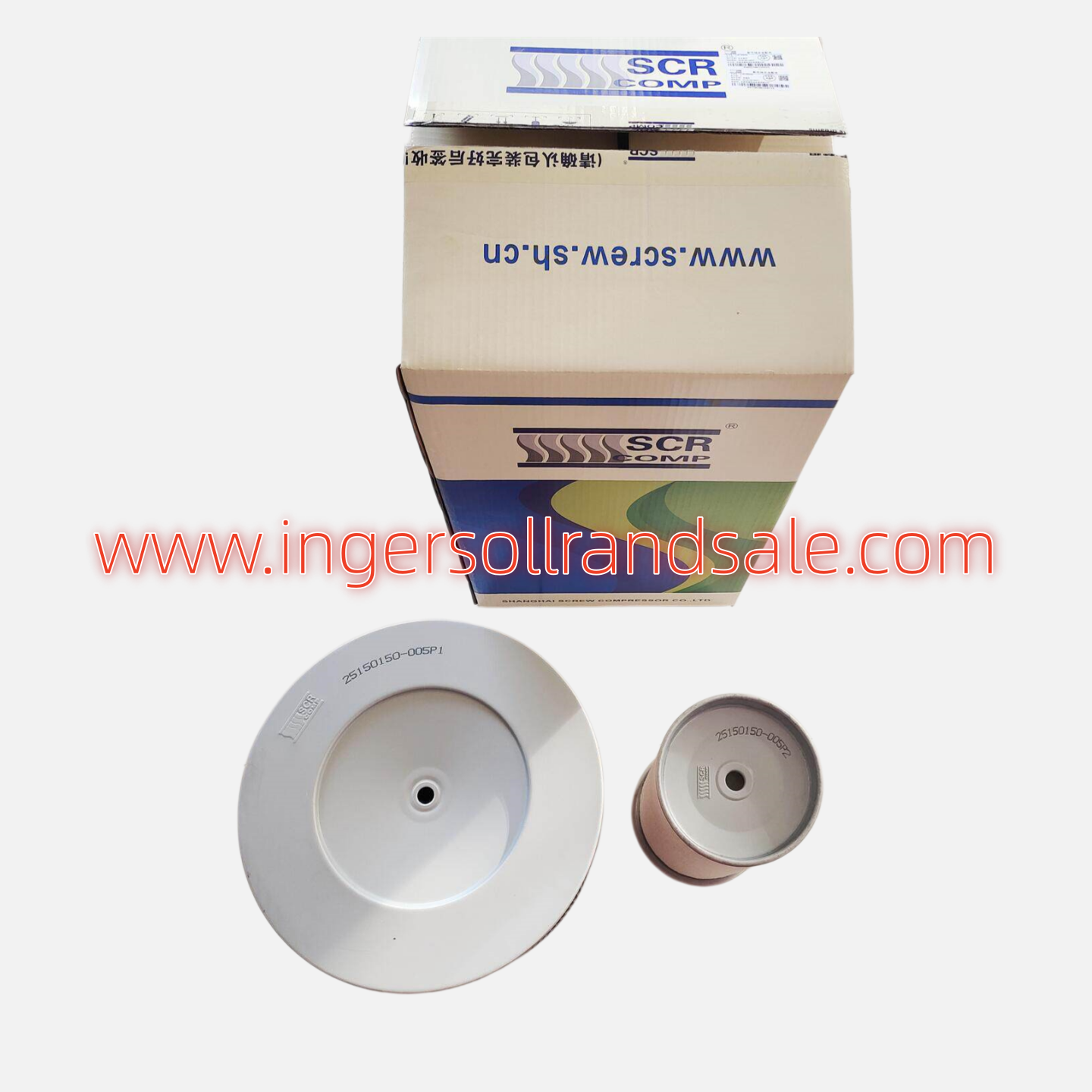

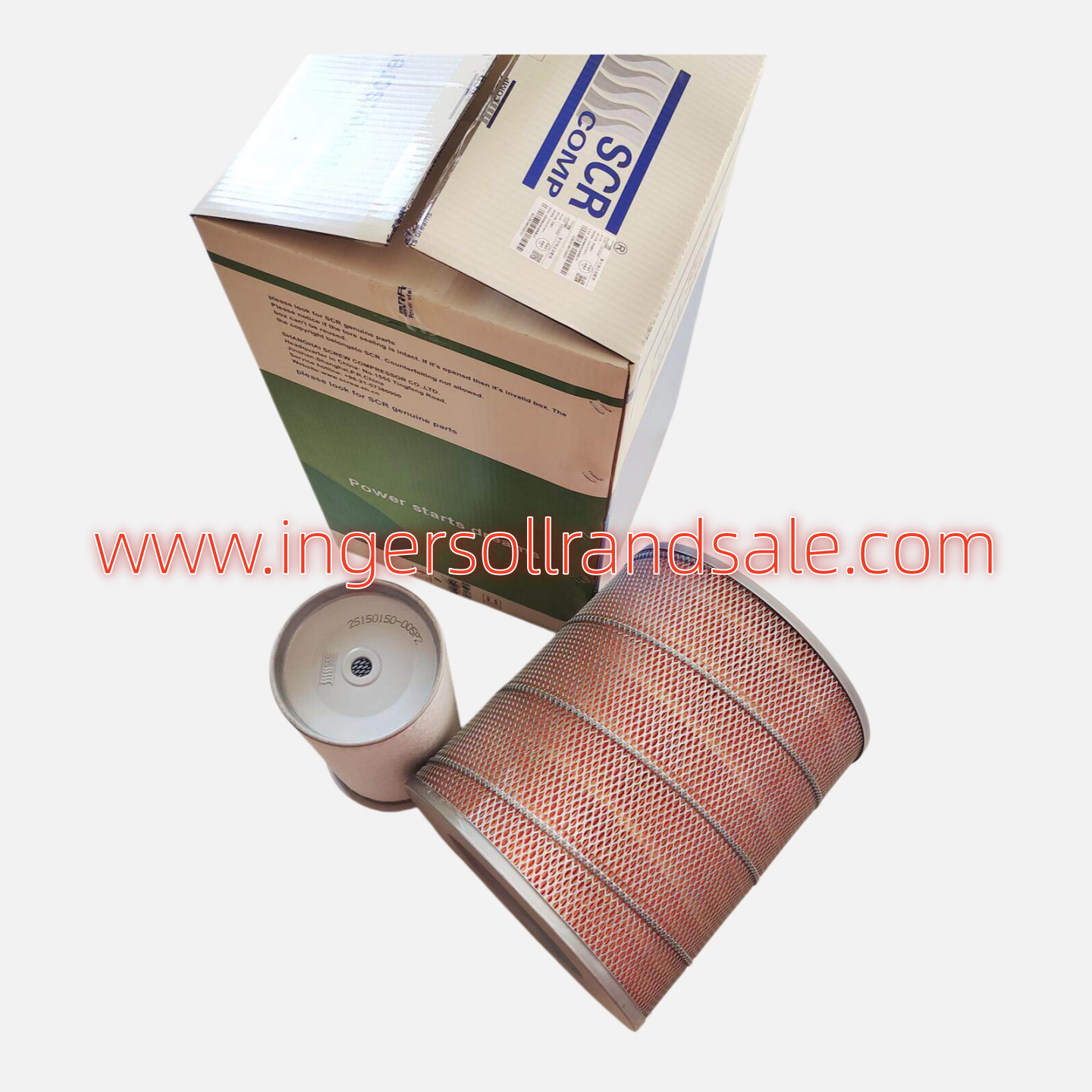

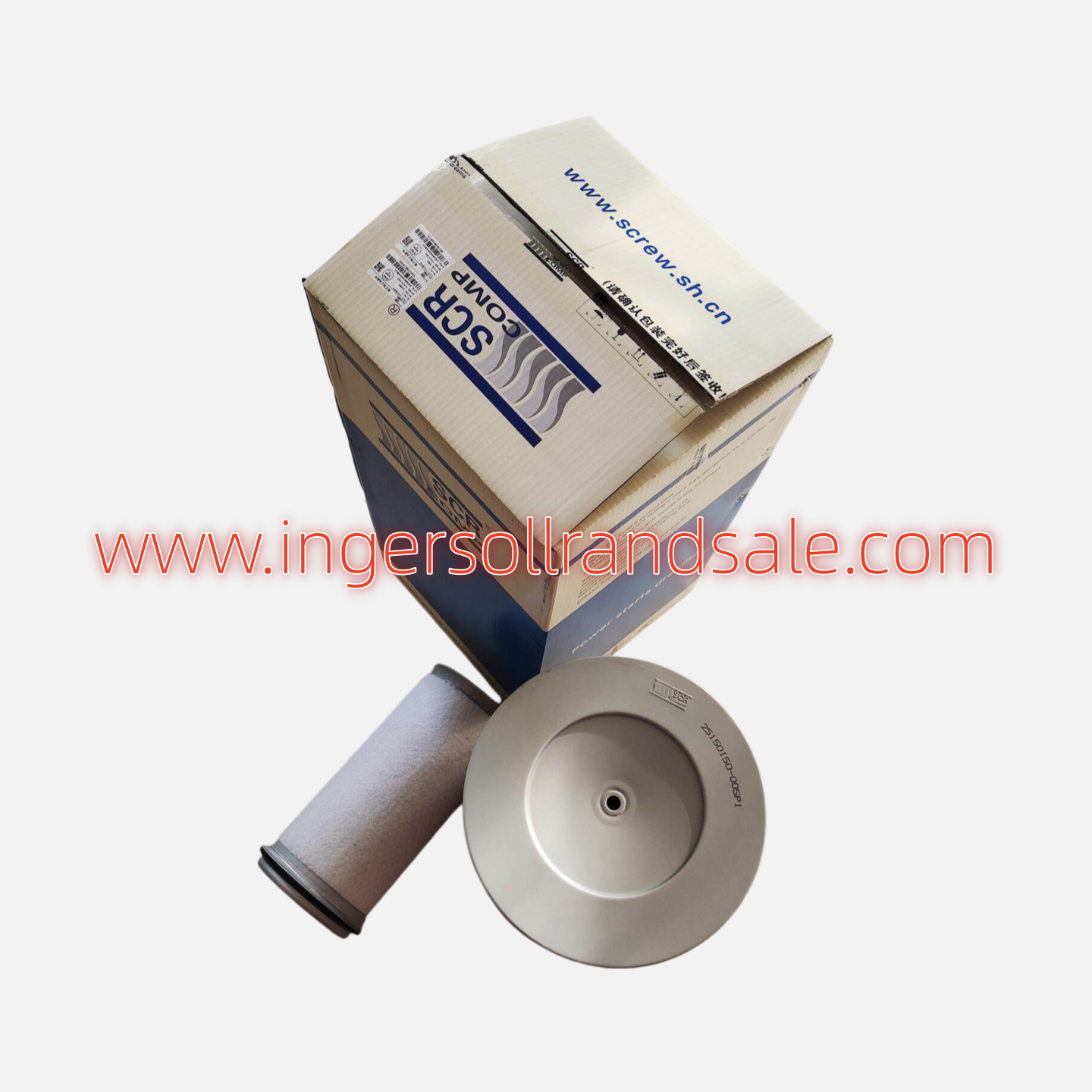

Air intake filter element for the SCR420LBPM screw compressor, supplied as a two-part set: 25150150-005P1 with its matching P2 section.
  • 25150150-005P1/25150150-005P2 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25150150-005P1/25150150-005P2 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25150150-005P1/25150150-005P2 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25150150-005P1/25150150-005P2 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25150150-005P1/25150150-005P2 SCR Screw Air Compressor Genuine Parts Air Filter

Description

Part information

Part No

25150150-005P1

Brand

SCR

Origin

China

HS Code

8414909090

Fits

SCR420LBPM

Lead time

1-2weeks

What it does

A 420 kW machine moves a large volume of intake air, so this element is a two-section design with a substantial media area. The service life is set by dust loading rather than hours: at this airflow the element can reach its restriction limit well before the nominal interval.

Signs it needs replacing

  • Restriction indicator in the red at full load, or the controller reporting low capacity.
  • Dust on the inner face of either section, meaning the joint or a seal is passing.
  • Visible gap between the halves when the element is assembled outside the housing.

Replacement interval

Check the restriction indicator weekly on a machine this size. Clean at 1,000 hours, replace the complete set at 2,000-3,000 hours or at the restriction limit.

How to replace

  • Join both halves on the bench and inspect the joint before fitting; on this size the joint is the usual failure point.
  • Two people to fit a large-frame element: one to guide, one to seat, so the seals are not rolled.
  • Confirm the indicator has reset before the machine returns to full duty.

Replaced together

Supplied as P1 plus P2. On a 420 kW machine the air filter, oil filter and separator are normally changed in one planned stop.

Genuine vs alternative

Genuine halves are matched and the joint seals as designed. On a large frame the cost of a bypassing joint shows up quickly as dirt in the oil and a loaded separator.

Ordering notes

Confirm the machine is the SCR420LBPM and order the complete set. Lead time is 1-2 weeks.
