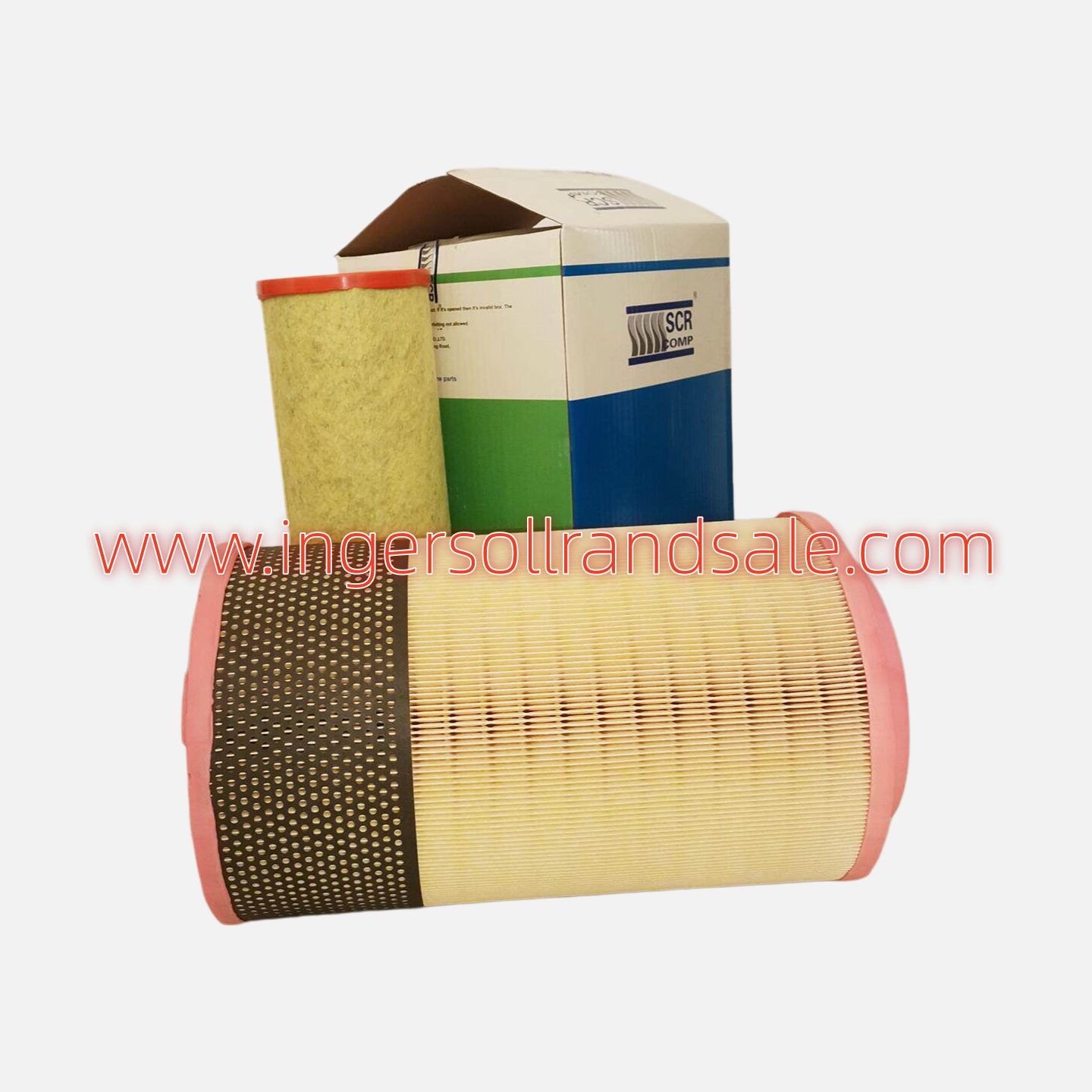

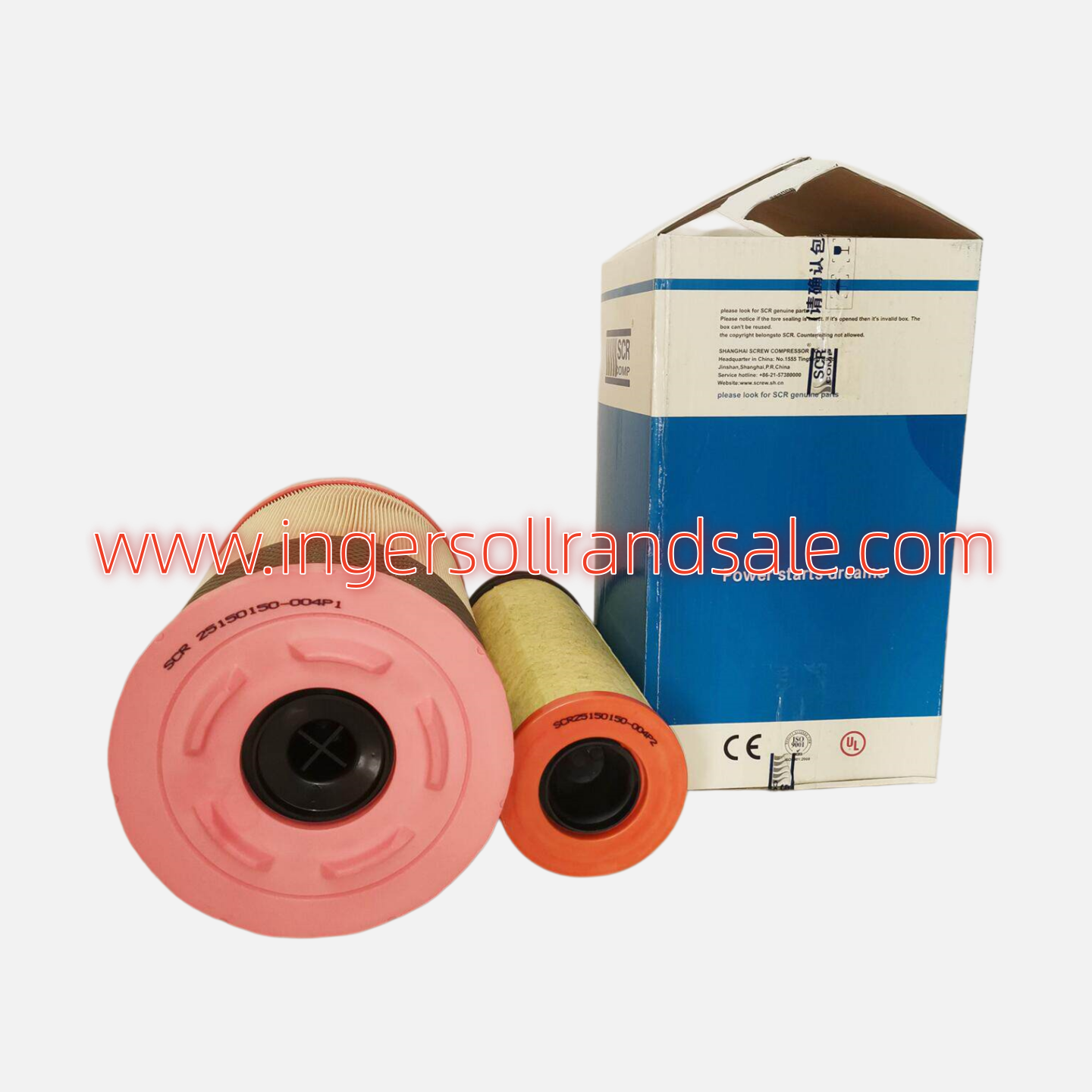

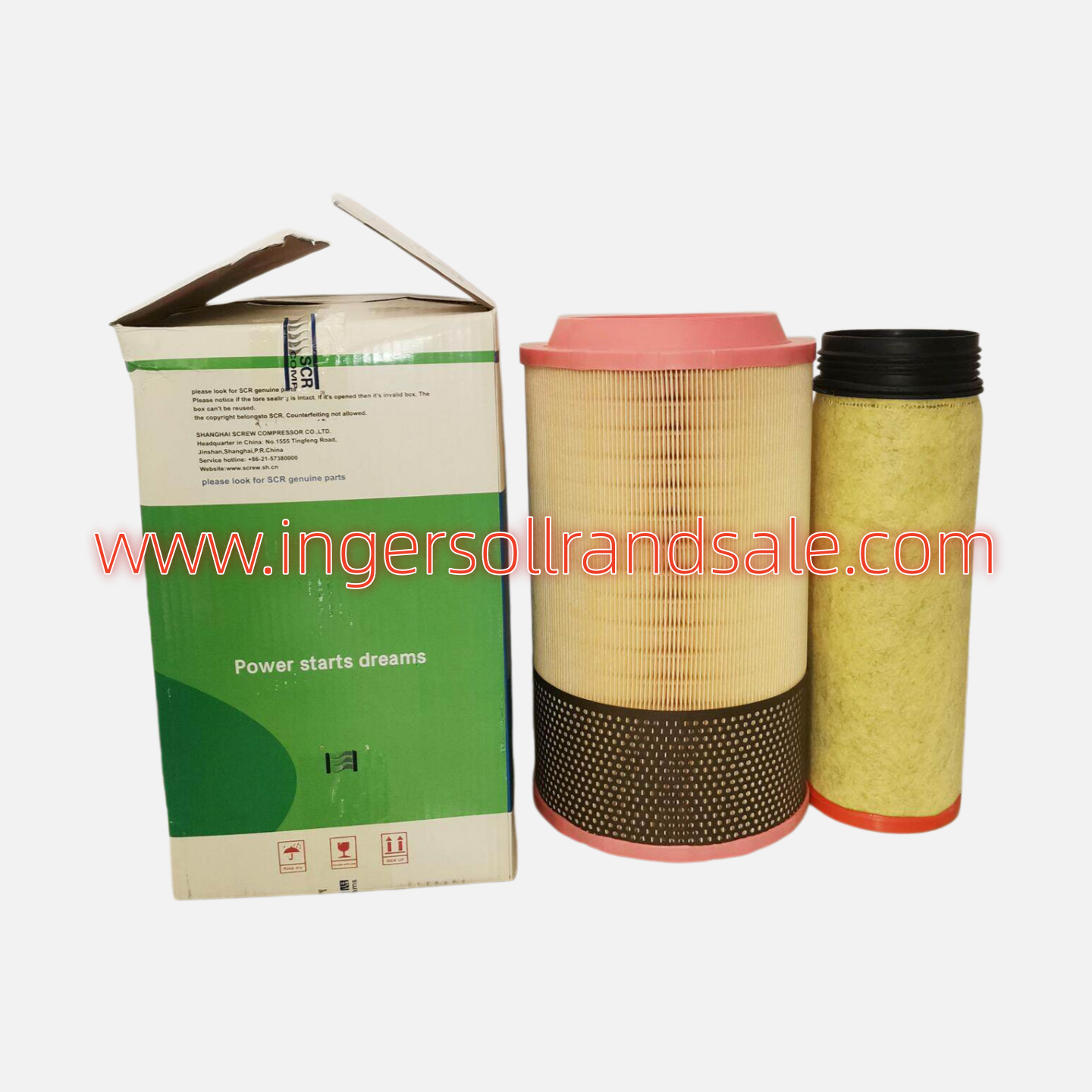

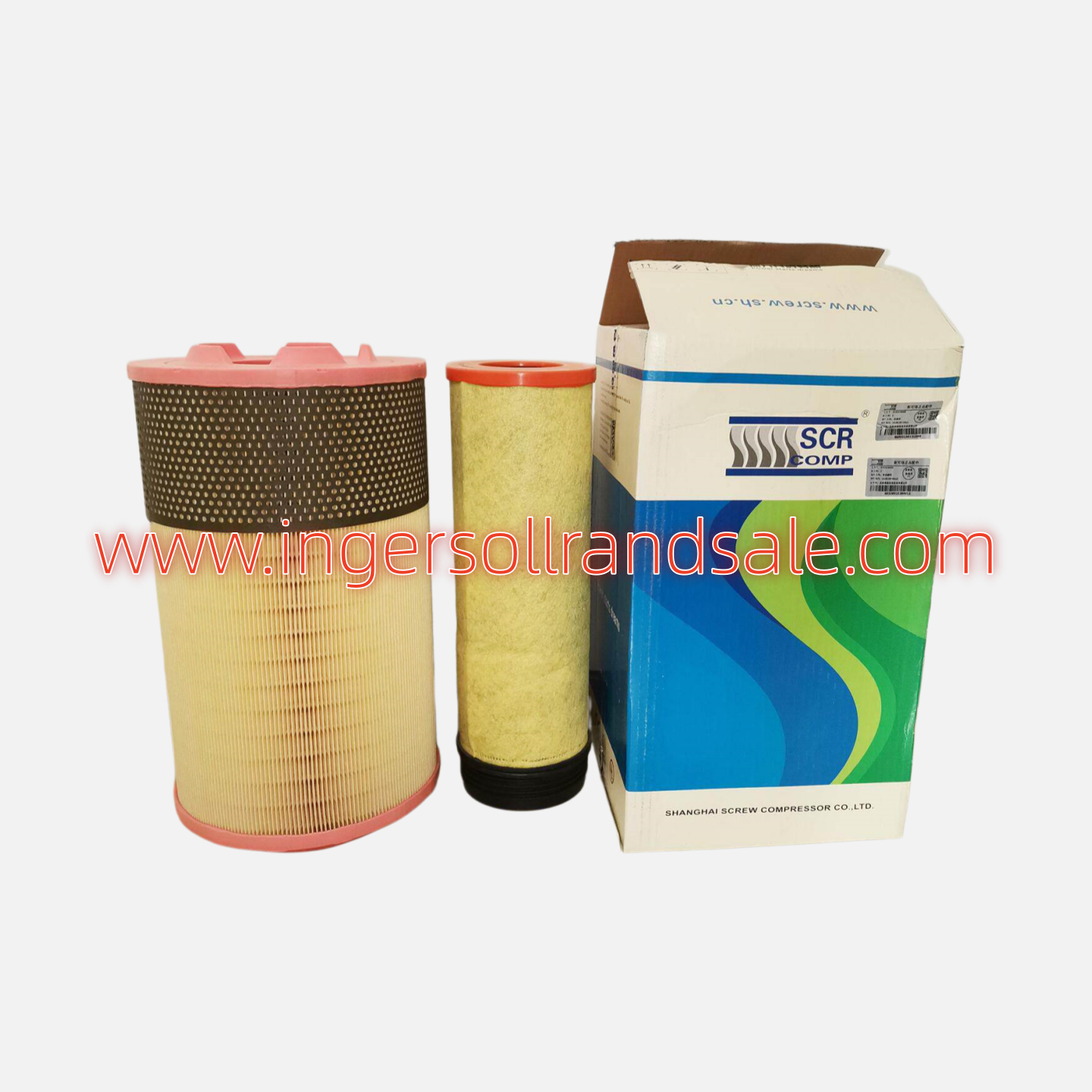

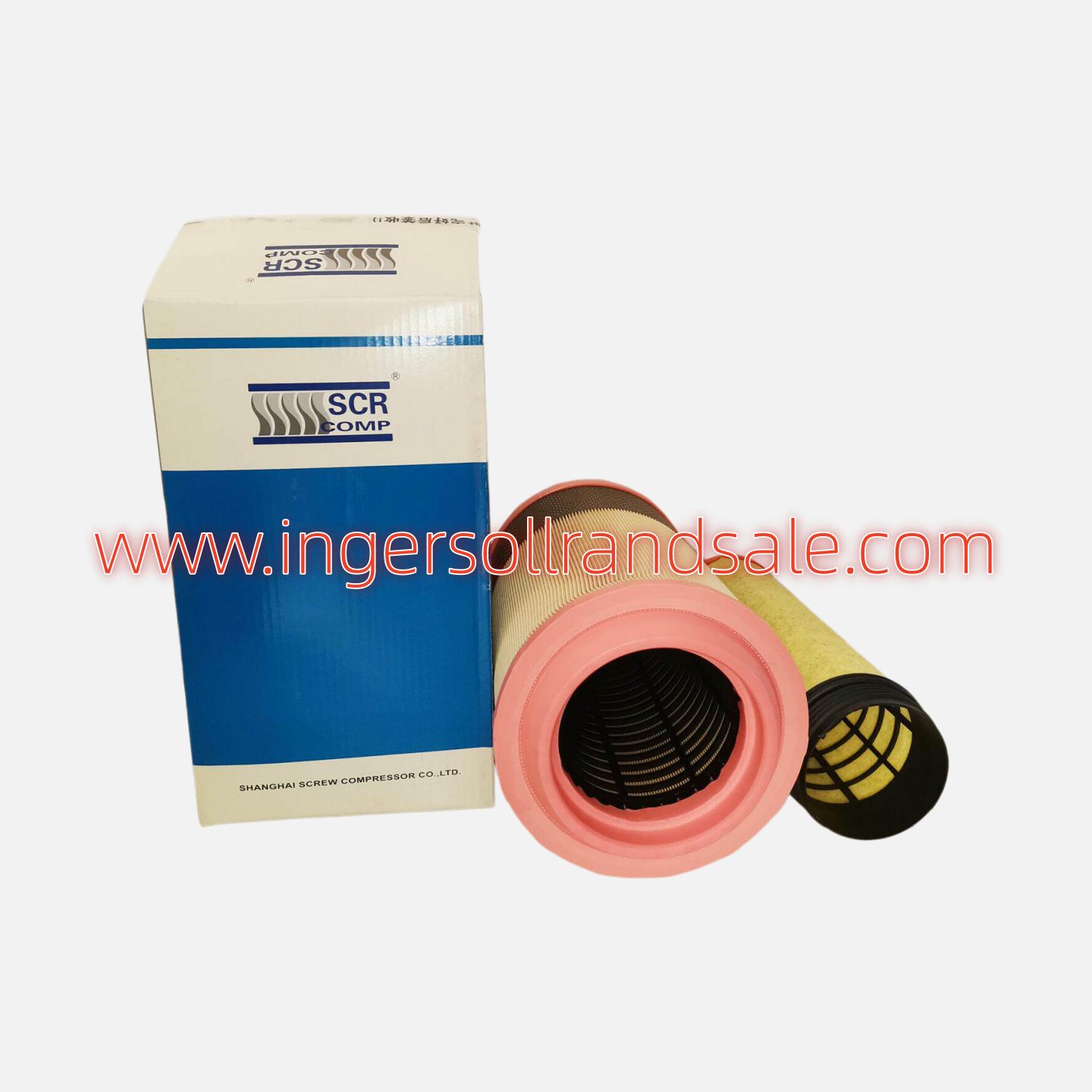

25150150-004P1/25150150-004P2 SCR Screw Air Compressor Genuine Parts Air Filter

No.25150150-004P1
Air intake filter element for SCR screw compressors, supplied as a two-part set: 25150150-004P1 with its matching P2 section. Large-frame element for high intake volume.
  • 25150150-004P1/25150150-004P2 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25150150-004P1/25150150-004P2 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25150150-004P1/25150150-004P2 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25150150-004P1/25150150-004P2 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25150150-004P1/25150150-004P2 SCR Screw Air Compressor Genuine Parts Air Filter

Description

Part information

Part No

25150150-004P1

Brand

SCR

Origin

China

HS Code

8414909090

Lead time

1-2weeks

What it does

This is a large-frame element built in two sections to make it manageable during service. Each half carries its own seal, and the joint between them has to close cleanly or the intake draws dust through the middle of the element rather than the media.

Signs it needs replacing

  • Dust on the inner face after service, or a visible gap at the joint between halves.
  • Restriction indicator in the red at full load, clearing only when the machine unloads.
  • Capacity down against commissioning figures with no mechanical fault found.

Replacement interval

Clean at 1,000 hours, replace the complete set at 2,000-3,000 hours or at the restriction limit, whichever comes first.

How to replace

  • Fit the two halves together on the bench and check the joint before going near the housing.
  • Lower the assembly in as one piece; fitting halves separately inside the housing rarely closes the joint.
  • Check the outer seal all round, then run the machine and confirm the indicator reads clear.

Replaced together

Supplied as P1 plus P2; both are required. Check the oil filter and separator at the same service.

Genuine vs alternative

Genuine halves are a matched pair, and the joint seal is part of the element. Mixing halves from different sources leaves a gap that is invisible once the housing is closed.

Ordering notes

Order the complete set rather than the P1 section alone. Lead time is 1-2 weeks.
