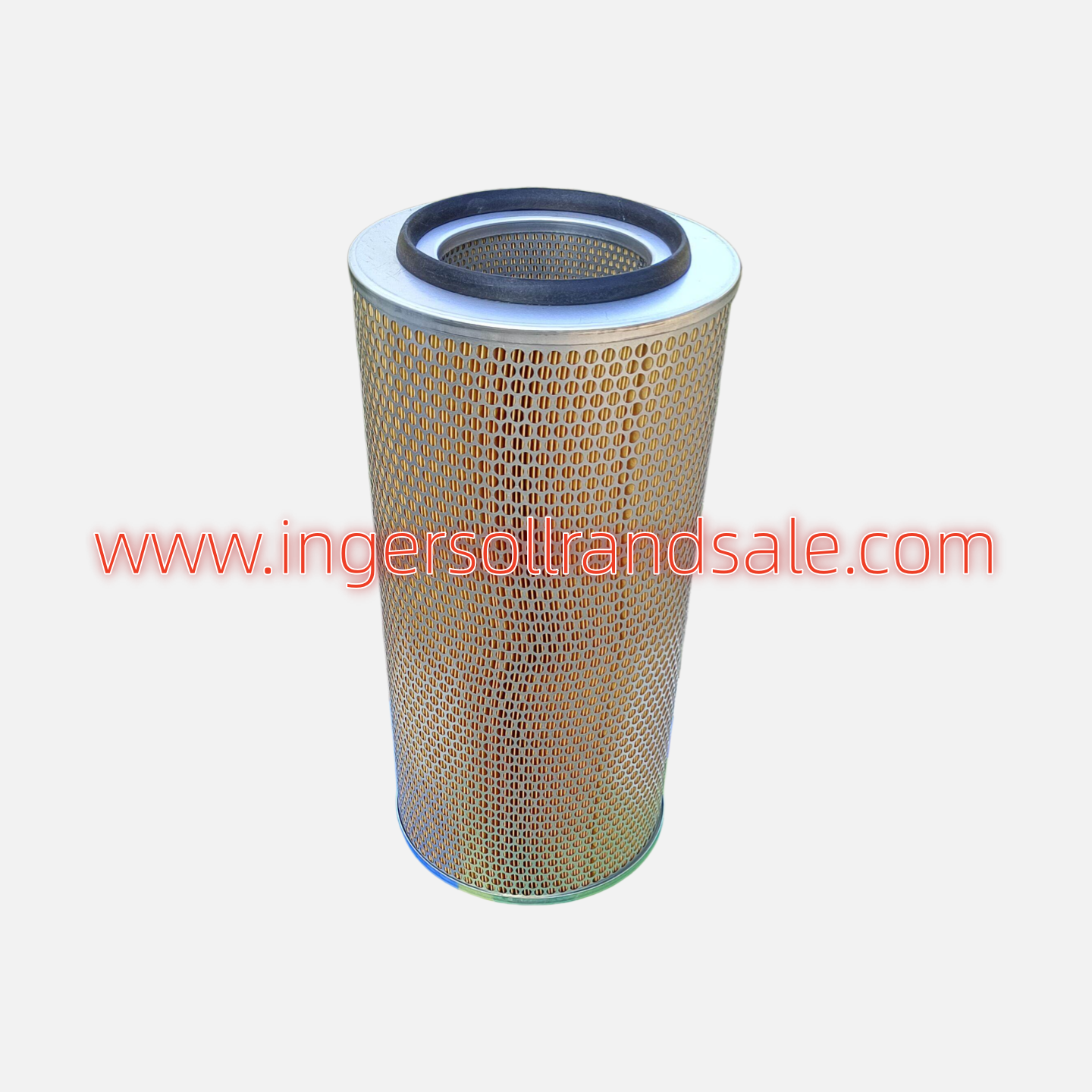

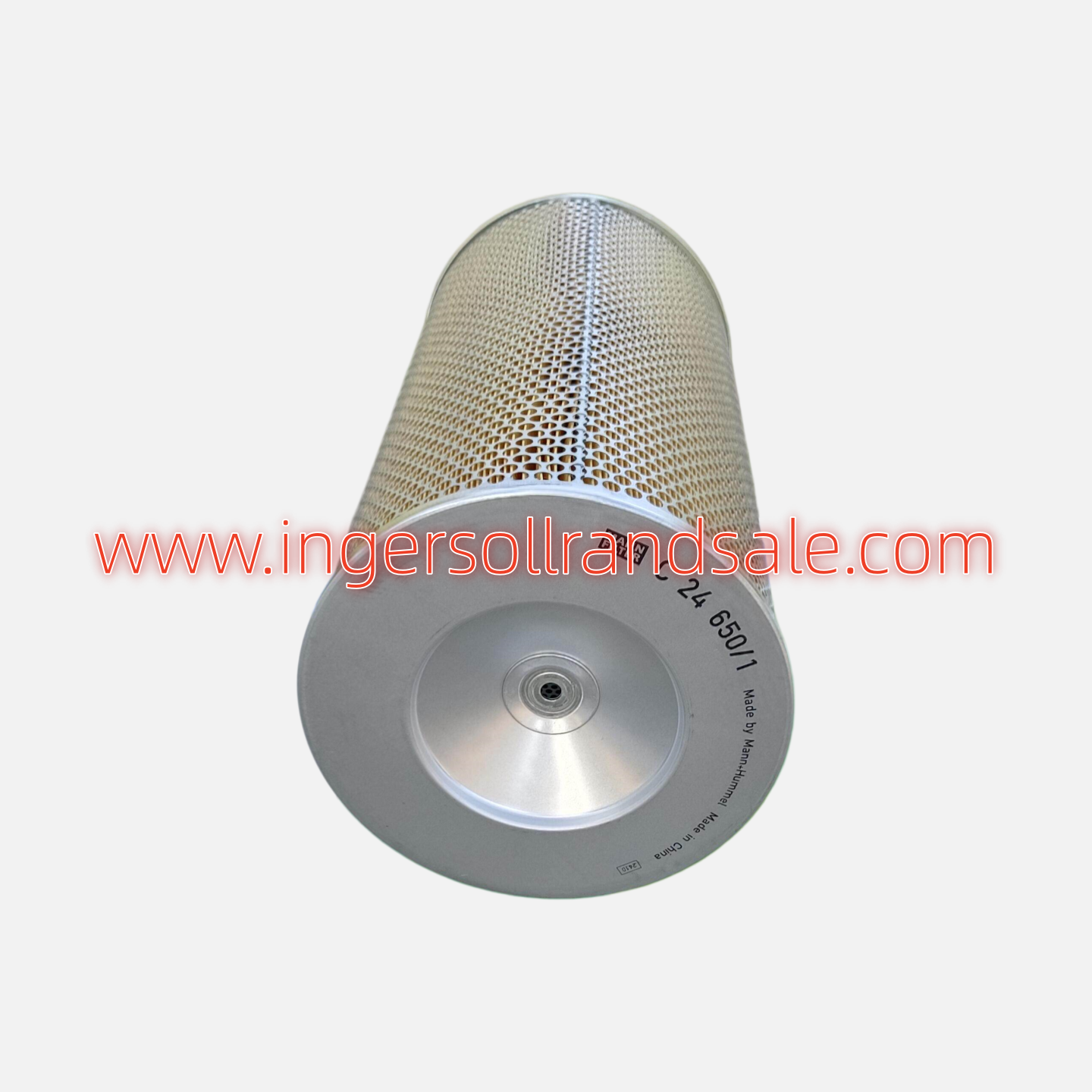

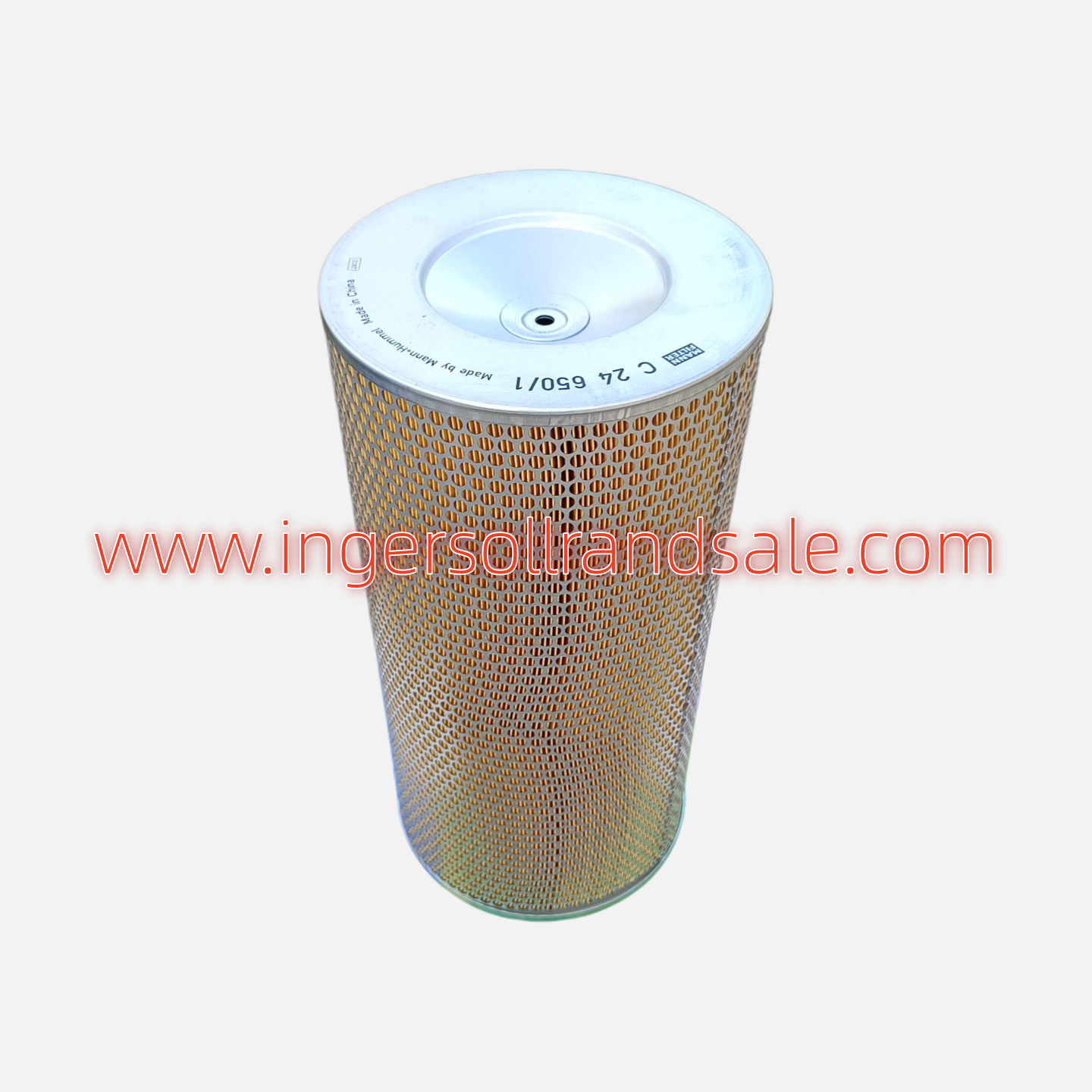

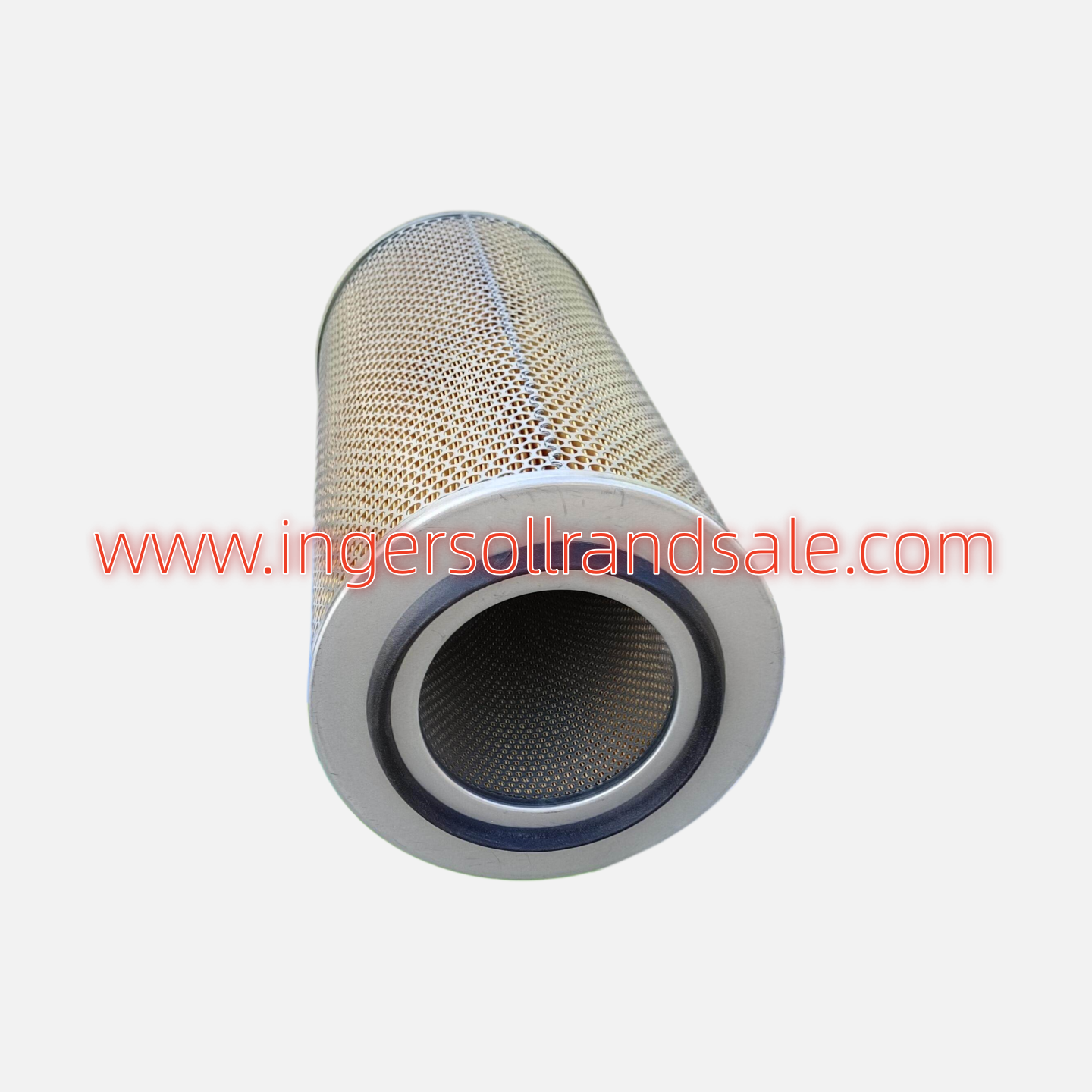

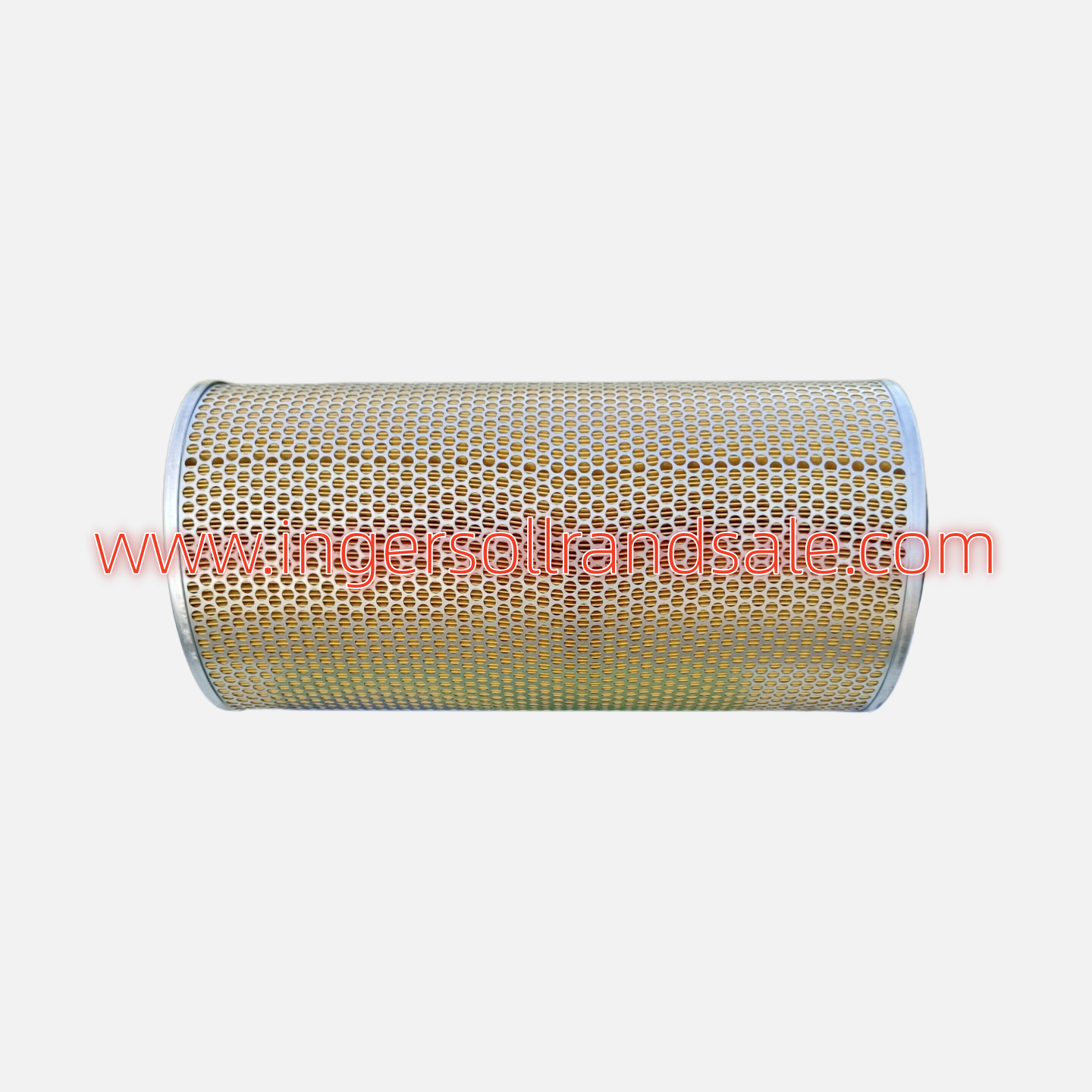

25100210-001 SCR Screw Air Compressor Genuine Parts Air Filter

No.25100210-001
Air intake filter element for the SCR5XA screw compressor. Traps dust before it reaches the airend, where it would mix with oil and load the separator.
$220.00
  • 25100210-001 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25100210-001 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25100210-001 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25100210-001 SCR Screw Air Compressor Genuine Parts Air Filter
  • 25100210-001 SCR Screw Air Compressor Genuine Parts Air Filter

Description

Part information

Part No

25100210-001

Brand

SCR

Origin

China

HS Code

8414909090

Fits

SCR5XA

Lead time

1-2weeks

What it does

The air filter protects the airend and the oil circuit at the same time. Grit that passes the element ends up in the oil, and from there it scores the rotor flutes and blinds the separator. The filter is the cheapest component in that chain and the one that decides how long the others last.

Signs it needs replacing

  • A dust ring inside the intake hose downstream of the element, the clearest sign the element is passing dirt.
  • Restriction indicator in the red, or a noticeable drop in delivered capacity at full load.
  • Element pleats collapsed or the end cap lifted, usually after cleaning with too much air pressure.

Replacement interval

Clean at 1,000 hours with low-pressure air from the clean side, replace every 2,000-3,000 hours or when the restriction indicator stays in the red after cleaning.

How to replace

  • Never run the machine with the element out, even briefly; the intake is unfiltered and the airend is running.
  • Blow dry air below 2 bar from the inside out, nozzle kept 200 mm from the media.
  • Seat the element and check the end seals; an element that bypasses at the seal is worse than a dirty one.

Replaced together

Change the oil filter and check the separator differential in the same service. Dirt that reaches the oil circuit shows up first as a loaded oil filter.

Genuine vs alternative

The genuine element has the specified media grade and a moulded seal that closes on the housing shoulder. Copies with a soft foam seal compress and leak at the first service.

Ordering notes

The SCR5XA uses a small-frame intake, so confirm the model on the plate before ordering. Lead time is 1-2 weeks.
