Part information
|
Part No |

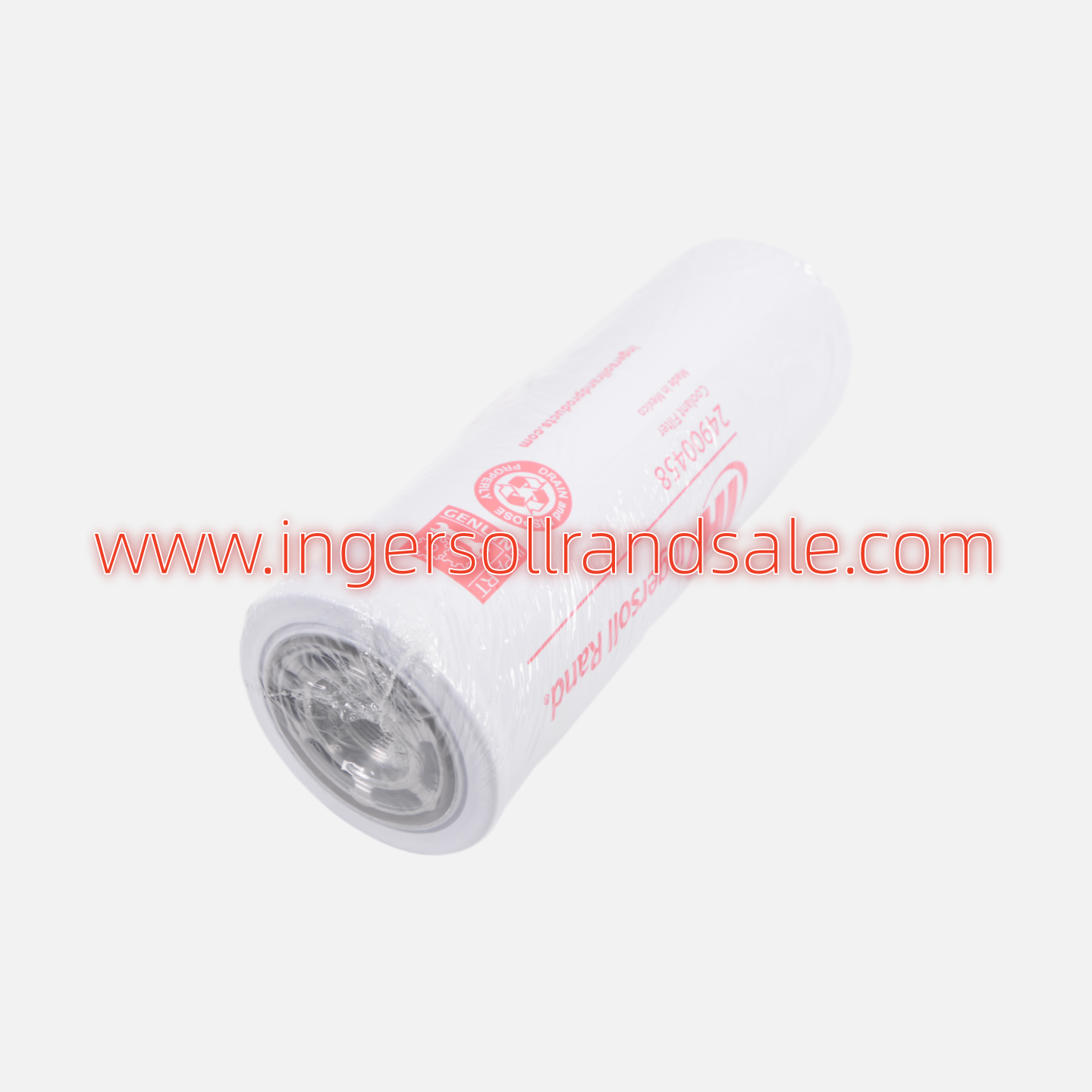

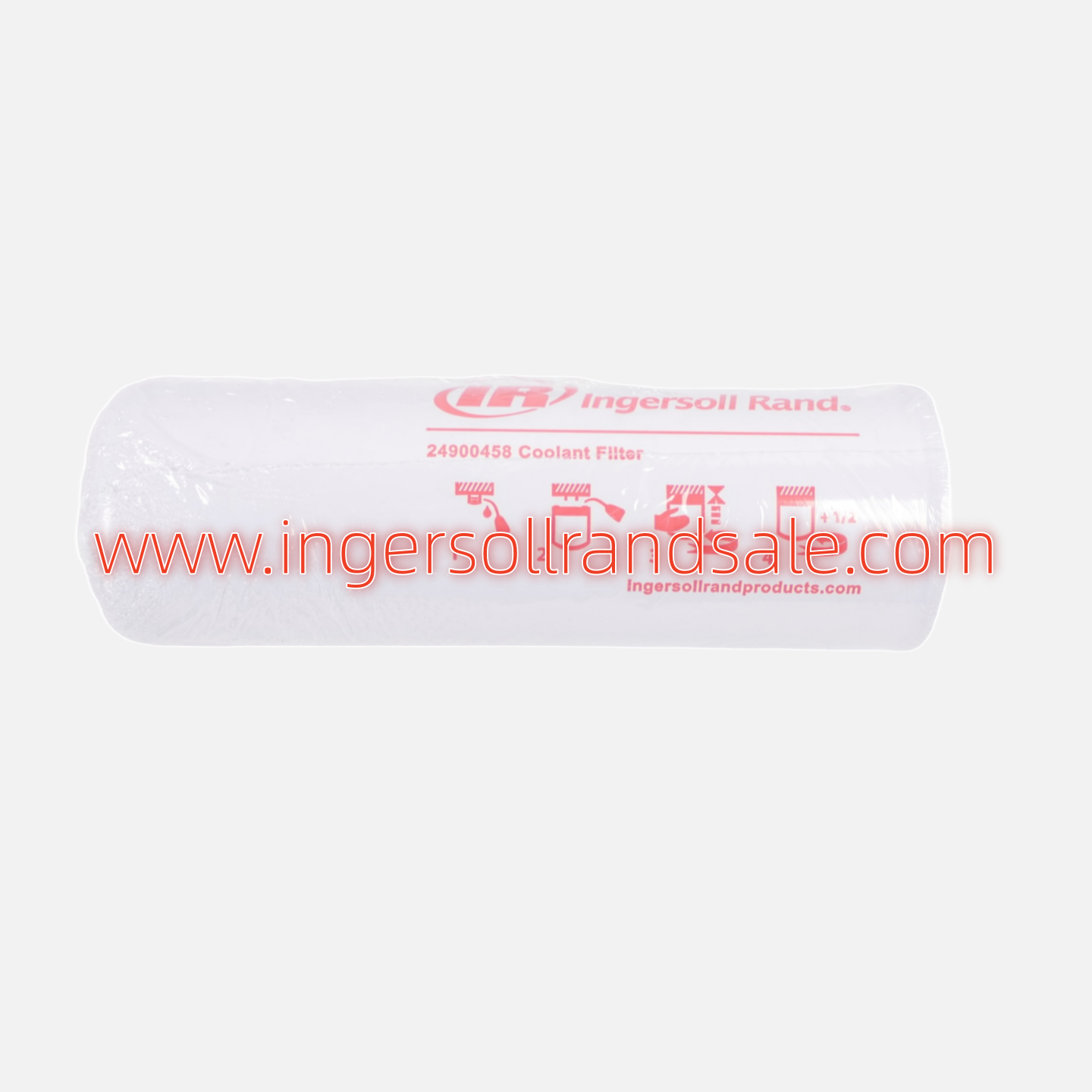

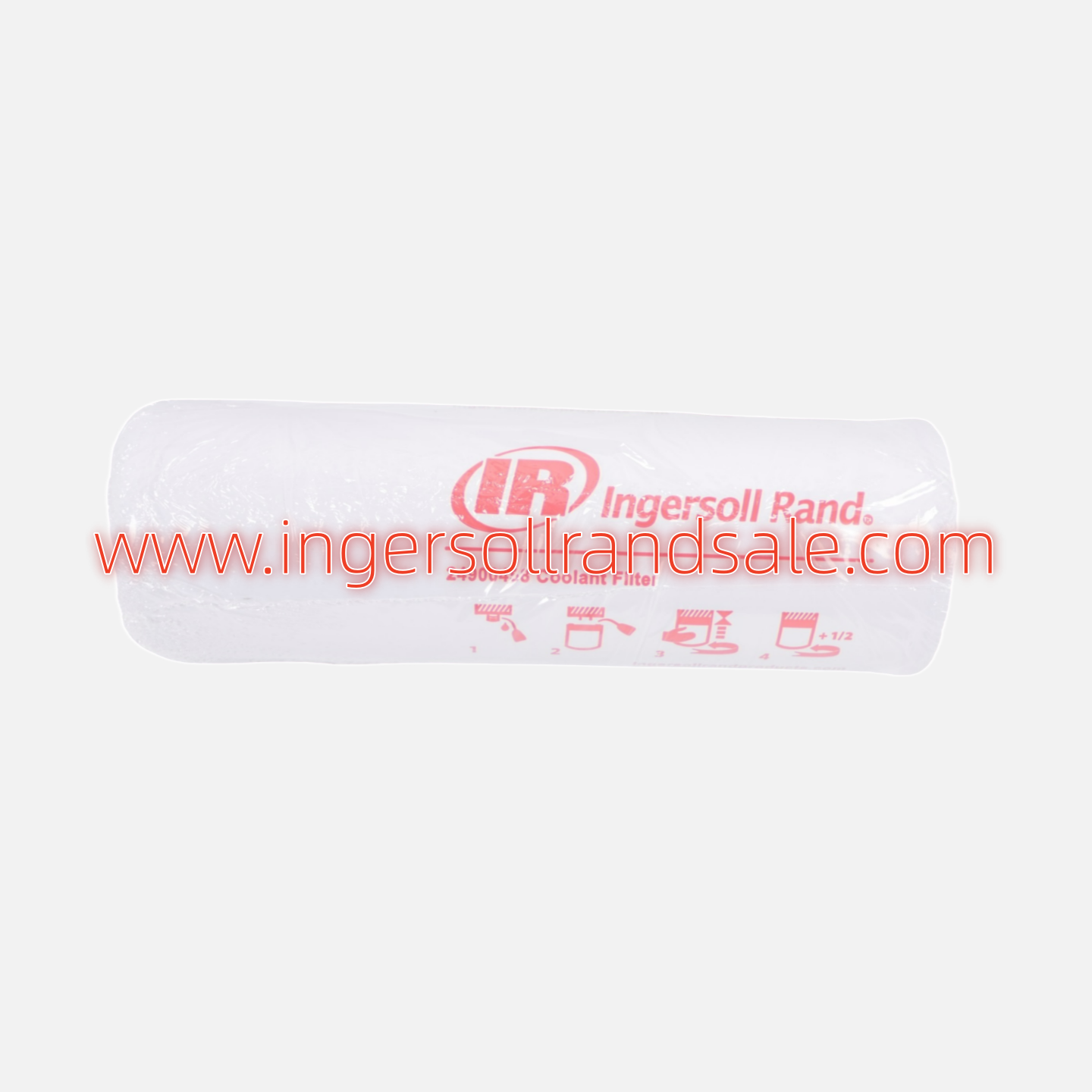

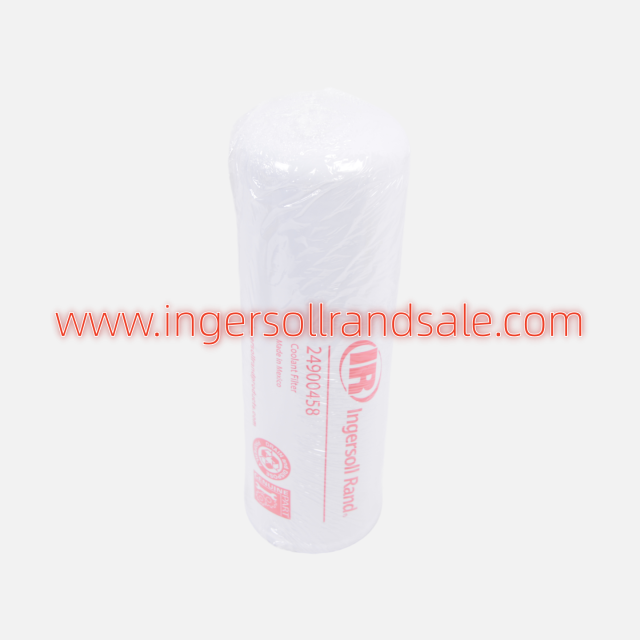

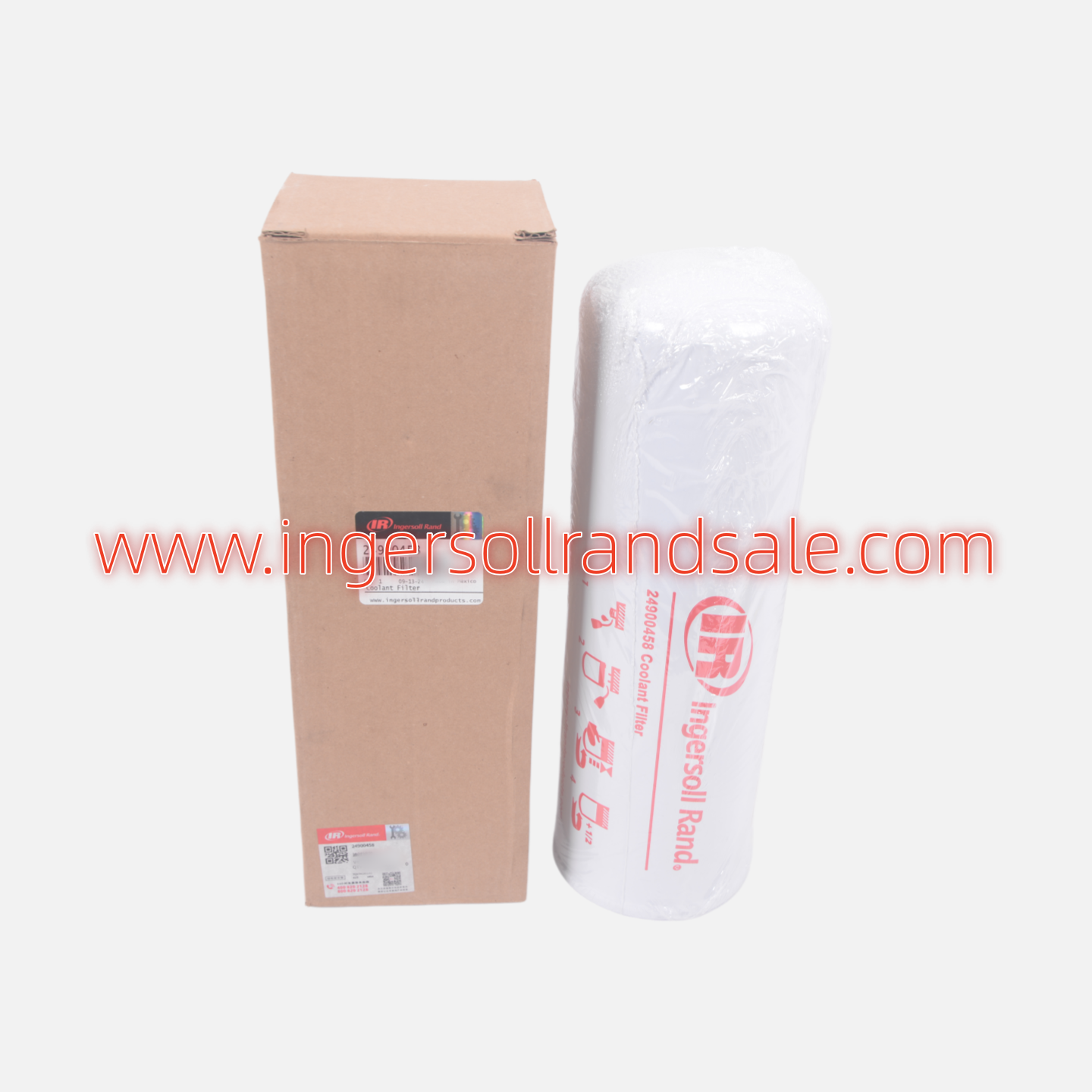

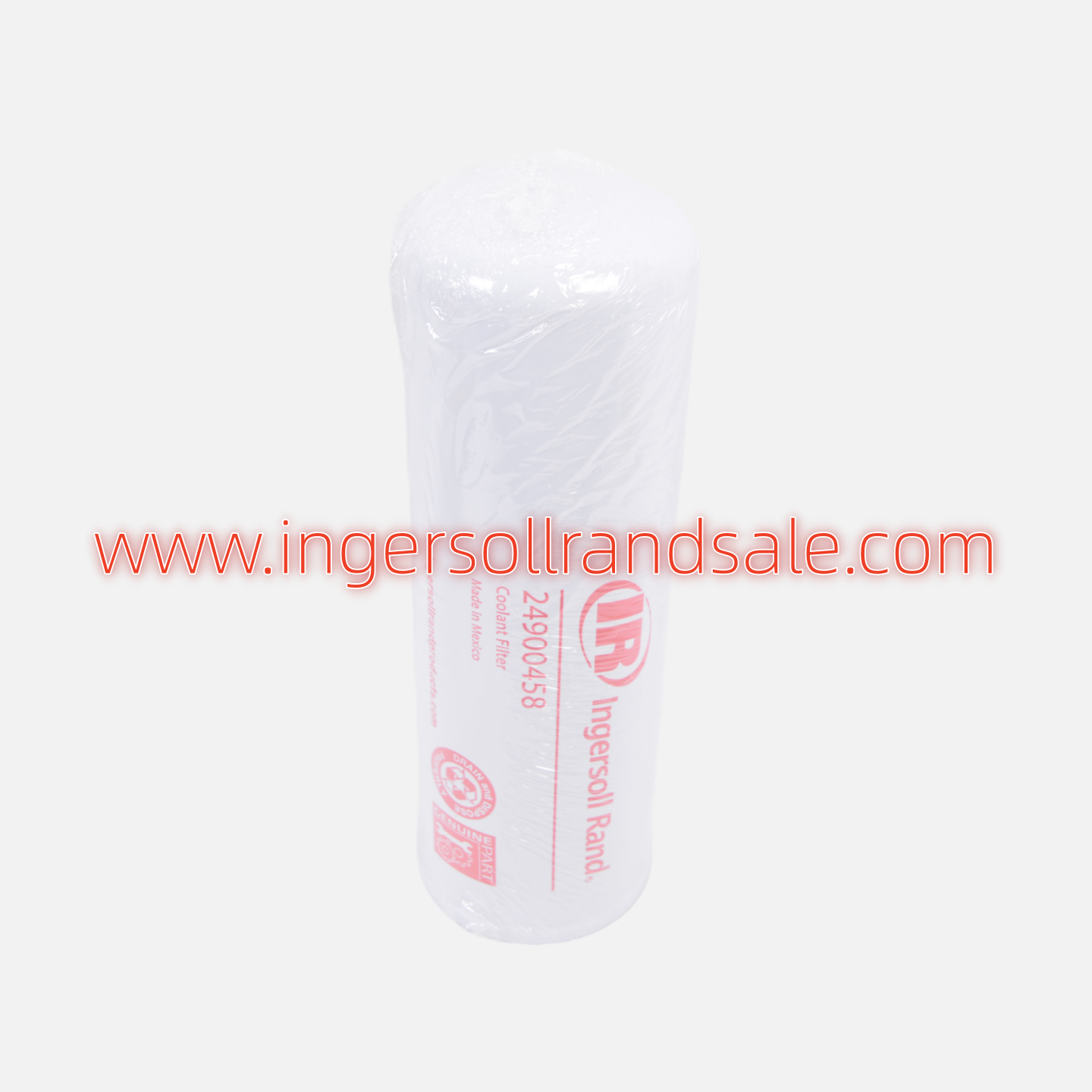

24900458 |
|
Brand |
Ingersoll Rand |
|
Origin |
China |
|
Weight |
2.5 kg |
|
Dimensions |
15*15*40 cm |
|
HS Code |
8414909090 |
|
Fits |
RS132-160i, RS90-160ie, RS200-250i/ie |
|
Lead time |
3-5 days |
What it does
All the oil going to the bearings passes through this element. That makes it the cheapest wear protection on the machine: particles it catches are particles that never reach a bearing surface.
Signs it needs replacing
Replacement interval
First change at 500 hours on a new machine, then 2,000-3,000 hours alongside the separator and air filter.
How to replace
Replaced together
Pairs with the air filter 24900326 on the same frame. Doing both in one visit keeps the service interval aligned and avoids a second shutdown for one seal.
Genuine vs alternative
Two options, both fitting the same housing.
Genuine (USD 165): built to the Ingersoll Rand specification with a burst-rated can and a bypass valve set to the machine's oil pressure.
Alternative (USD 68): same thread, same seal, same filtration grade from a specialist filter manufacturer. The usual choice for scheduled maintenance on a machine running a normal shift.
On a 250 kW frame running long shifts, the genuine can and bypass setting are the safer of the two; that is where the margin earns its price.
Ordering notes
Fits RS90-160ie, RS132-160i and RS200-250i/ie. Give the machine model when ordering - the same element number is used across the range but the housing seal differs on some builds. Lead time 3-5 days.
