24864639 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Filter Seat Combination Valve

No.24864639

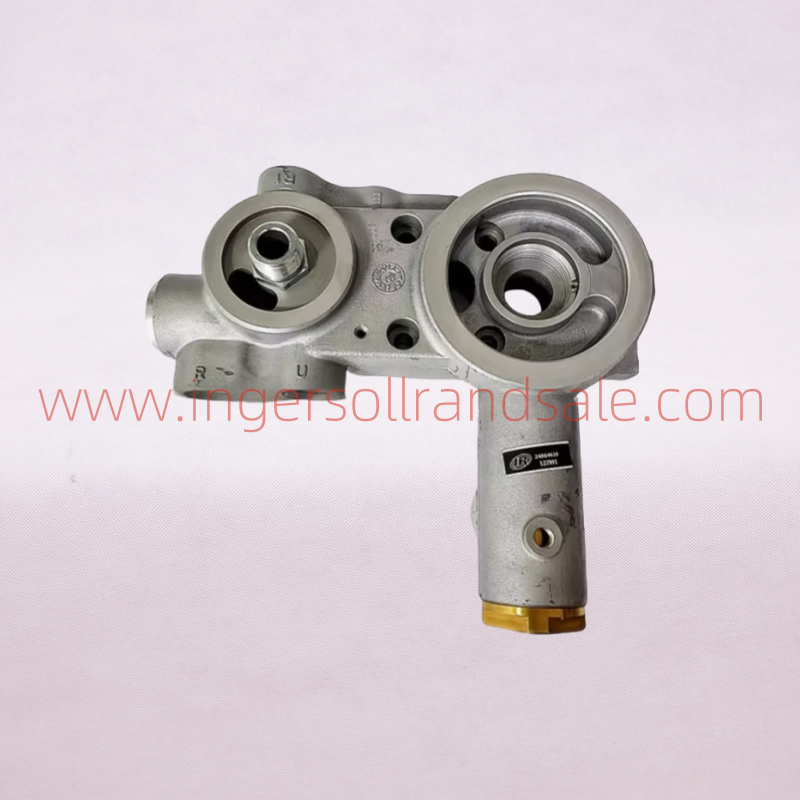

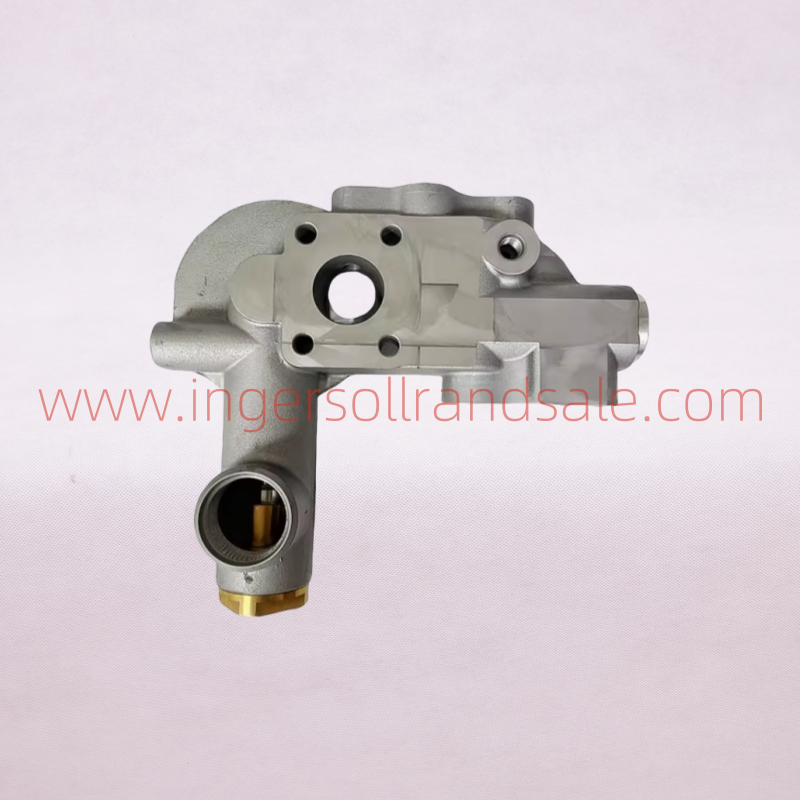

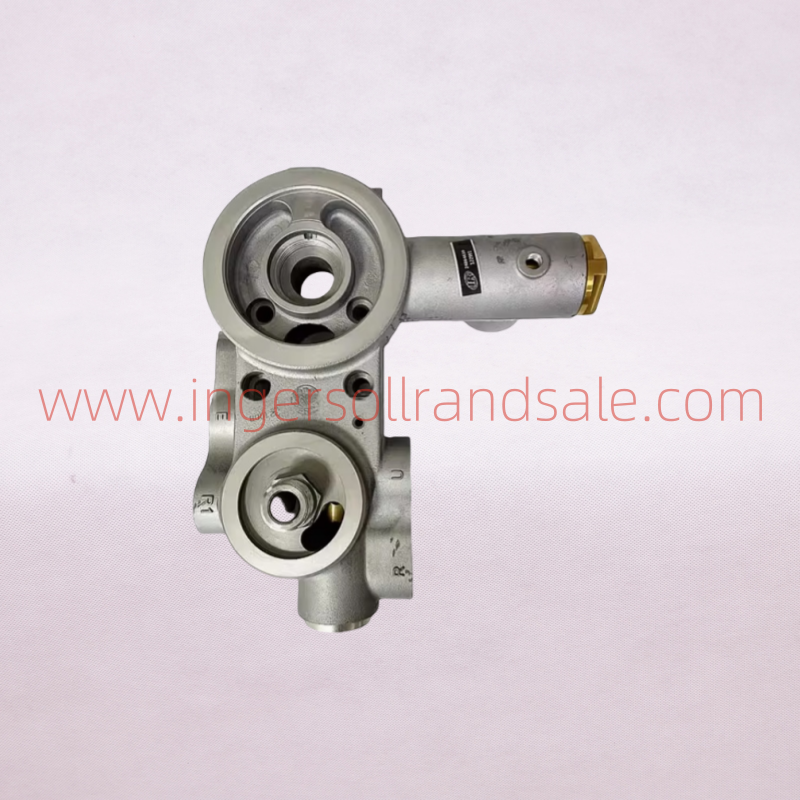

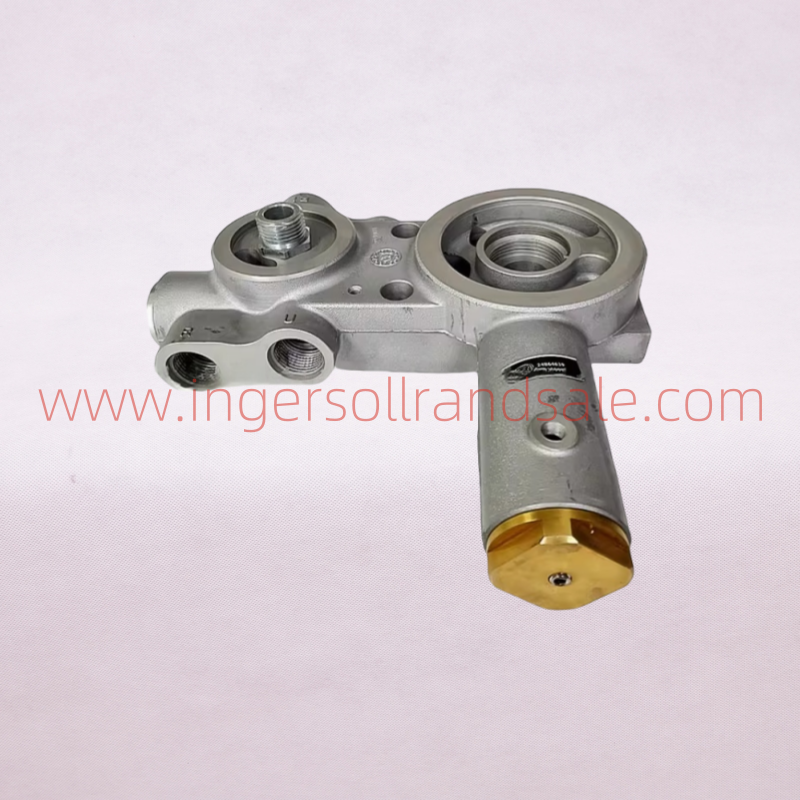

Ingersoll Rand oil filter seat combination valve 24864639, replaces 22099352. Filter head and thermostatic valve in one body. 3 kg, 3-4 weeks.
$470.00
  • 24864639 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Filter Seat Combination Valve
  • 24864639 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Filter Seat Combination Valve
  • 24864639 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Filter Seat Combination Valve
  • 24864639 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Filter Seat Combination Valve
  • 24864639 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Filter Seat Combination Valve

Description

Part No 24864639
Supersedes 22099352
Brand Ingersoll Rand
Origin China
Weight 3 kg
HS Code 8414909090
Fits Ingersoll Rand screw compressors
Lead time 3-4 weeks

What it does


This is a combined unit: the oil filter seat and the thermostatic valve share one body. The seat carries the oil filter under pressure, and the thermostatic element decides whether the oil returns straight to the airend or goes through the cooler, holding oil temperature in its working band.


Combining the two removes the joint between them, and that joint is a common leak point on older machines. 24864639 replaces 22099352.



Signs it needs replacing



    • Oil temperature runs low, so condensate never boils off and the oil emulsifies

    • Oil temperature runs high with the cooler working and the thermostat not opening

    • Oil weeps at the filter head or at the body joint

    • The filter no longer seals against the seat

    • Temperature swings between loaded and unloaded running



Replacement interval


Replace on condition. The thermostatic element ages with heat cycles and the seat wears with every filter change. Inspect at 8,000 hours, or whenever oil temperature stops behaving.



How to replace



    • Depressurise and drain the oil circuit. The body holds oil after shutdown.

    • Note which port feeds the cooler and which returns to the airend. Reversed connections send hot oil the wrong way and the fault then looks like a failed thermostat.

    • Fit new seals at every joint, not only at the filter.

    • Inspect the thermostat in the old body before discarding it. If it is stuck open the seat is usually still good, and knowing which half failed tells you what to watch.

    • Refill, run to temperature and check the joints for weep.



Genuine vs alternative

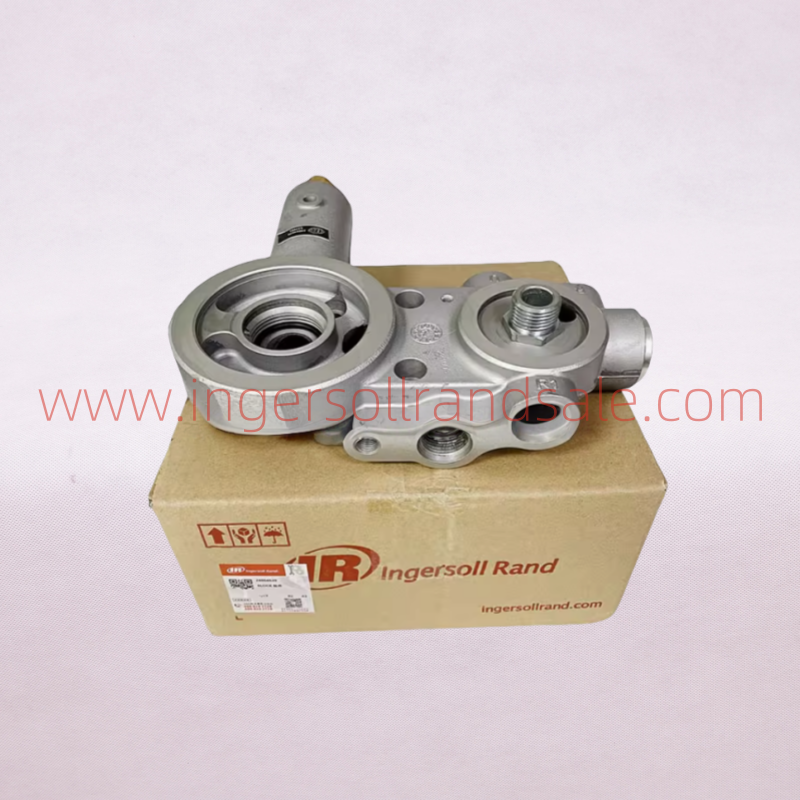

Genuine Ingersoll Rand assembly. A copy of a combined body has to get two functions right at once, and the thermostatic element is the part that usually does not survive being copied.


Genuine Ingersoll Rand: USD 350



Ordering notes


Replaces 22099352. Fits Ingersoll Rand screw compressors; send your model and serial so we can confirm the port layout.


Weight 3 kg. Lead time 3-4 weeks.
