24169013 Ingersoll Rand Screw Air Compressor Genuine Parts RBC120E(Ir) 110V Inlet Valve

No.24169013

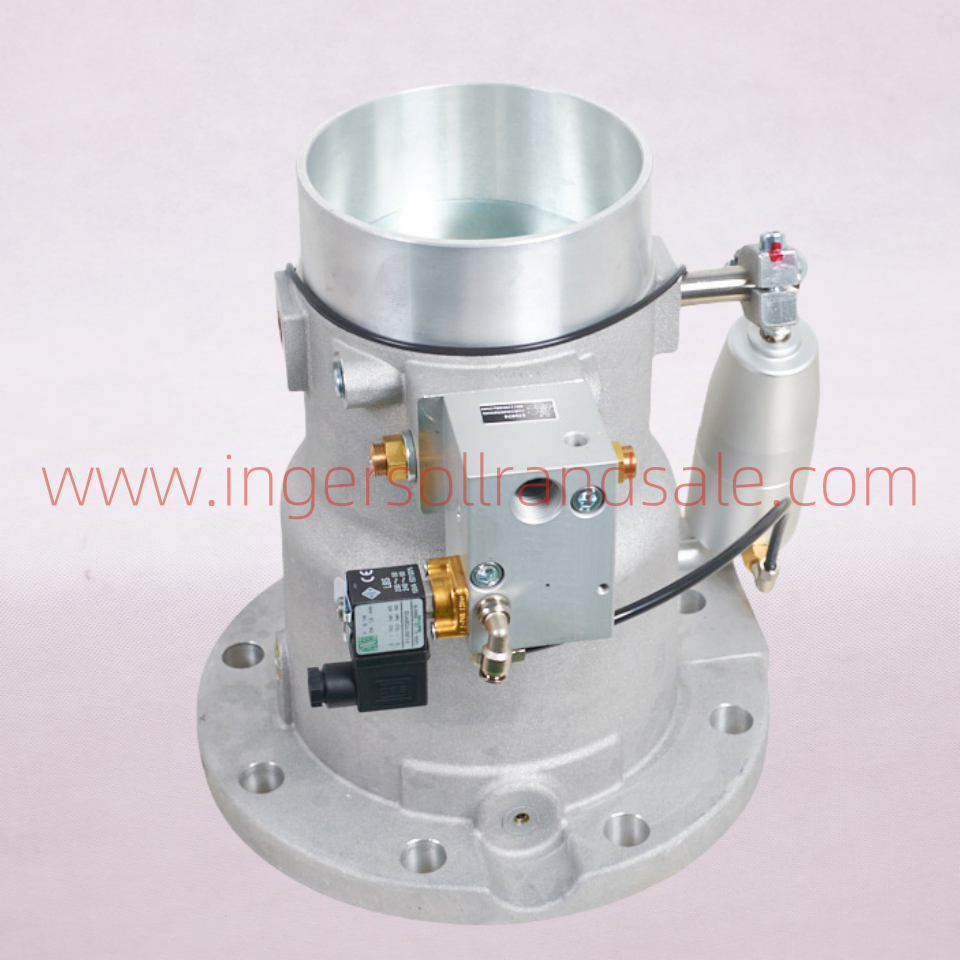

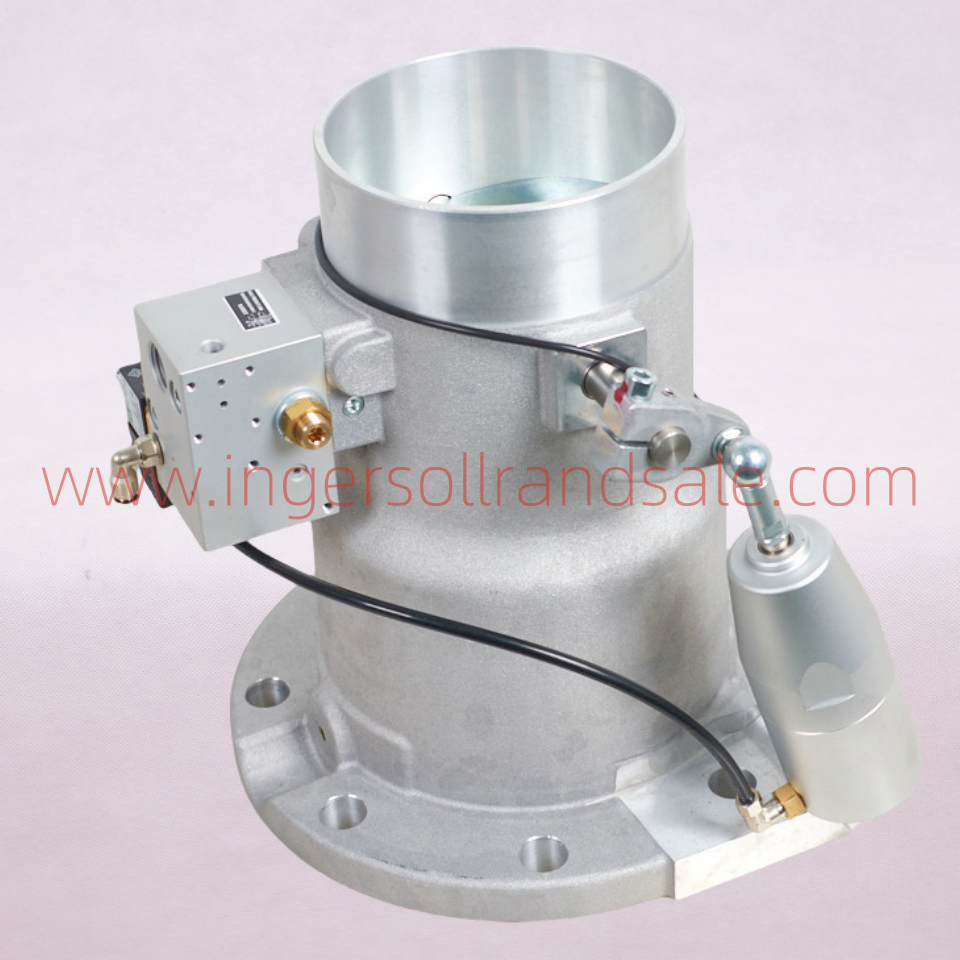

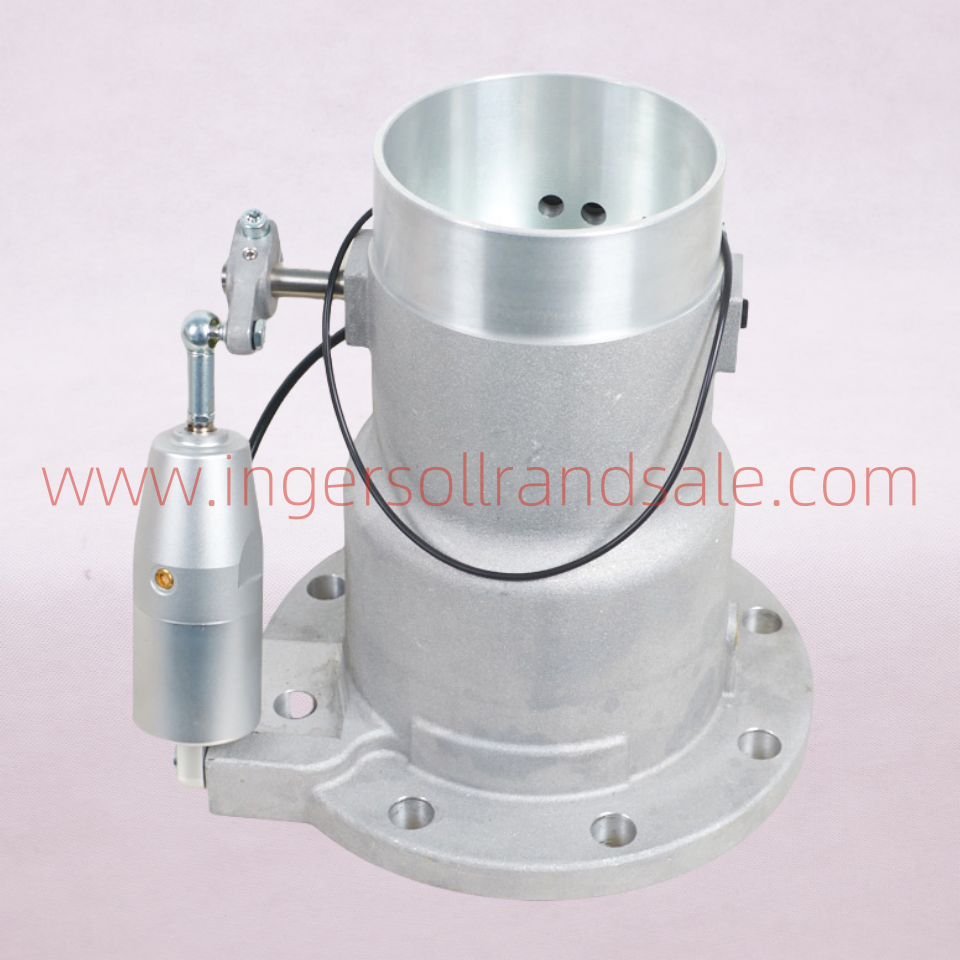

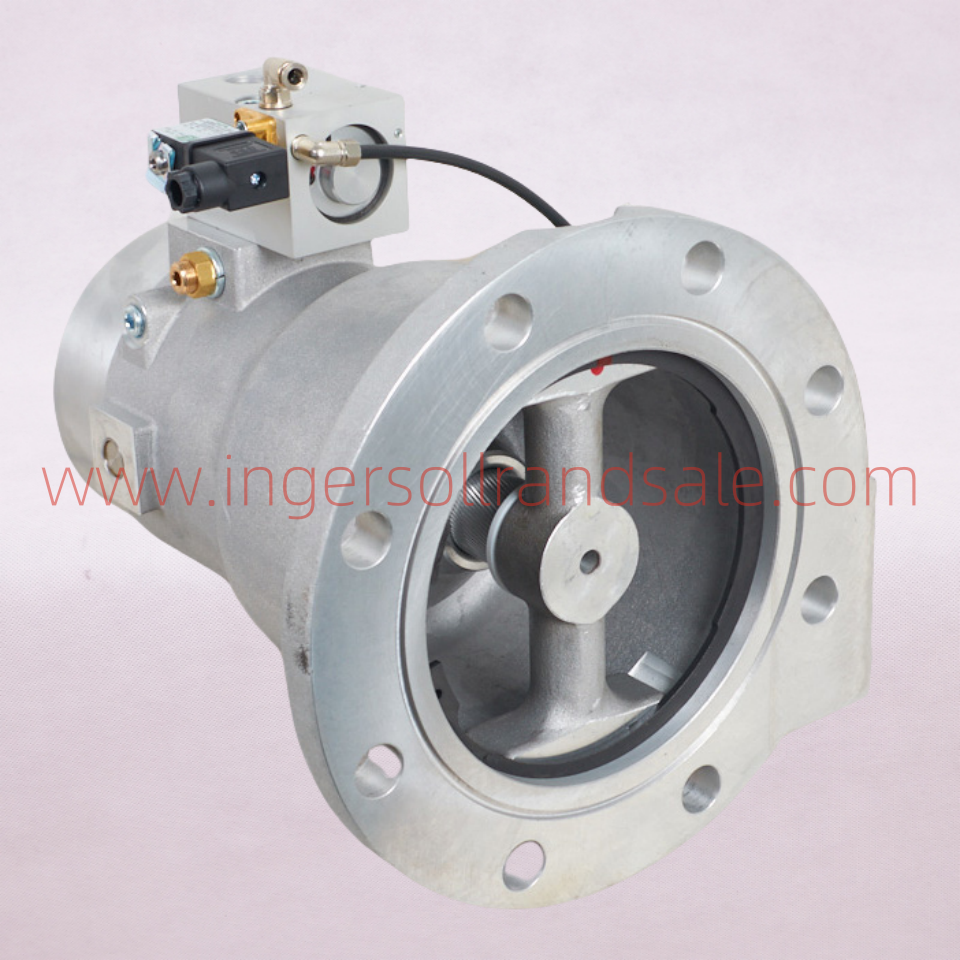

Genuine Ingersoll Rand E1V43 intake valve assembly, part 24048910 / 2.640.520.0925. 11 kg unit for V series 90-160 kW 50 Hz machines, 3-5 days.
$590.00
  • 24169013 Ingersoll Rand Screw Air Compressor Genuine Parts RBC120E(Ir) 110V Inlet Valve
  • 24169013 Ingersoll Rand Screw Air Compressor Genuine Parts RBC120E(Ir) 110V Inlet Valve
  • 24169013 Ingersoll Rand Screw Air Compressor Genuine Parts RBC120E(Ir) 110V Inlet Valve
  • 24169013 Ingersoll Rand Screw Air Compressor Genuine Parts RBC120E(Ir) 110V Inlet Valve
  • 24169013 Ingersoll Rand Screw Air Compressor Genuine Parts RBC120E(Ir) 110V Inlet Valve

Description

Part No 24048910 / 2.640.520.0925
Model E1V43
Brand Ingersoll Rand
Origin China
Weight 11 kg
HS Code 8414909090
Fits Ingersoll Rand V series 90-160 kW, 50 Hz
Lead time 3-5 days

What it does

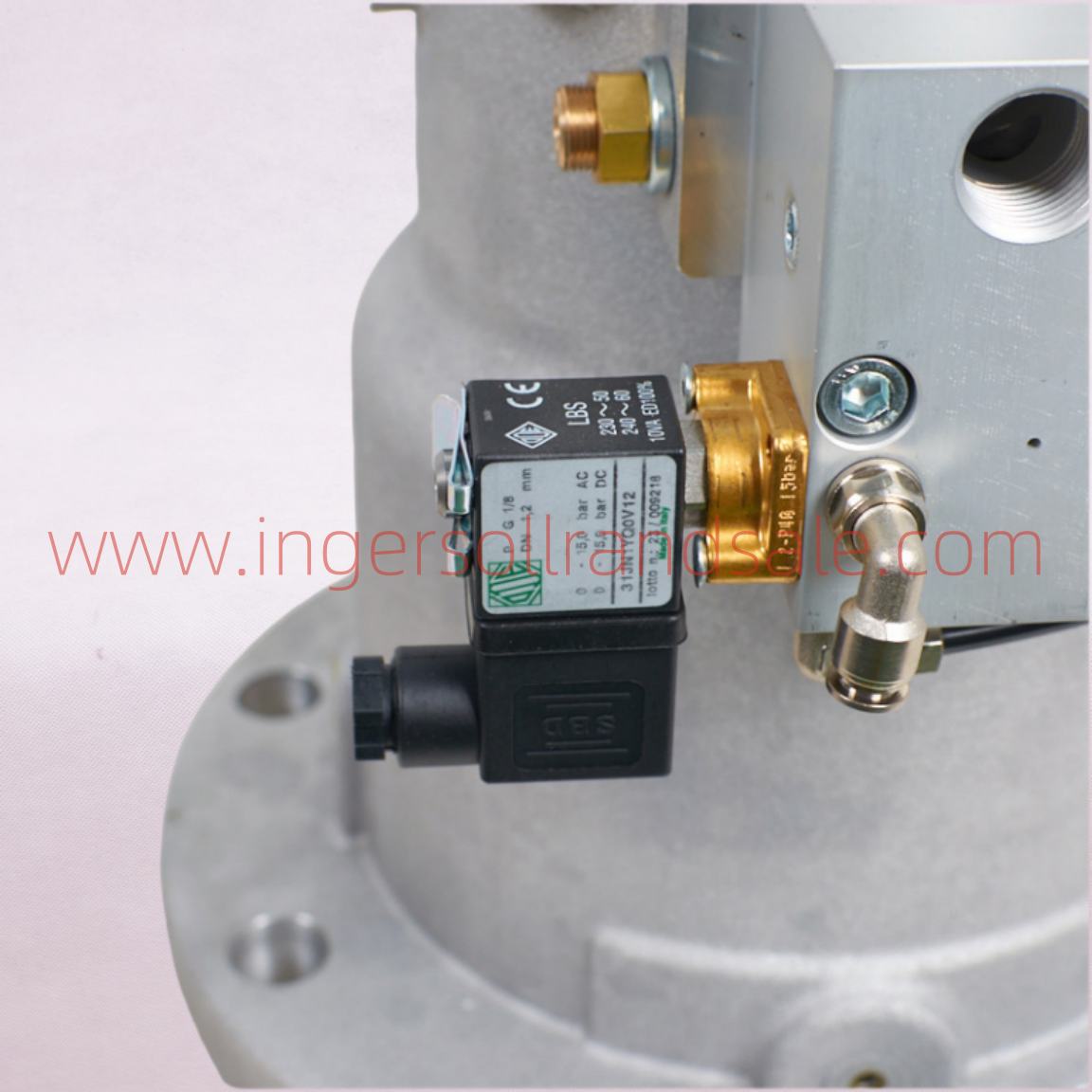

The inlet valve is the throat of the machine and the final element in capacity control. The controller compares system pressure with the set point, then works through the solenoid valve and the vent valve to open, close or partly close this valve. When demand rises, the servo cylinder pushes the valve open. When pressure reaches the set point, control air is reduced and the servo cylinder retracts until spring force and cylinder thrust balance, holding the valve partly open at the flow the system needs.

It also closes on shutdown, which is what lets the machine start without load. E1V43 is supplied as a complete assembly, so the body, the servo cylinder and the control ports arrive matched.

Signs it needs replacing

  • The machine will not build full pressure
  • Capacity control hunts: pressure rises and falls instead of holding
  • The valve does not close fully on shutdown, so the machine starts loaded
  • Air leaks at the shaft seal or at the servo cylinder breather
  • Valve plate wear visible on inspection, with a step worn into the seat

Replacement interval

Replace on condition. The seat and the shaft seal wear with every cycle, and a machine on frequent load and unload cycling wears them faster than one running at steady load. Inspect at 8,000 hours.

How to replace

  • Isolate the machine, depressurise the sump and vent the control air.
  • Photograph the control tubing before dismantling. The ports sit close together, and swapping two of them produces a valve that moves in the wrong direction.
  • Clean the mounting face. A distorted gasket face leaks air past the valve seat.
  • Check the servo cylinder bore and the shaft for scoring while the assembly is out.
  • Run a load and unload cycle and confirm the valve closes fully on shutdown before returning the machine to service.

Genuine vs alternative

Genuine Ingersoll Rand assembly. The cheaper route for this part is usually a rebuild kit rather than a copy: the body and the servo cylinder normally outlast the seat and the seals, so rebuilding keeps the original casting and the original port alignment.

Ordering notes

Fits Ingersoll Rand V series 90-160 kW, 50 Hz. Quote 24048910 / 2.640.520.0925 with the machine model and serial so we can confirm the correct assembly for your build.

Weight 11 kg. Lead time 3-5 days.
