23421217 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-17.5

No.23421217

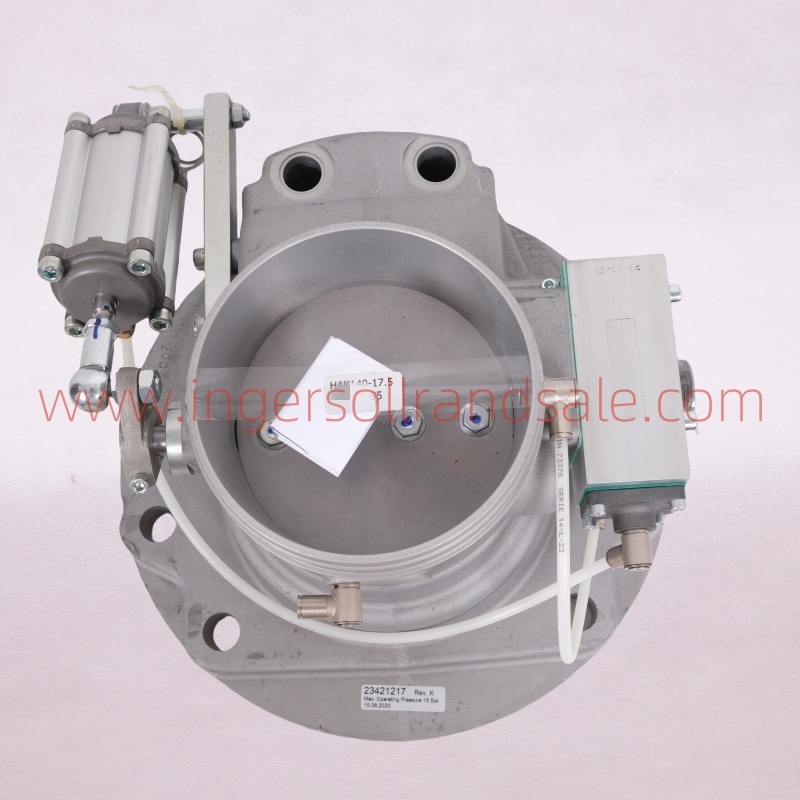

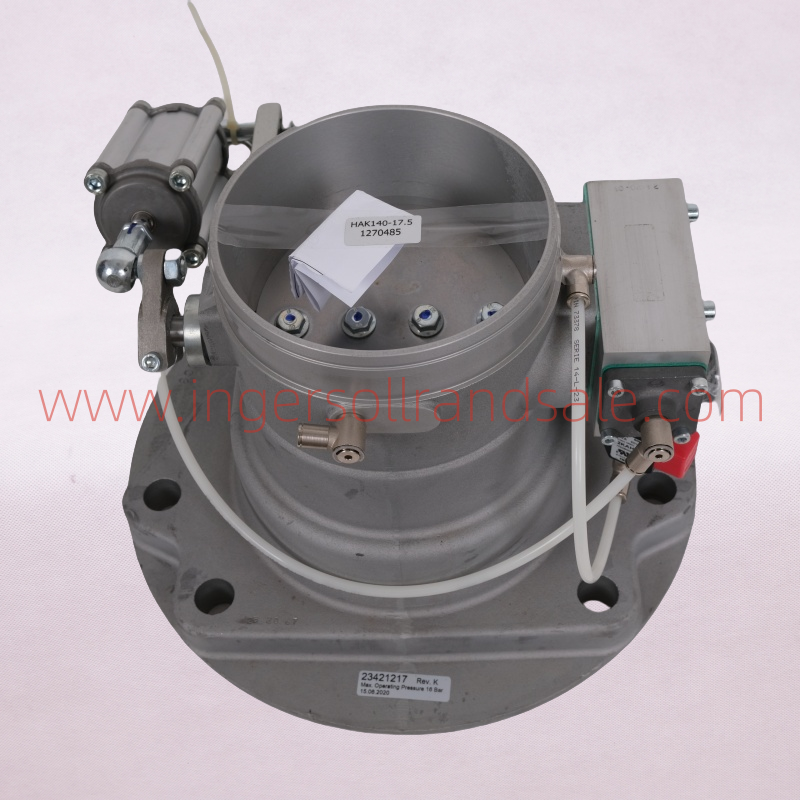

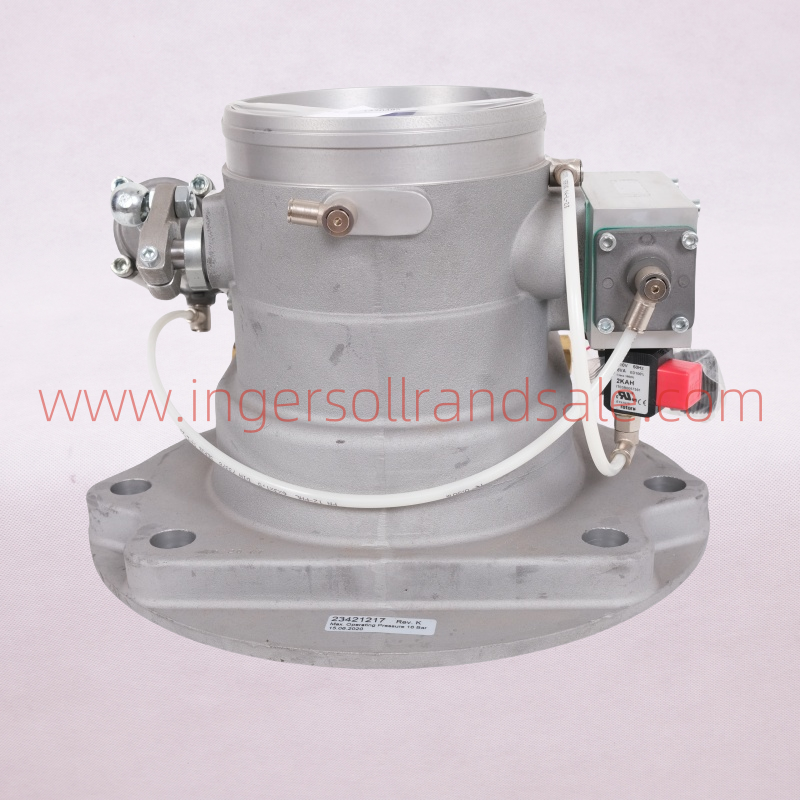

Ingersoll Rand inlet valve 23421217, model HAK140-17.5. 17 kg unit for R132-160I/N screw compressors. Also listed as Hoerbiger 1270485. In stock at USD 680.
$680.00
  • 23421217 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-17.5
  • 23421217 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-17.5
  • 23421217 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-17.5
  • 23421217 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-17.5
  • 23421217 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-17.5

Description

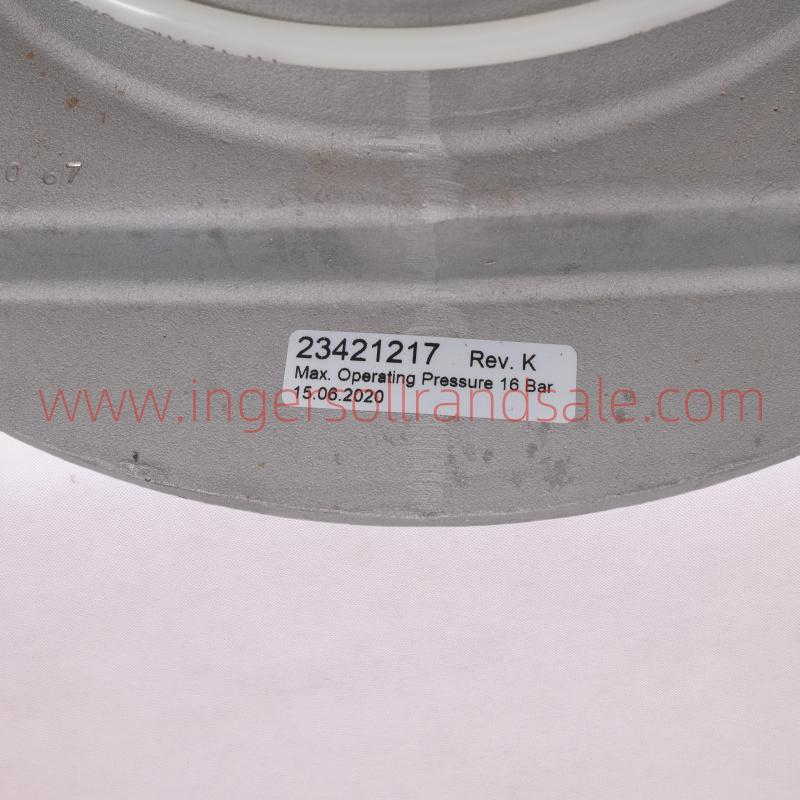

Part No 23421217
Cross reference 1270485
Model HAK140-17.5
Brand Ingersoll Rand
Origin China
Weight 17 kg
Dimensions 53 × 40 × 30 cm
HS Code 8414909090
Fits Ingersoll Rand R132-160I / R132-160N
Lead time In stock

What it does

The inlet valve is the throttle of the machine: it decides how much air enters the airend, and the controller strokes it to hold a pressure band instead of running flat out. It closes on shutdown so the machine can start without load.

HAK140-17.5 is the large-frame version, 17 kg and roughly 53 × 40 × 30 cm, used on R132-160 machines. At this size the valve carries a substantial airflow and the seat area is correspondingly large, which is why seat wear shows up as a pressure shortfall rather than as a leak.

Signs it needs replacing

  • The machine tops out below its rated pressure, or takes noticeably longer to reach it
  • Load and unload cycling becomes rapid with steady demand
  • The valve does not seat on shutdown, so the machine restarts loaded and the starter labours
  • Air audible at the shaft seal with the machine running unloaded
  • A visible step or polish mark on the seat when the valve is opened for inspection

Replacement interval

Replace on condition. Seat wear follows cycle count rather than running hours, so a machine on variable demand wears the valve faster than one running flat out. Inspect at 8,000 hours.

How to replace

  • Isolate and lock off, depressurise the sump and vent the control air. At 17 kg the valve needs support during removal, so plan the lift before undoing anything.
  • Photograph the control tubing. The ports are close together and two lines crossed gives a valve that strokes the wrong way.
  • Clean the mounting face and fit a new gasket. On a seat this large, a distorted face leaks across a wide area and the symptom looks like a worn seat.
  • Check the servo cylinder and the shaft for scoring while the valve is off.
  • Run through load and unload, then confirm full closure on stop before releasing the machine.

Cross reference

This valve is listed under two part numbers: the Ingersoll Rand number 23421217 and the Hoerbiger number 1270485. They are the same HAK140-17.5 inlet valve. Which number you find depends on which catalogue your machine was documented against, so order by whichever one appears in your parts book.

Both numbers are stocked here at the same price.

Ordering notes

Fits Ingersoll Rand R132-160I and R132-160N. Send the machine model and serial before ordering, since the I and N variants differ in build and the port arrangement follows the variant.

Weight 17 kg, packed 53 × 40 × 30 cm. In stock.
