22517775 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Separator

No.22517775
Oil separator element for Ingersoll Rand air compressors. Coalescing separation of oil from compressed air. Part number 22517775.
$225.00
  • 22517775 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Separator
  • 22517775 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Separator
  • 22517775 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Separator
  • 22517775 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Separator
  • 22517775 Ingersoll Rand Screw Air Compressor Genuine Parts Oil Separator

Description

What it does

The oil separator is where the compressor stops being an oil pump. Air leaving the airend carries oil as an aerosol; the element coalesces those droplets on glass-fibre media and lets them drain back to the sump through the scavenge line. Carryover after the element is measured in parts per million, so a failing element shows up as oil in the line rather than as a visible leak.

Signs it needs replacing

  • Oil consumption rising with no visible external leak.
  • Oil mist or a blue haze at the blowdown, or oil collecting in the downstream dryer.
  • Coalescing filters downstream loading far faster than their normal interval.

Fitment and specifications

  • Part number: 22517775
  • Type: Oil separator element
  • Service life: 3,000-4,000 running hours, changed together with the air filter, oil filter and oil charge
  • Application: Ingersoll Rand air compressor
  • HS code: 8414909090

Before you order

Check the minimum pressure valve and the scavenge line orifice before blaming the element: a blocked return line produces exactly the same oil-carryover symptom, and a new element will not fix it. Match the element by part number and by height, since two elements can share a diameter.

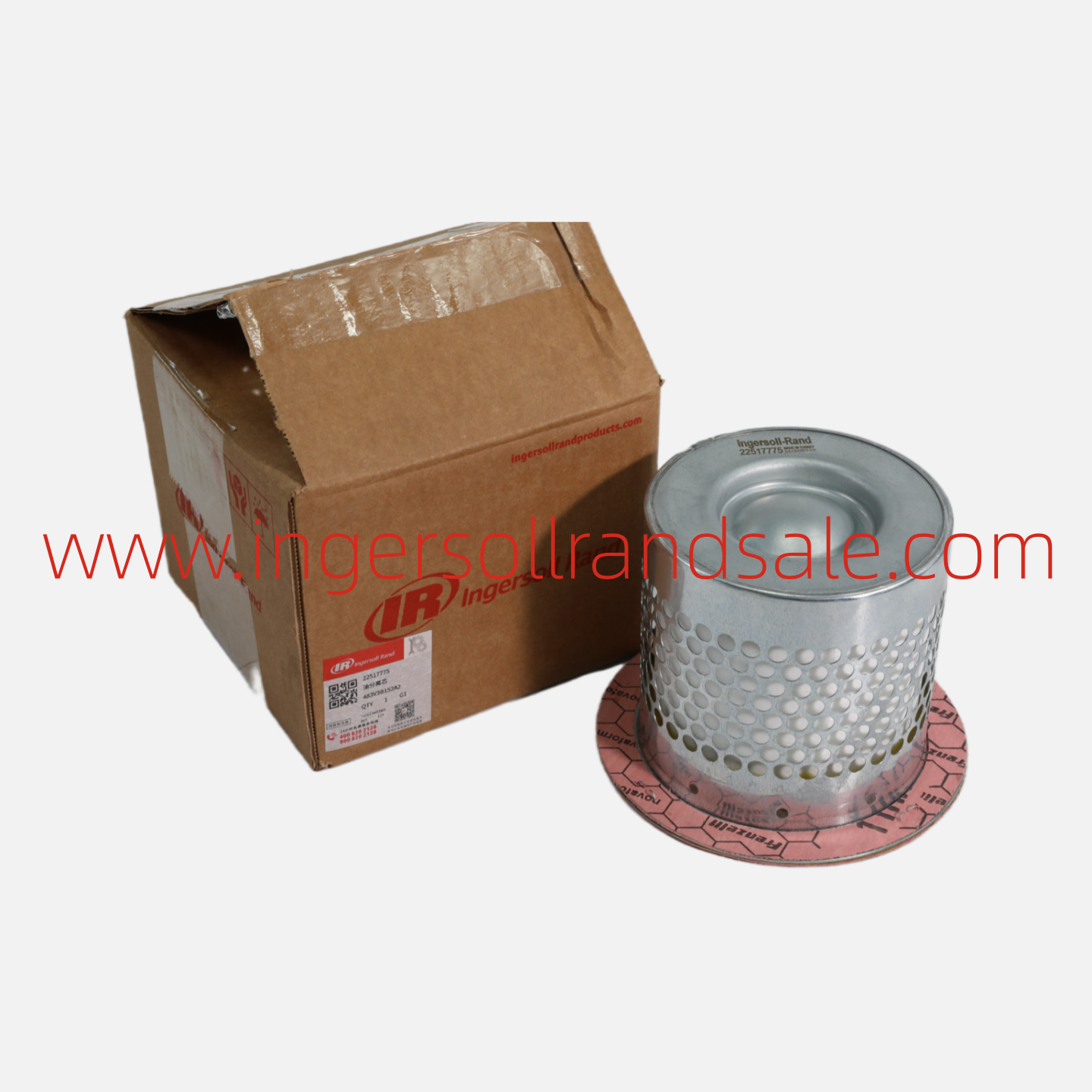

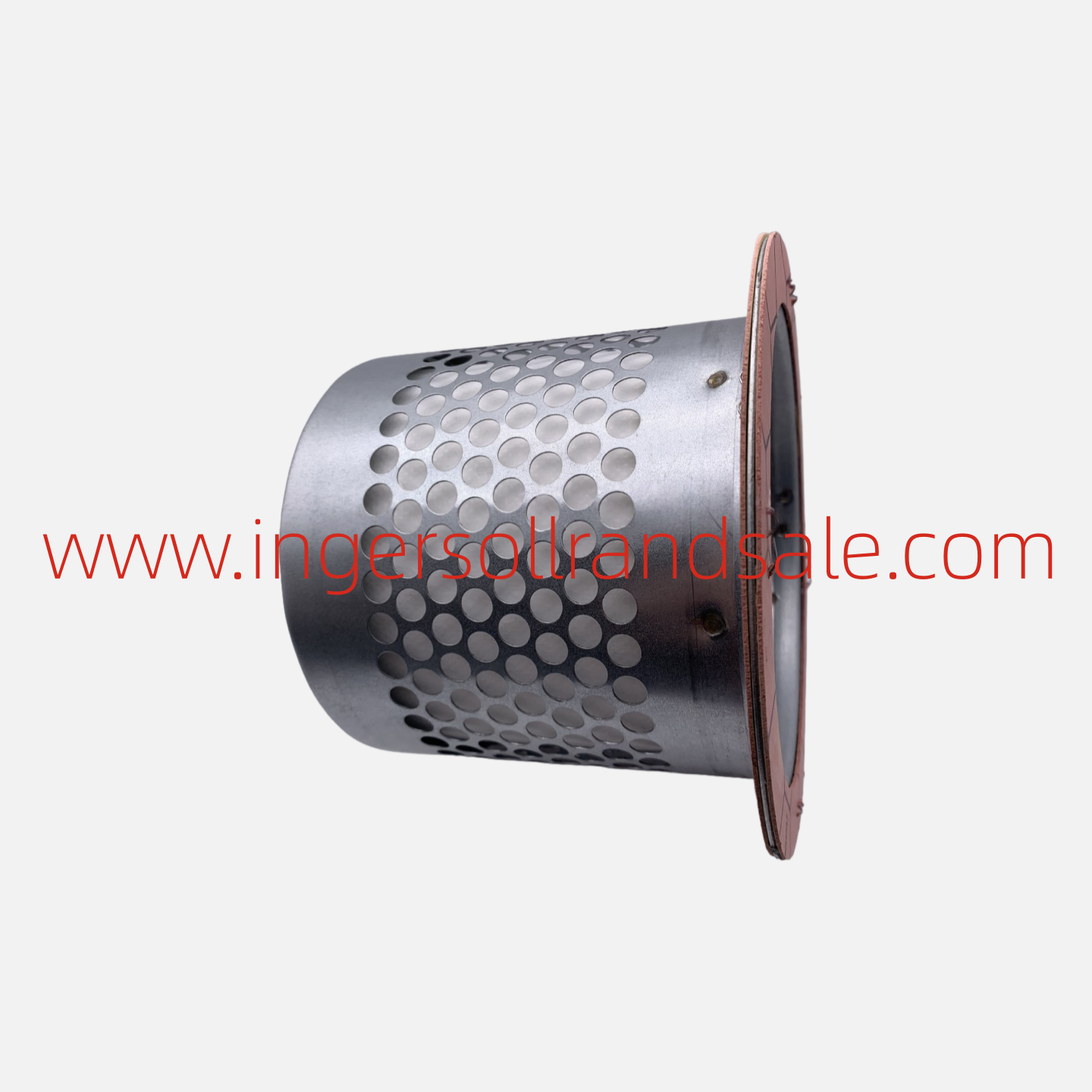

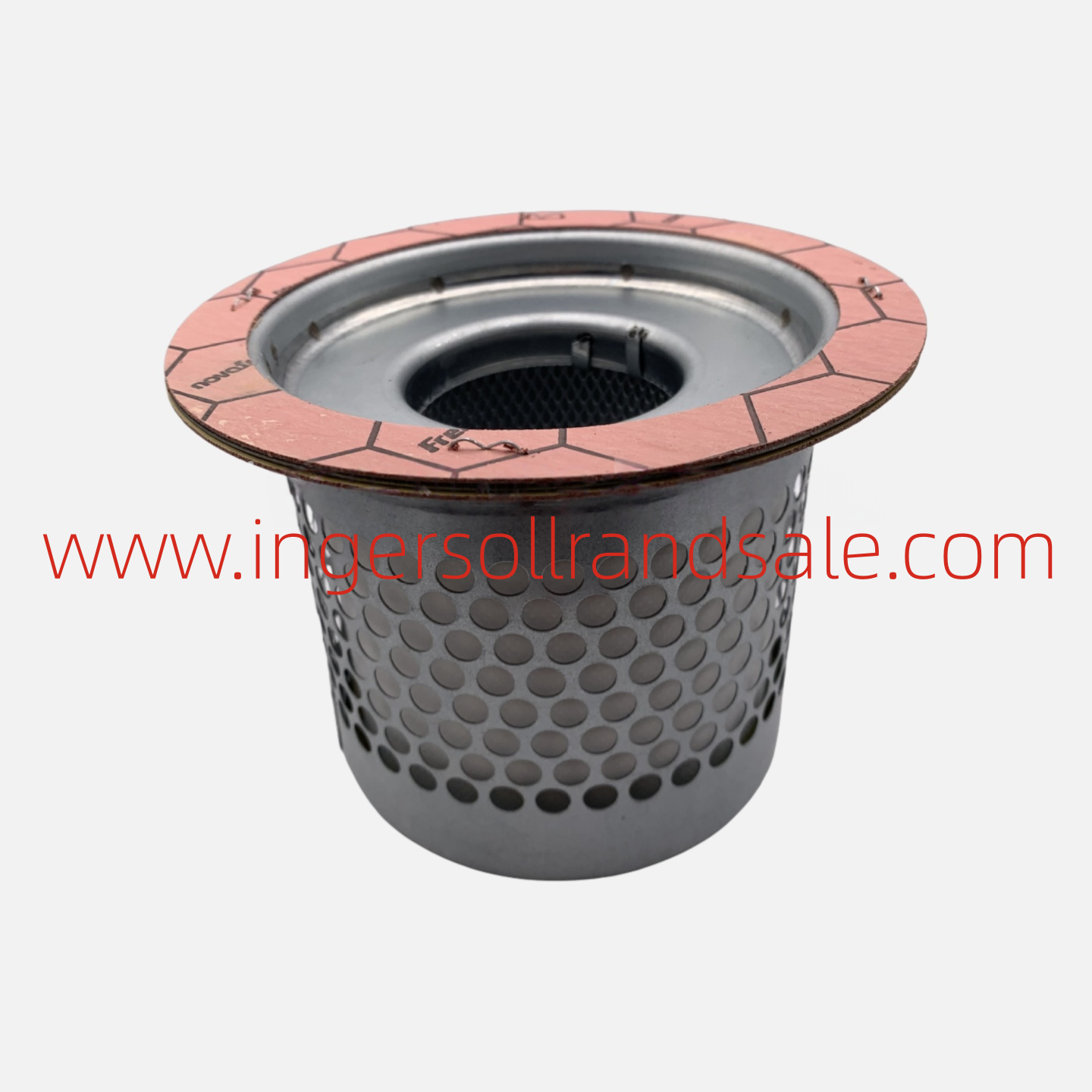

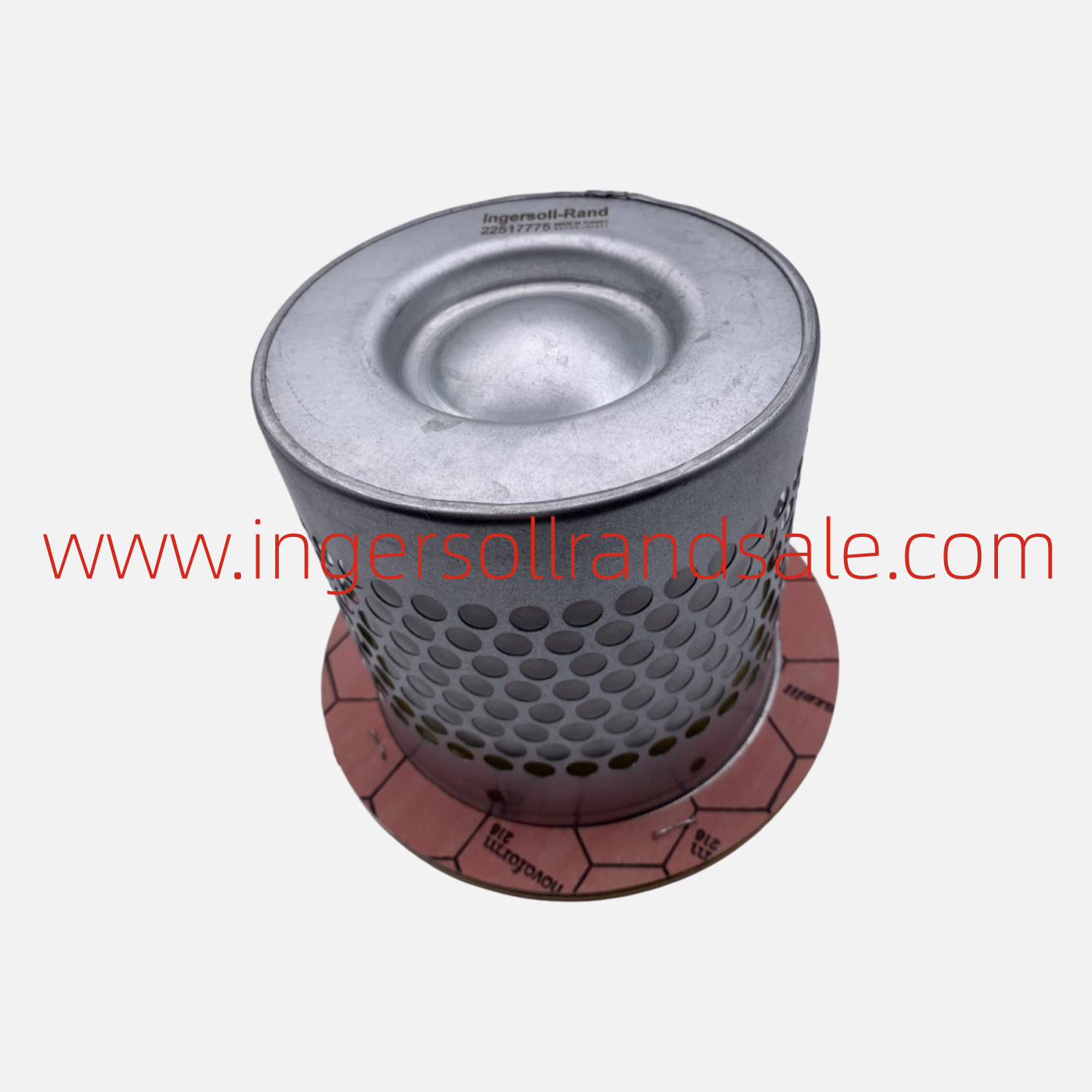

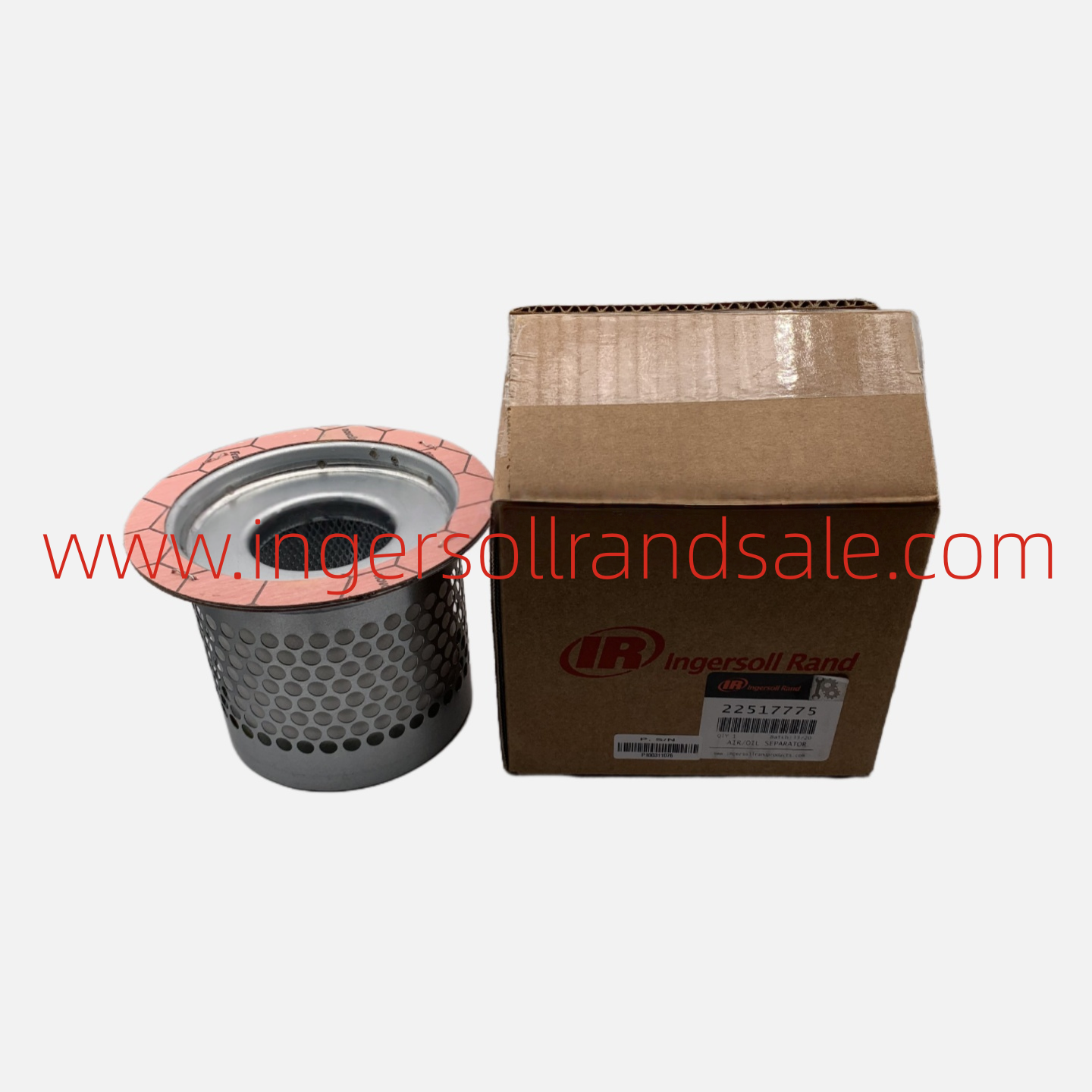

Product photos
