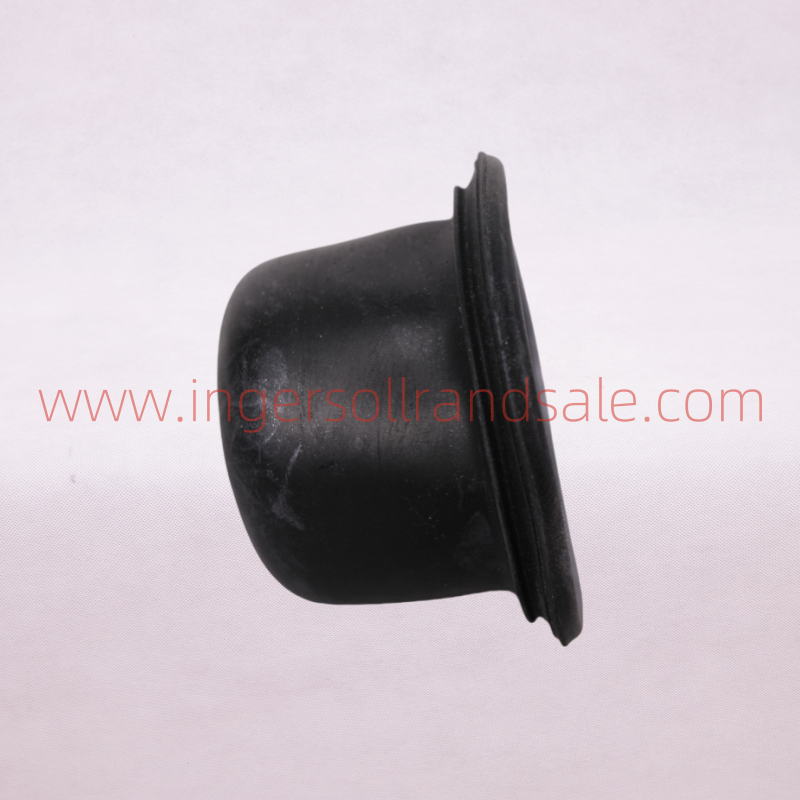

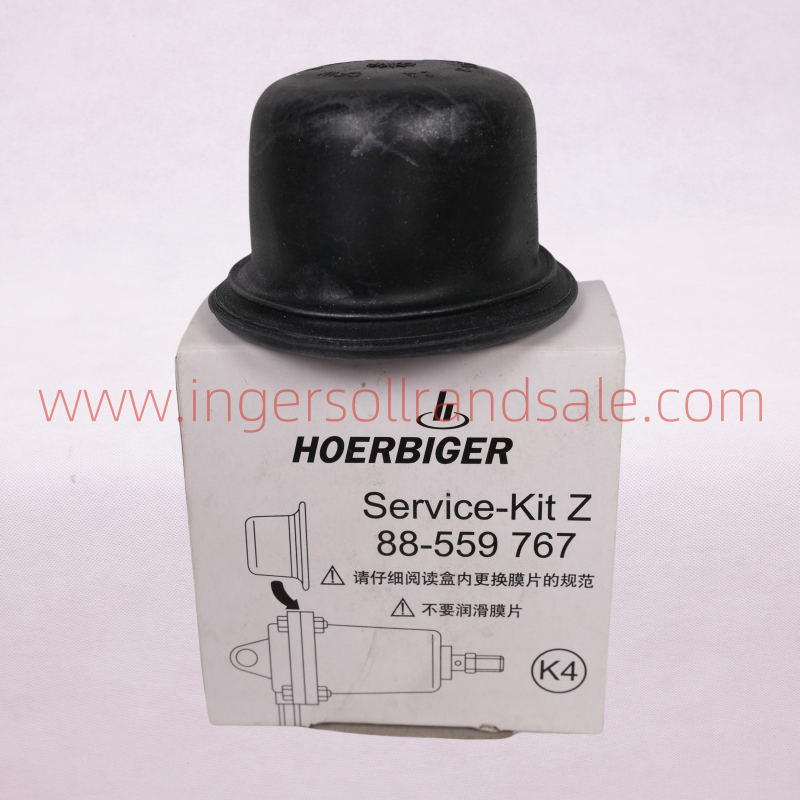

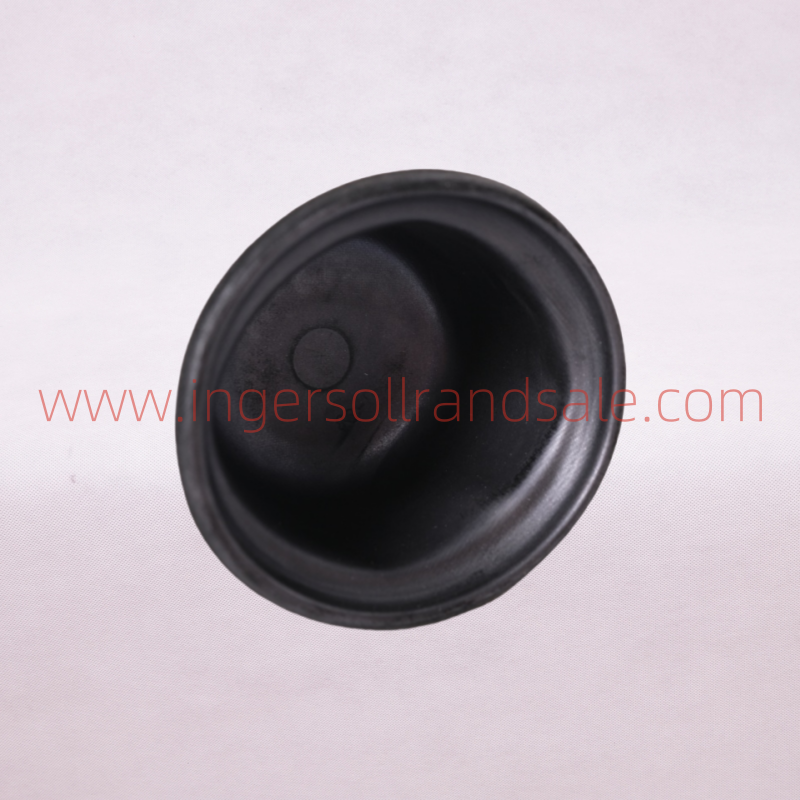

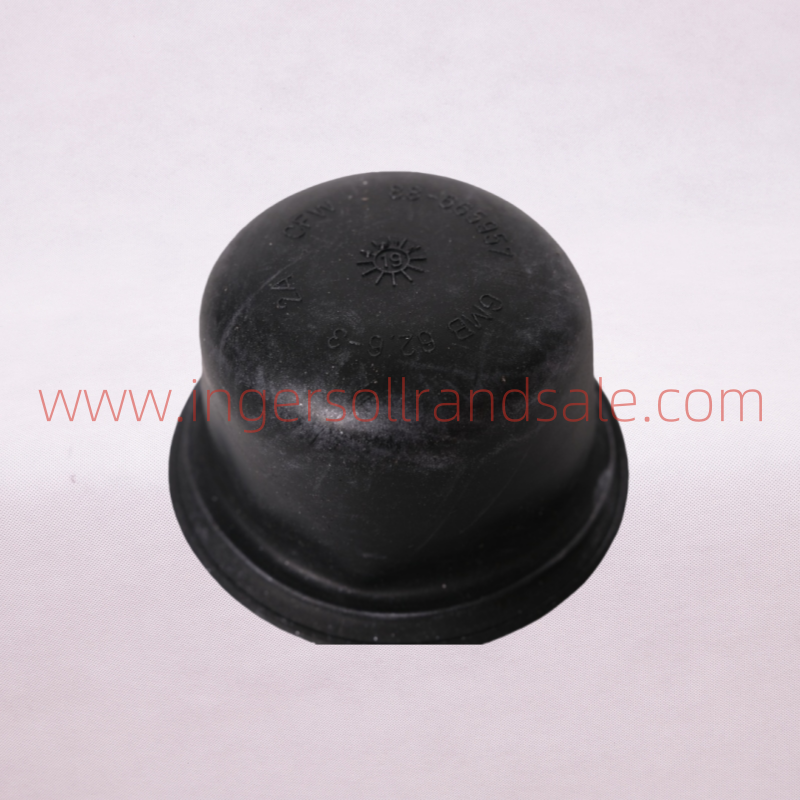

143640 Hoerbiger Air Compressor OEM Parts Servo Cylinder Diaphragm(88-665957)

No.143640
Hoerbiger servo cylinder diaphragm 143640, replaces 88-665957. 0.1 kg elastomer diaphragm for the inlet valve actuator. In stock, USD 39.
$35.00
  • 143640 Hoerbiger Air Compressor OEM Parts Servo Cylinder Diaphragm(88-665957)
  • 143640 Hoerbiger Air Compressor OEM Parts Servo Cylinder Diaphragm(88-665957)
  • 143640 Hoerbiger Air Compressor OEM Parts Servo Cylinder Diaphragm(88-665957)
  • 143640 Hoerbiger Air Compressor OEM Parts Servo Cylinder Diaphragm(88-665957)
  • 143640 Hoerbiger Air Compressor OEM Parts Servo Cylinder Diaphragm(88-665957)

Description

Part No 143640
Supersedes 88-665957
Brand Hoerbiger
Origin China
Weight 0.1 kg
Dimensions 7 × 7 × 5 cm
HS Code 8414909090
Fits 88-665957 servo cylinder
Lead time In stock

What it does

The diaphragm is the moving seal inside the servo cylinder that strokes the inlet valve. Control air pushes against it and it turns that pressure into valve movement. It is the part that flexes every time the machine loads or unloads.

143640 replaces 88-665957. At 0.1 kg it is the cheapest part in the inlet control chain, and the one that stops the chain working.

Signs it needs replacing

  • The inlet valve responds slowly or does not reach full open
  • Load and unload cycles become erratic with no change in air demand
  • Air leaks at the cylinder breather
  • The machine will not build full pressure
  • Oil or water in the control air, which attacks the diaphragm from the inside

Replacement interval

Replace on condition. The diaphragm ages with every stroke rather than with hours in service, so a machine on frequent cycling wears it faster than one running at steady load. Inspect at 8,000 hours.

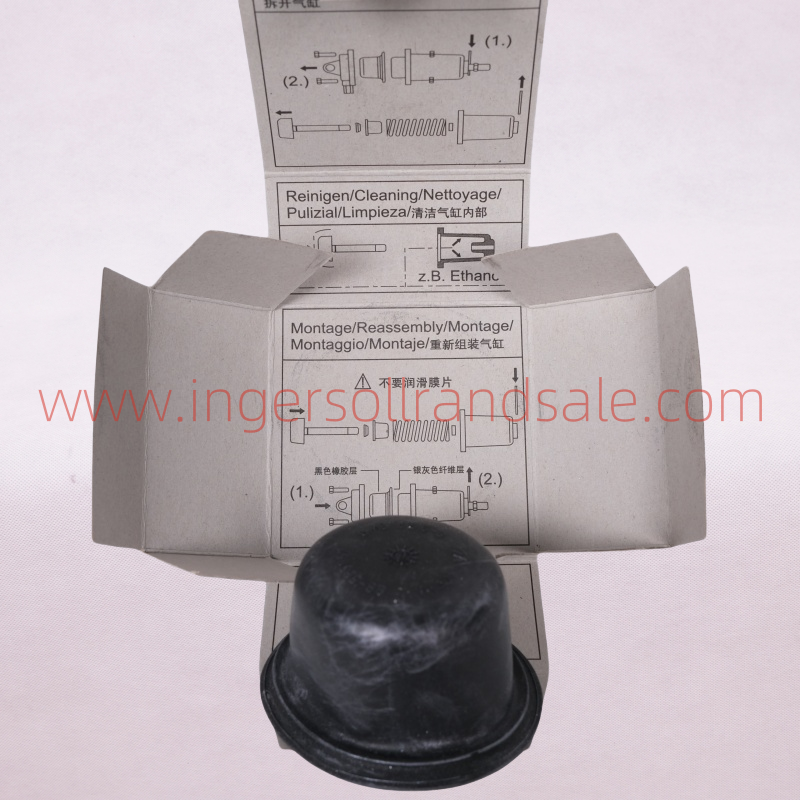

How to replace

  • Isolate and vent the control air before opening the cylinder.
  • Mark the diaphragm orientation. Fitted reversed, it gives a valve that moves but does not seal.
  • Check the cylinder bore for scoring while it is open. A scored bore destroys a new diaphragm quickly.
  • Do not pack the diaphragm with grease. Use the same oil the machine runs on, sparingly.
  • Cycle the valve through load and unload before putting the machine back in service.

Genuine vs alternative

Genuine Hoerbiger diaphragm. The elastomer matters more than the shape: a copy in the wrong compound hardens within months and starts leaking at the cylinder breather.

Hoerbiger: USD 39

Ordering notes

Replaces 88-665957. Send the machine model with the part number so we can confirm the diaphragm matches your servo cylinder.

Weight 0.1 kg, packed 7 × 7 × 5 cm. In stock.
