ATF23027 Ingersoll Rand Screw Air Compressor Genuine Parts Vent Valve VVF12

No.ATF23027

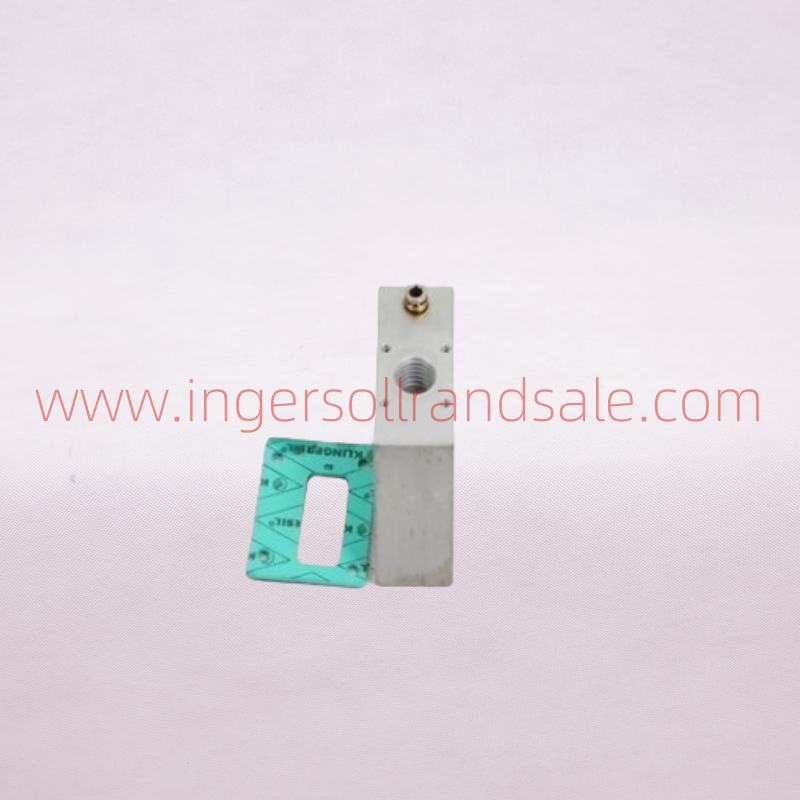

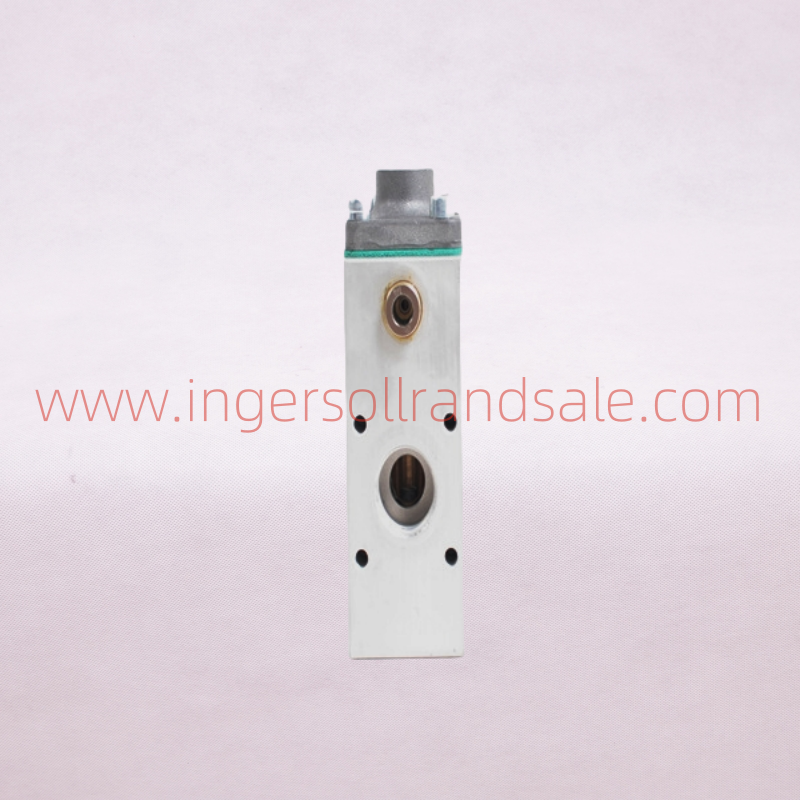

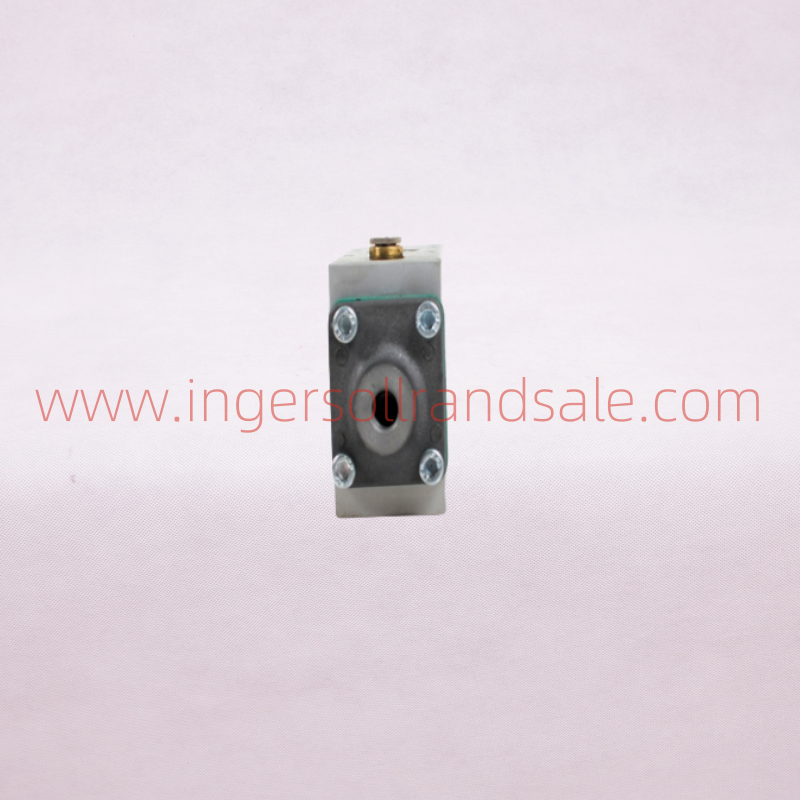

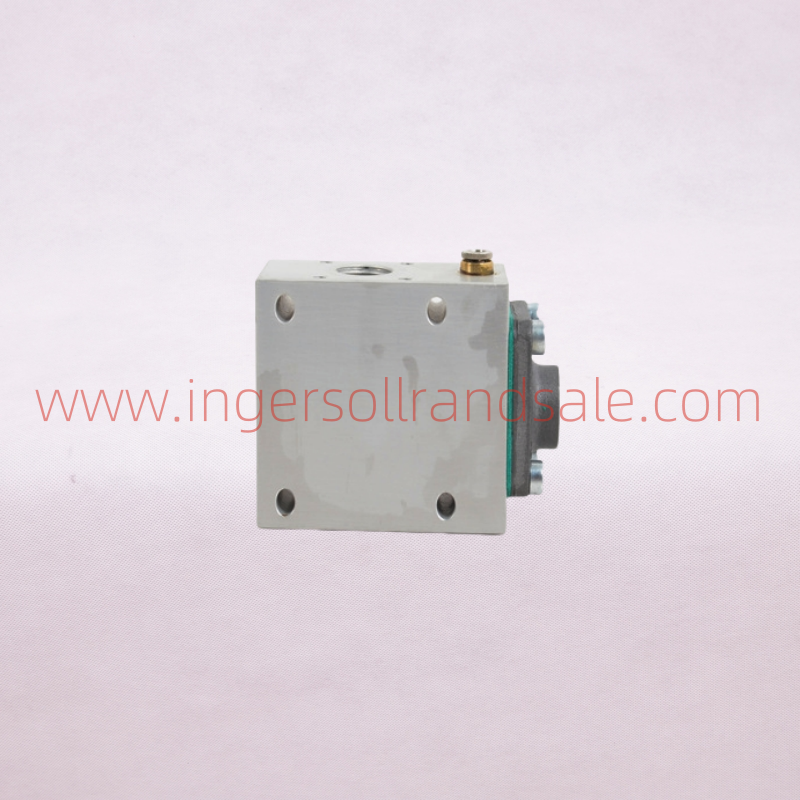

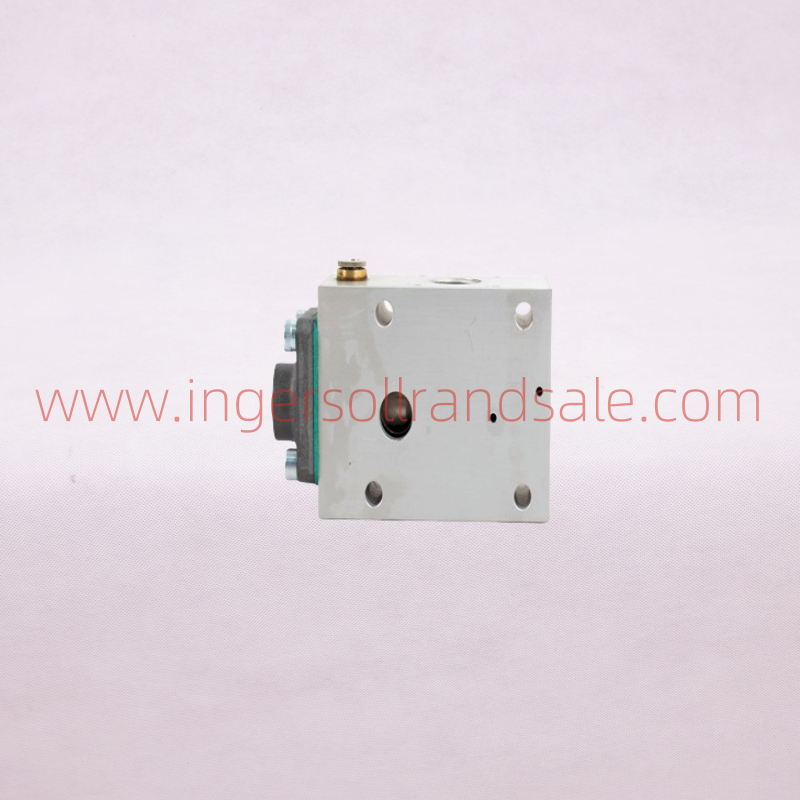

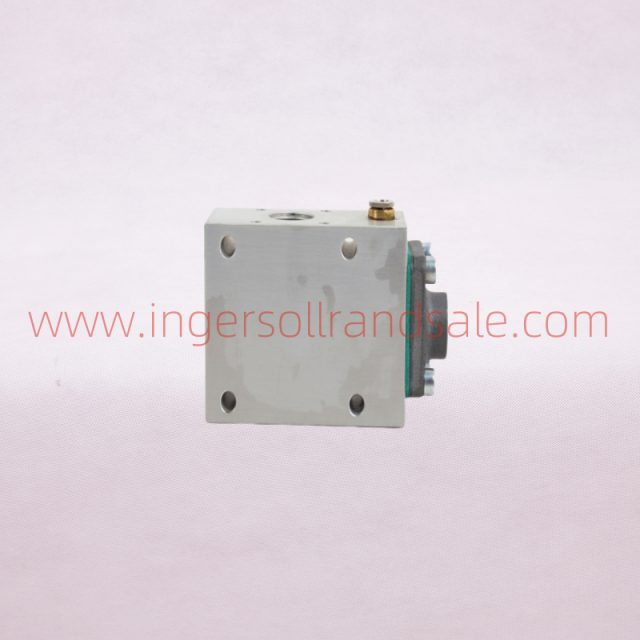

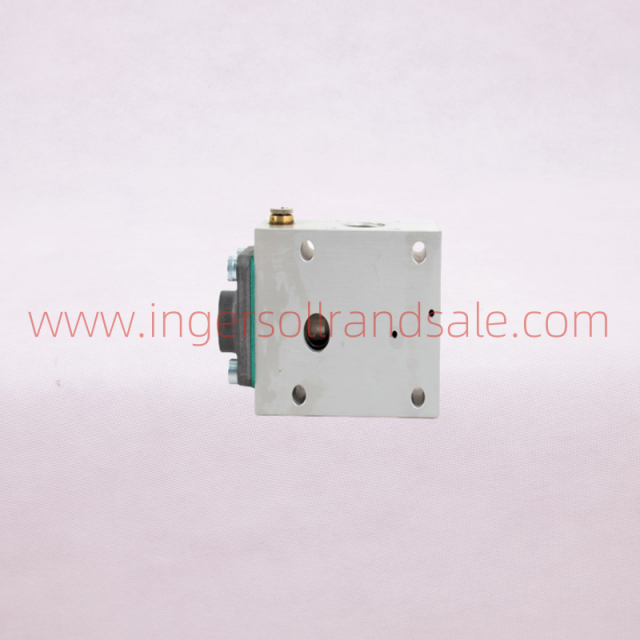

Vent valve module VVF12, part ATF23027, 1 kg. The same module is sold under 1871555.

$290.00
  • ATF23027 Ingersoll Rand Screw Air Compressor Genuine Parts Vent Valve VVF12
  • ATF23027 Ingersoll Rand Screw Air Compressor Genuine Parts Vent Valve VVF12
  • ATF23027 Ingersoll Rand Screw Air Compressor Genuine Parts Vent Valve VVF12
  • ATF23027 Ingersoll Rand Screw Air Compressor Genuine Parts Vent Valve VVF12
  • ATF23027 Ingersoll Rand Screw Air Compressor Genuine Parts Vent Valve VVF12

Description

Part information

Part No

ATF23027

Brand

Ingersoll Rand

Origin

China

Weight

1 kg

Dimensions

15*10*10 cm

HS Code

8414909090

Cross reference

1871555

Lead time

In stock

What it does

The vent valve releases control air so the inlet valve can close when the machine unloads or stops. Without it the inlet stays partly open and the machine keeps making air against a closed discharge.

Signs it needs replacing

  • Machine slow to unload, or pressure continuing to climb after unload.
  • Air audible at the vent continuously, with pressure not holding at part load.
  • Oil mist from the vent port.

Replacement interval

On condition. Replace when unloading becomes slow or the vent leaks continuously.

How to replace

  • Isolate and depressurise the control air before removing the module.
  • Check the small filter screen in the module - a blocked screen mimics a failed valve.
  • Refit with new seals and confirm the machine unloads within the normal time.

Why genuine

Original VVF12 module with the vent orifice sized for this control circuit. A module with the wrong orifice either vents too slowly, so the machine lags on unload, or too fast, so it cannot hold part-load pressure.

Ordering notes

Also sold as 1871555 - either number gets the same module. In stock.
