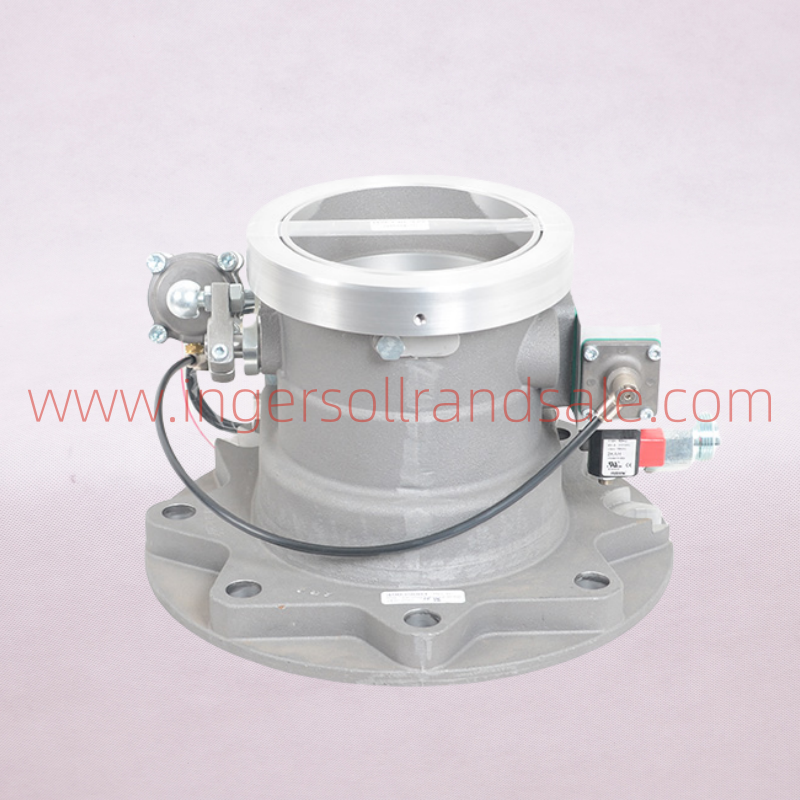

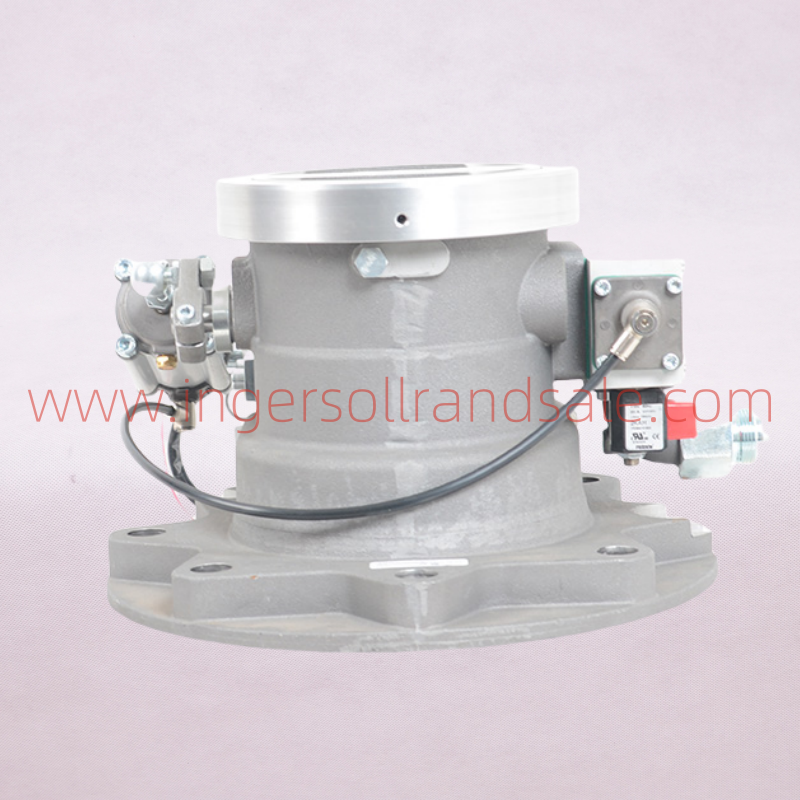

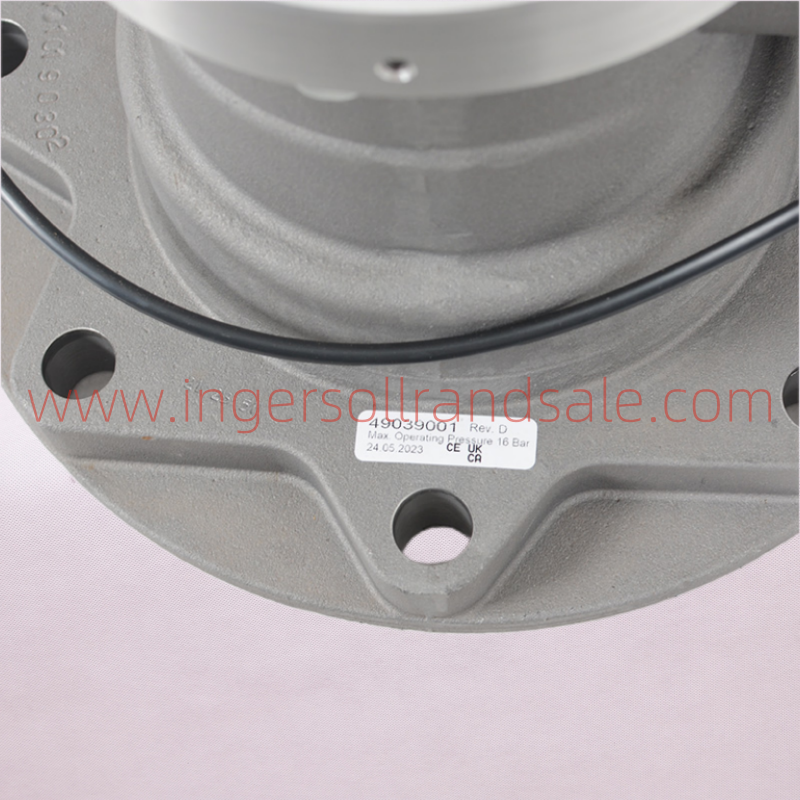

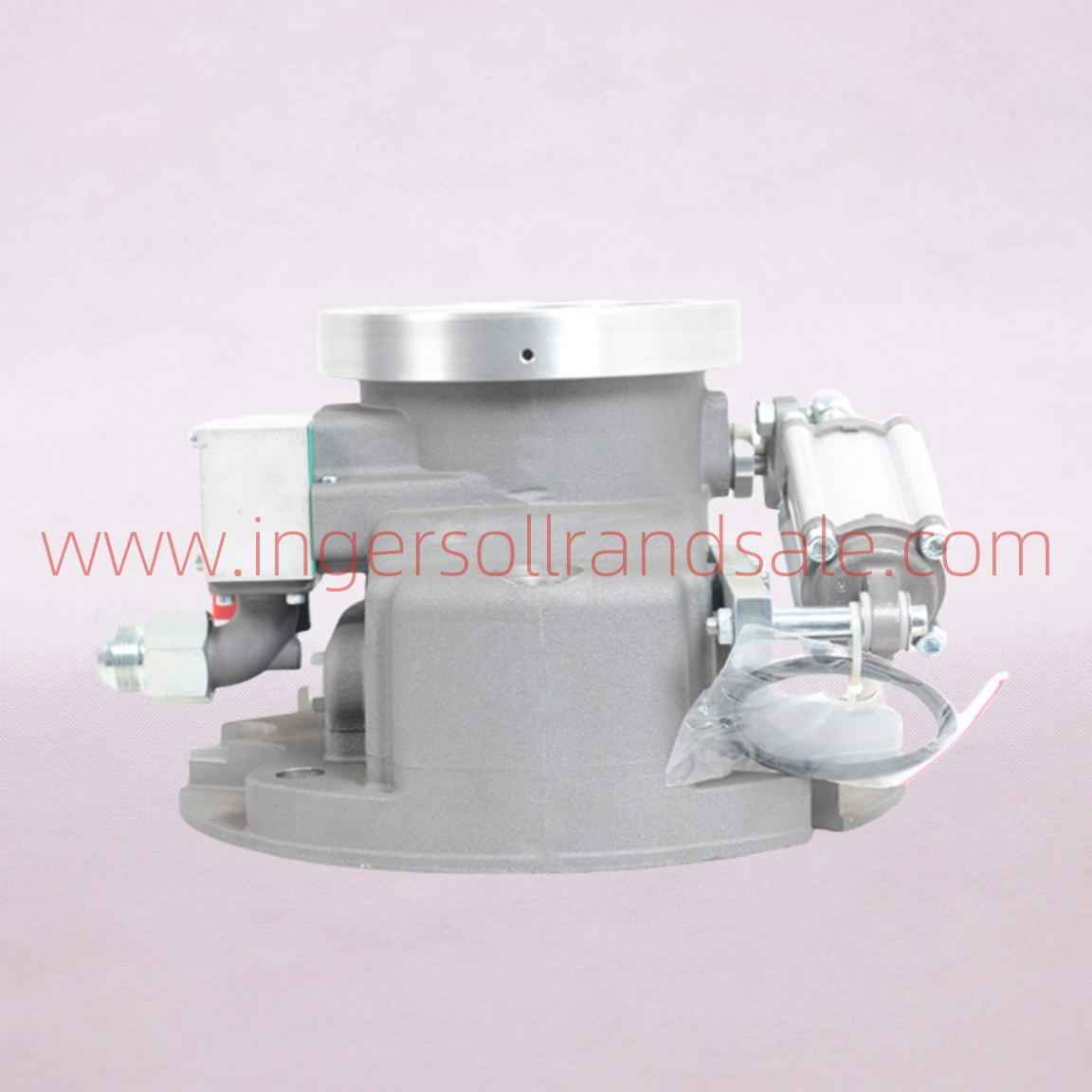

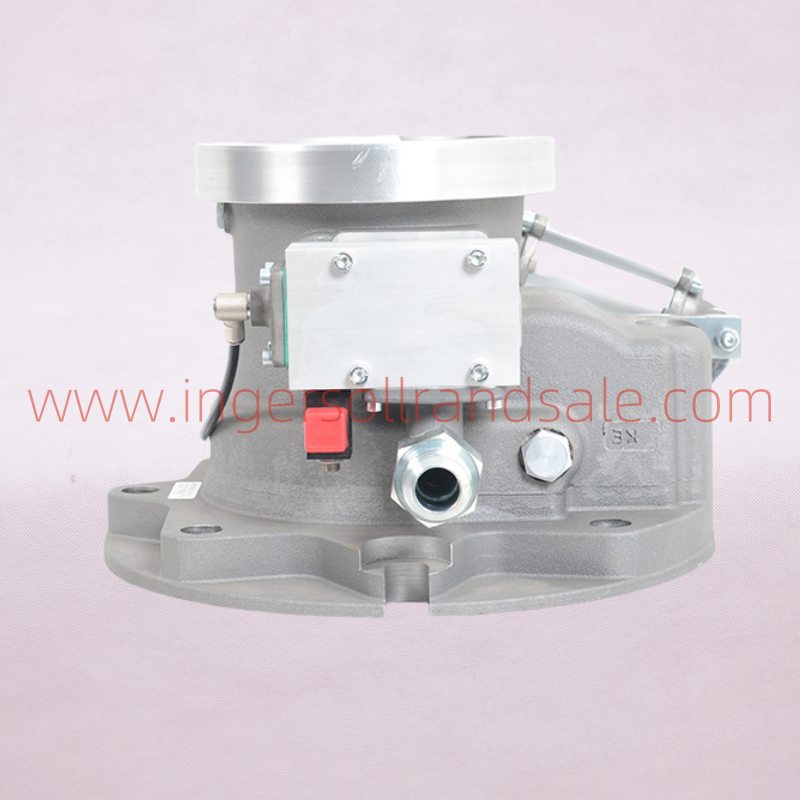

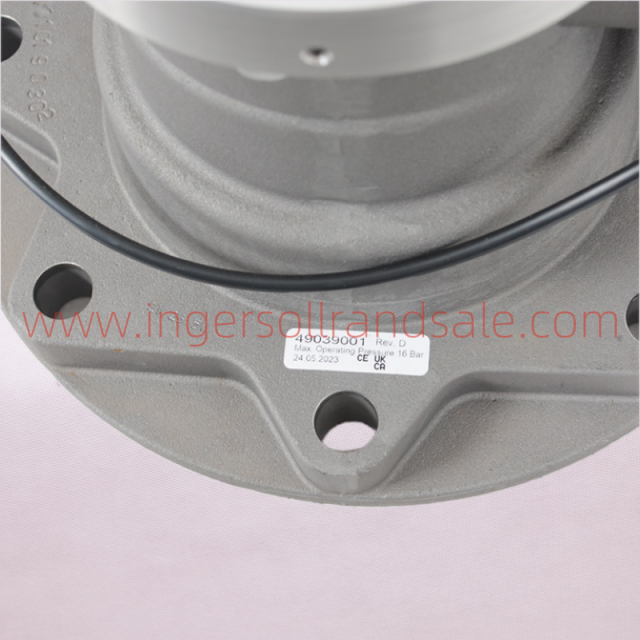

49039001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-999

No.49039001

Inlet valve 49039001, HAK140-999, 18 kg. Supersedes 47643353001.

$999.00
  • 49039001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-999
  • 49039001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-999
  • 49039001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-999
  • 49039001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-999
  • 49039001 Ingersoll Rand Screw Air Compressor Genuine Parts Inlet Valve HAK140-999

Description

Part information

Part No

49039001

Model

HAK140-999

Brand

Ingersoll Rand

Origin

China

Weight

18 kg

Dimensions

55*40*30 cm

HS Code

8414909090

Lead time

In stock

What it does

A proportional intake valve: it opens and closes to match demand, so the machine holds pressure at part load with the motor running at constant speed.

Signs it needs replacing

  • Delivery pressure short of the set point when demand is at maximum.
  • Valve hunting - pressure rising and falling around the set point.
  • Oil mist at the actuator, or the valve staying open after stop.

Replacement interval

On condition. Inspect at 8,000 hours and at major service; replace when the seat or actuator is worn.

How to replace

  • Depressurise the receiver and control line, confirm zero before opening.
  • Note the actuator orientation before removal - the arm can be refitted one spline out.
  • Renew gaskets and check the full stroke by hand before starting.

Why genuine

Original HAK140-999 with the actuator calibrated to this frame. The valve is a control element, not just a shutter, so the actuator travel and spring rate decide whether the machine settles at part load or keeps correcting itself.

Ordering notes

47643353001 is the earlier number. Send a photo of the existing valve or the machine nameplate with the order, as the same casting is used with more than one actuator.
